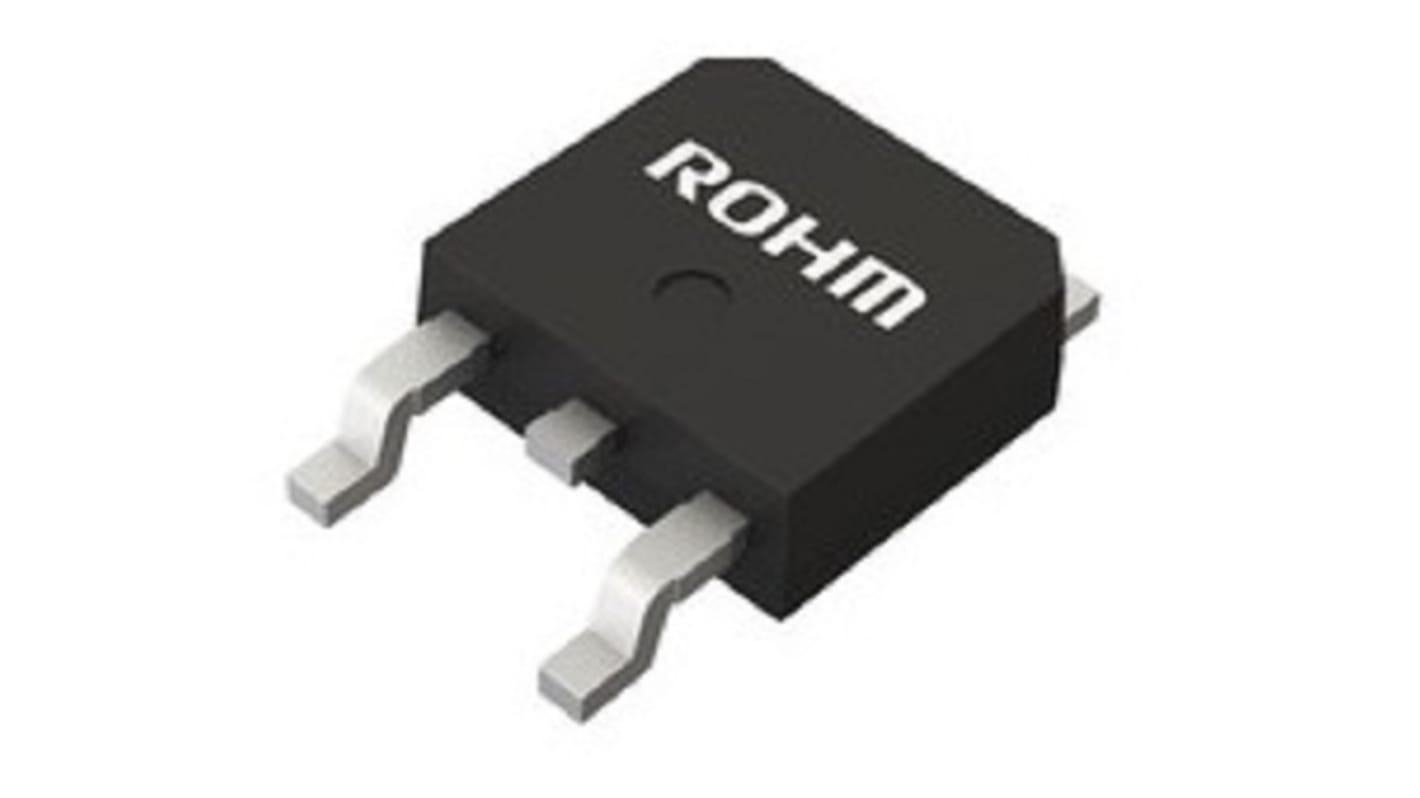

ROHM R8007 Type N-Channel MOSFET, 7 A, 800 V N, 3-Pin TO-252
- RS Stock No.:
- 234-2941
- Mfr. Part No.:
- R8007AND3FRATL
- Brand:
- ROHM
Subtotal (1 reel of 2500 units)*
£4,945.00
(exc. VAT)
£5,935.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.978 | £4,945.00 |
*price indicative
- RS Stock No.:
- 234-2941
- Mfr. Part No.:
- R8007AND3FRATL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 7A | |
| Maximum Drain Source Voltage Vds | 800V | |
| Series | R8007 | |
| Package Type | TO-252 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.2Ω | |
| Channel Mode | N | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Maximum Power Dissipation Pd | 140W | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 28nC | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.3mm | |
| Width | 6.4 mm | |
| Standards/Approvals | No | |
| Height | 10.5mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 7A | ||
Maximum Drain Source Voltage Vds 800V | ||
Series R8007 | ||
Package Type TO-252 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.2Ω | ||
Channel Mode N | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Maximum Power Dissipation Pd 140W | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 28nC | ||
Maximum Operating Temperature 150°C | ||
Length 2.3mm | ||
Width 6.4 mm | ||
Standards/Approvals No | ||
Height 10.5mm | ||
Automotive Standard AEC-Q101 | ||
The RHOM R8007AND3FRA series is a power MOSFET with low on-resistance and fast switching, suitable for the switching application. It is a highly reliable product for automotive. Drain-source voltage is 800V and drain current is 7A.
Low on-resistance
Fast switching speed
Drive circuits can be simple
Pb-free plating ; RoHS compliant
AEC-Q101 Qualified
