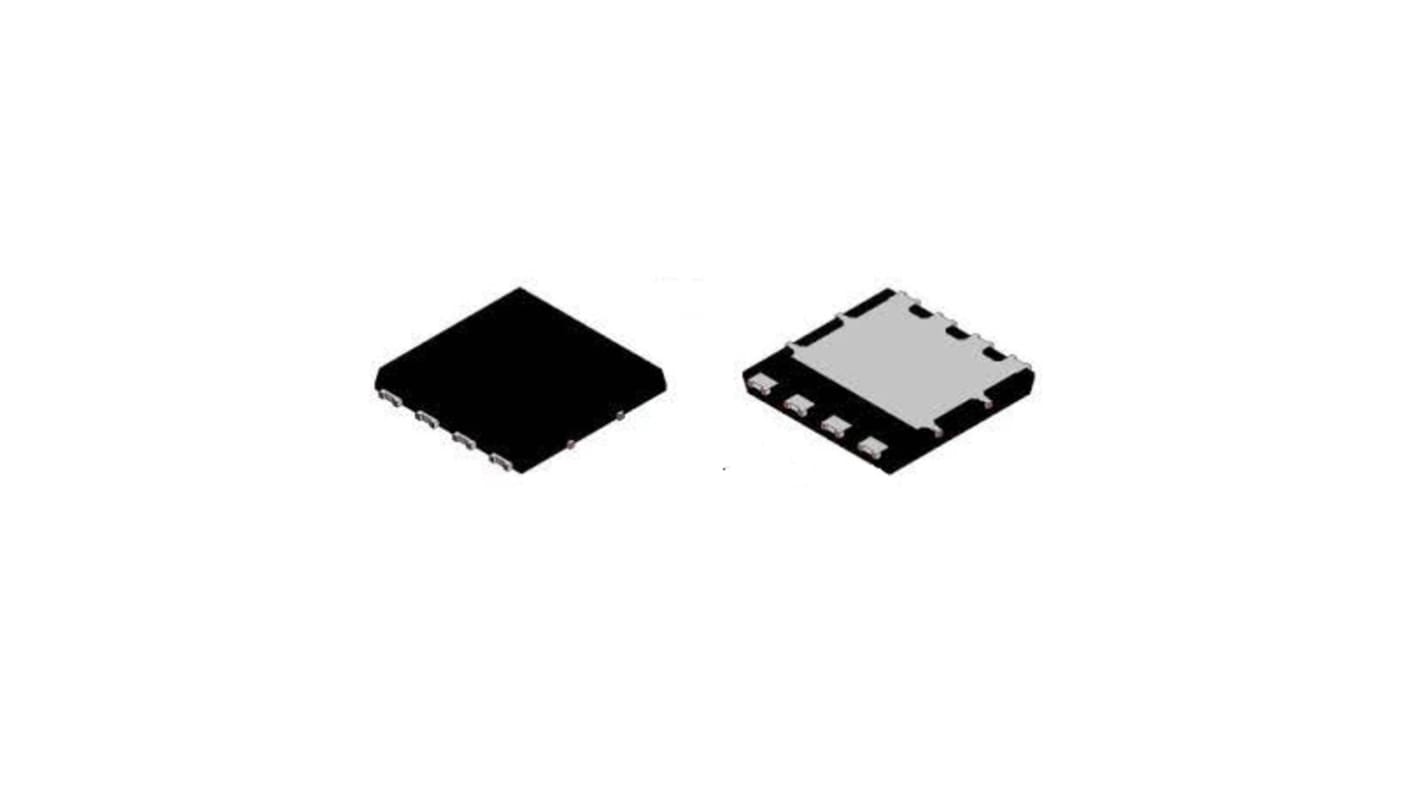

onsemi Type N-Channel MOSFET, 165 A, 150 V N, 8-Pin DFN
- RS Stock No.:
- 229-6504
- Mfr. Part No.:
- NVMTS4D3N15MC
- Brand:
- onsemi
Subtotal (1 reel of 3000 units)*
£8,097.00
(exc. VAT)
£9,717.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £2.699 | £8,097.00 |
*price indicative
- RS Stock No.:
- 229-6504
- Mfr. Part No.:
- NVMTS4D3N15MC
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 165A | |
| Maximum Drain Source Voltage Vds | 150V | |
| Package Type | DFN | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 4.45mΩ | |
| Channel Mode | N | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 79nC | |
| Maximum Power Dissipation Pd | 292W | |
| Maximum Operating Temperature | 175°C | |
| Height | 9.42mm | |
| Length | 8.1mm | |
| Standards/Approvals | No | |
| Width | 1.2 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 165A | ||
Maximum Drain Source Voltage Vds 150V | ||
Package Type DFN | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 4.45mΩ | ||
Channel Mode N | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 79nC | ||
Maximum Power Dissipation Pd 292W | ||
Maximum Operating Temperature 175°C | ||
Height 9.42mm | ||
Length 8.1mm | ||
Standards/Approvals No | ||
Width 1.2 mm | ||
Automotive Standard No | ||
The ON Semiconductor industrial power MOSFET in a 8x8mm flat lead package designed for compact and efficient designs and including high thermal performance. Wettable flank capable for enhanced optical inspection. It is used in reverser battery protection, switching power supplies and power switches.
Compact design
Minimize conduction losses
Minimize driver losses
Enhanced optical inspection
