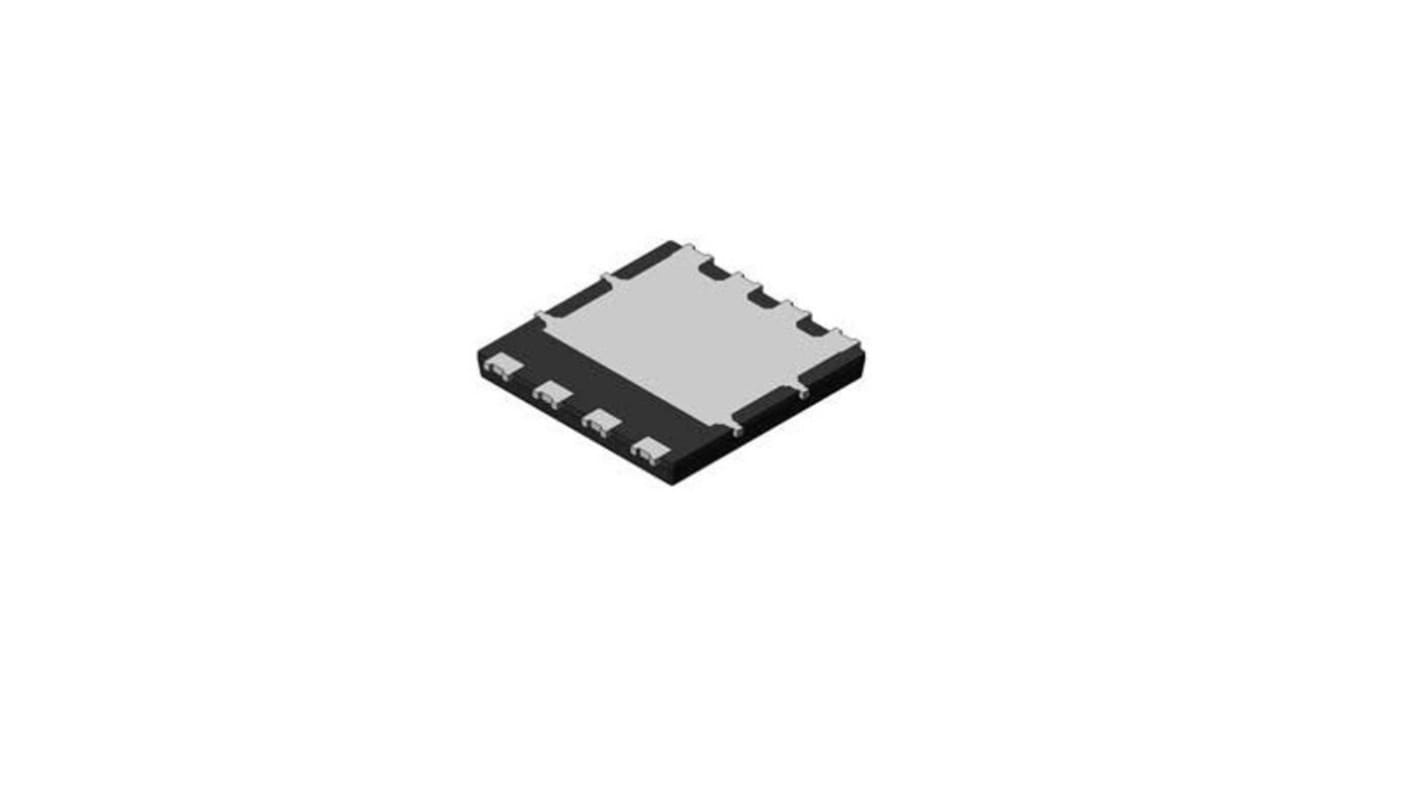

onsemi Type N-Channel MOSFET, 135 A, 150 V N, 8-Pin DFN NTMTS6D0N15MC

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 2 units)*

£9.46

(exc. VAT)

£11.36

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 2,970 unit(s), ready to ship
Units
Per unit
Per Pack*
2 - 18£4.73£9.46
20 - 198£4.075£8.15
200 - 998£3.535£7.07
1000 - 1998£3.105£6.21
2000 +£2.83£5.66

*price indicative

Packaging Options:
RS Stock No.:
229-6487
Mfr. Part No.:
NTMTS6D0N15MC
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

135A

Maximum Drain Source Voltage Vds

150V

Package Type

DFN

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

6.4mΩ

Channel Mode

N

Maximum Gate Source Voltage Vgs

20 V

Typical Gate Charge Qg @ Vgs

58nC

Maximum Power Dissipation Pd

245W

Forward Voltage Vf

1.2V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Width

1.2 mm

Height

8.5mm

Length

8.1mm

Standards/Approvals

No

Automotive Standard

No

The ON Semiconductor N-Channel MOSFET is produced using advanced power trench process that incorporates shielded gate technology. This process has been optimized to minimize on-state resistance and yet maintain superior switching performance.

Minimize conduction losses

High peak current and low parasitic inductance

Offers a wider design margin for thermally challenged applications

Reduces switching spike
