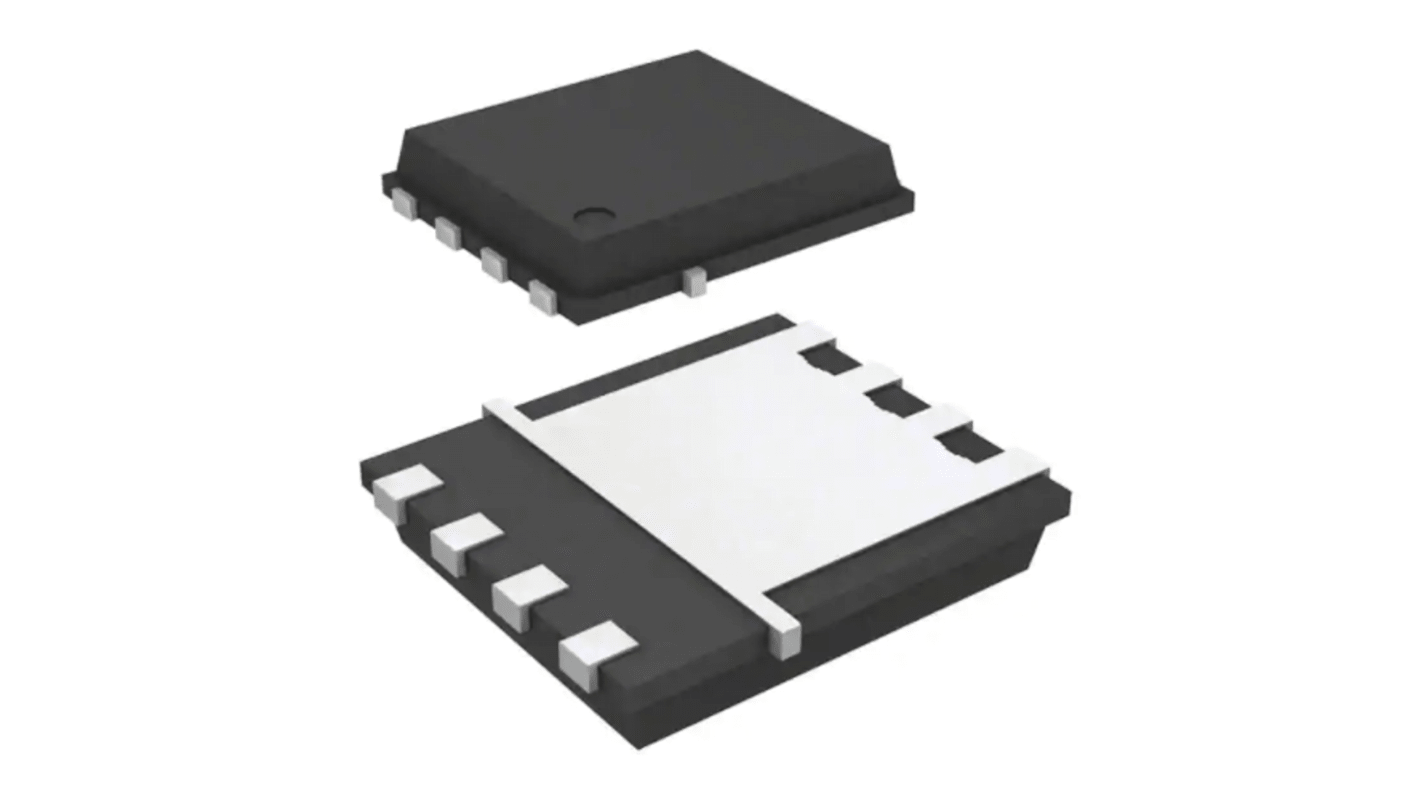

Infineon OptiMOS™ 5 Silicon N-Channel MOSFET, 50 A, 40 V, 8-Pin SuperSO8 5 x 6 IPC50N04S55R8ATMA1
- RS Stock No.:
- 229-1829
- Mfr. Part No.:
- IPC50N04S55R8ATMA1
- Brand:
- Infineon
Subtotal (1 reel of 5000 units)*
£910.00
(exc. VAT)
£1,090.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 35,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.182 | £910.00 |
*price indicative
- RS Stock No.:
- 229-1829
- Mfr. Part No.:
- IPC50N04S55R8ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 50 A | |
| Maximum Drain Source Voltage | 40 V | |
| Series | OptiMOS™ 5 | |
| Package Type | SuperSO8 5 x 6 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.0058 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.4V | |
| Number of Elements per Chip | 1 | |
| Transistor Material | Silicon | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 50 A | ||
Maximum Drain Source Voltage 40 V | ||
Series OptiMOS™ 5 | ||
Package Type SuperSO8 5 x 6 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.0058 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.4V | ||
Number of Elements per Chip 1 | ||
Transistor Material Silicon | ||
40V, N-Ch, 0.9 mΩ max, Automotive MOSFET, PQNF, OptiMOS™-6
Infineon introduces its latest OptiMOS™6 40V power MOS technology in the 5x6mm² SS08 leadless package with highest quality level and robustness for automotive applications. A portfolio of 16 products (RDSon_max from 0.8mΩ to 4.4mΩ address the whole applications range from low-power e.g. Body applications to high-power e.g. EPS) which enables the the customer to find the best product fit in the their applications.
All of this enables the Best-in-Class product FOM (RDSon x Qg) and performance on the market. The new SS08 product offers 120A continuous current ratings, which is >25% higher than the standard DPAK at almost half of its footprint area.
Additionally, the new generation of the SS08 package enables superior switching performance and EMI behavior due to very low package inductance (≈4x lower package inductivity vs traditional packages e.g. DPAK, D²PAK) by using the new copper-clip intercontact technology.
All of this enables the Best-in-Class product FOM (RDSon x Qg) and performance on the market. The new SS08 product offers 120A continuous current ratings, which is >25% higher than the standard DPAK at almost half of its footprint area.
Additionally, the new generation of the SS08 package enables superior switching performance and EMI behavior due to very low package inductance (≈4x lower package inductivity vs traditional packages e.g. DPAK, D²PAK) by using the new copper-clip intercontact technology.
Summary of Features
•OptiMOS™ - power MOSFET for automotive applications
•N-channel - Enhancement mode - Normal Level
•AEC Q101 qualified
•MSL1 up to 260°C peak reflow
•175°C operating temperature
•Green Product (RoHS compliant)
•100% Avalanche tested
•N-channel - Enhancement mode - Normal Level
•AEC Q101 qualified
•MSL1 up to 260°C peak reflow
•175°C operating temperature
•Green Product (RoHS compliant)
•100% Avalanche tested
