MPN

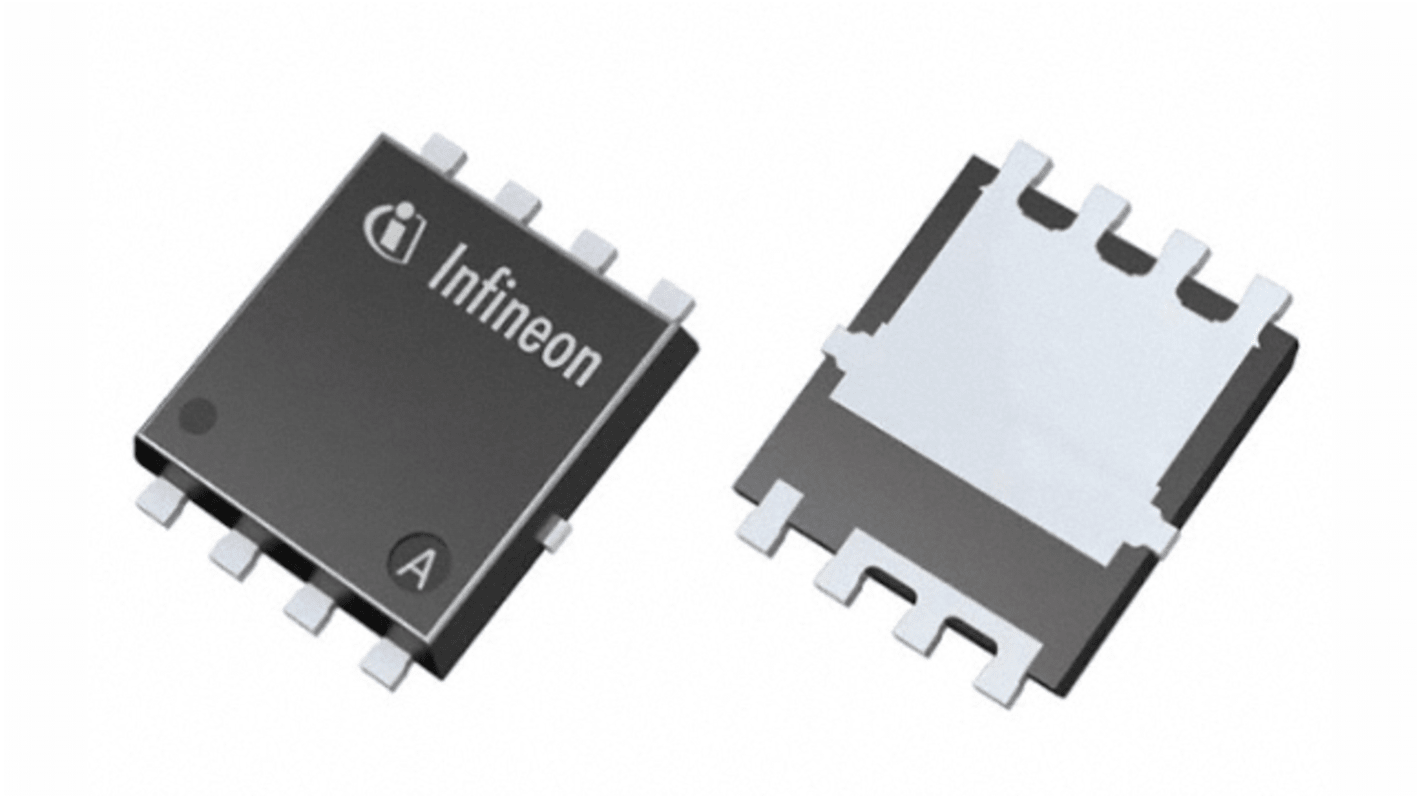

Infineon IPC Type N-Channel MOSFET, 100 A, 40 V Enhancement, 8-Pin SuperSO

RS Stock No.:: 229-1827
Mfr. Part No.:: IPC100N04S5L2R6ATMA1
Brand:: Infineon

Infineon IPC Type N-Channel MOSFET, 100 A, 40 V Enhancement, 8-Pin SuperSO

Subtotal (1 reel of 5000 units)*

£1,355.00

(exc. VAT)

£1,625.00

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

5,000 unit(s) shipping from 29 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
5000 +	£0.271	£1,355.00

*price indicative

RS Stock No.:: 229-1827
Mfr. Part No.:: IPC100N04S5L2R6ATMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	100A
	Maximum Drain Source Voltage Vds	40V
	Series	IPC
	Package Type	SuperSO
	Mount Type	Surface
	Pin Count	8
	Maximum Drain Source Resistance Rds	2.6mΩ
	Channel Mode	Enhancement
	Maximum Gate Source Voltage Vgs	16 V
	Maximum Power Dissipation Pd	75W
	Typical Gate Charge Qg @ Vgs	41nC
	Forward Voltage Vf	1.1V
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	175°C
	Standards/Approvals	No
	Width	5.58 mm
	Length	5.25mm
	Height	1.1mm
	Automotive Standard	AEC-Q101
