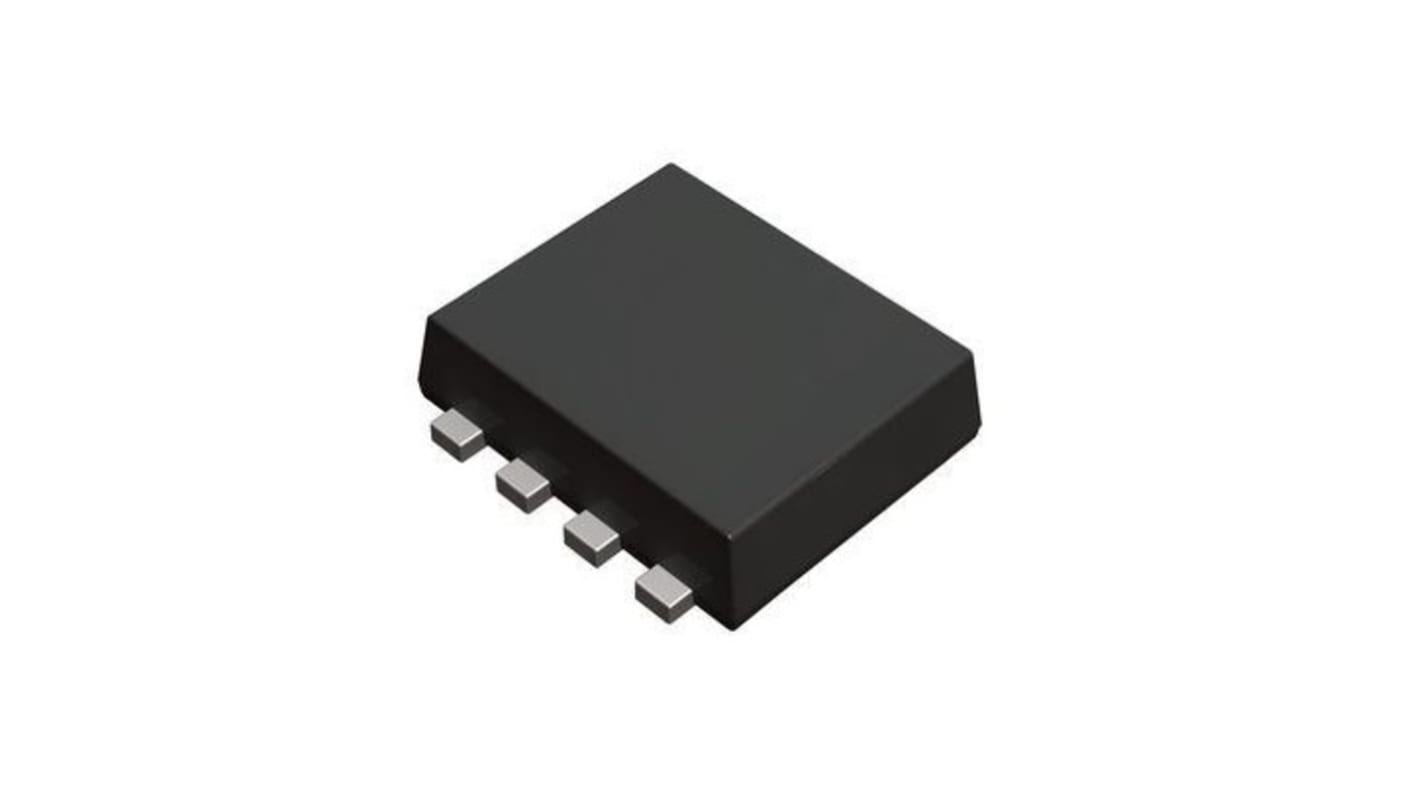

ROHM RQ7L050AT Type P-Channel MOSFET, 5 A, 60 V P, 8-Pin TSMT RQ7L050ATTCR
- RS Stock No.:
- 223-6377
- Mfr. Part No.:
- RQ7L050ATTCR
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£1,215.00
(exc. VAT)
£1,458.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.405 | £1,215.00 |
*price indicative
- RS Stock No.:
- 223-6377
- Mfr. Part No.:
- RQ7L050ATTCR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | MOSFET | |
| Channel Type | Type P | |
| Maximum Continuous Drain Current Id | 5A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | RQ7L050AT | |
| Package Type | TSMT | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 390mΩ | |
| Channel Mode | P | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 38nC | |
| Forward Voltage Vf | -1.2V | |
| Maximum Power Dissipation Pd | 1.5W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type MOSFET | ||
Channel Type Type P | ||
Maximum Continuous Drain Current Id 5A | ||
Maximum Drain Source Voltage Vds 60V | ||
Series RQ7L050AT | ||
Package Type TSMT | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 390mΩ | ||
Channel Mode P | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 38nC | ||
Forward Voltage Vf -1.2V | ||
Maximum Power Dissipation Pd 1.5W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The ROHM power small signal power MOSFET has TSMT8 package type. It is mainly used for switching.
Low on - resistance
Small surface mount package
Pb-free plating, RoHS compliant
