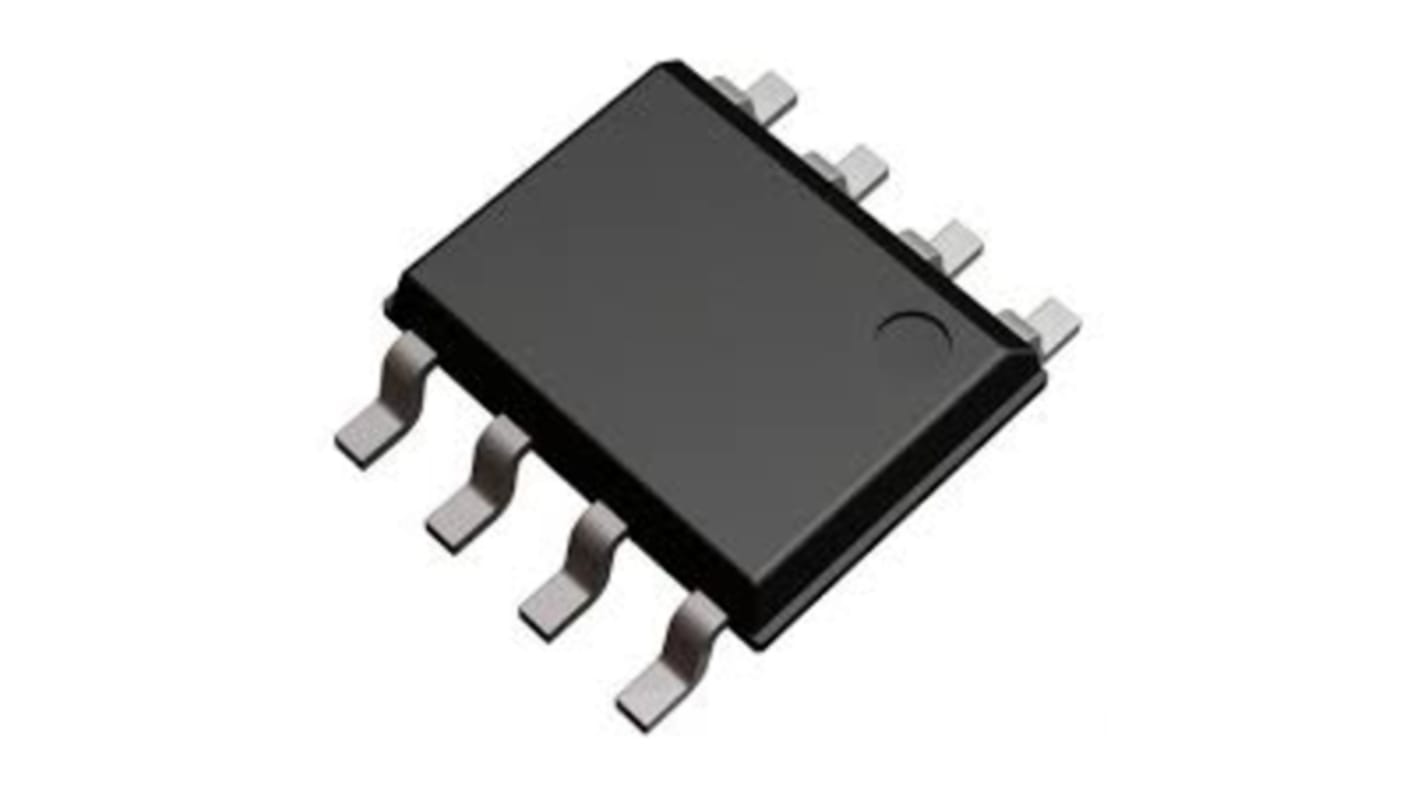

ROHM RS3L110AT Type P-Channel MOSFET, 11 A, 60 V P, 8-Pin SOP RS3L110ATTB1
- RS Stock No.:
- 223-6384
- Mfr. Part No.:
- RS3L110ATTB1
- Brand:
- ROHM
Subtotal (1 reel of 2500 units)*
£2,492.50
(exc. VAT)
£2,990.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.997 | £2,492.50 |
*price indicative
- RS Stock No.:
- 223-6384
- Mfr. Part No.:
- RS3L110ATTB1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | MOSFET | |
| Channel Type | Type P | |
| Maximum Continuous Drain Current Id | 11A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | SOP | |
| Series | RS3L110AT | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 128mΩ | |
| Channel Mode | P | |
| Forward Voltage Vf | -1.2V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Maximum Power Dissipation Pd | 2W | |
| Typical Gate Charge Qg @ Vgs | 115nC | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS, Pb-Free Plating | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type MOSFET | ||
Channel Type Type P | ||
Maximum Continuous Drain Current Id 11A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SOP | ||
Series RS3L110AT | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 128mΩ | ||
Channel Mode P | ||
Forward Voltage Vf -1.2V | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20V | ||
Maximum Power Dissipation Pd 2W | ||
Typical Gate Charge Qg @ Vgs 115nC | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS, Pb-Free Plating | ||
Automotive Standard No | ||
The ROHM power MOSFET has DFN1616-7T package type. It is mainly used for switching, DC-DC converter and battery switches.
Low on - resistance
High power small mold package
Pb-free plating, RoHS compliant
Halogen free
