MPN

Infineon IPA60R Type N-Channel MOSFET, 6 A, 600 V Enhancement, 3-Pin TO-220

RS Stock No.:: 222-4879
Mfr. Part No.:: IPA60R600P7SXKSA1
Brand:: Infineon

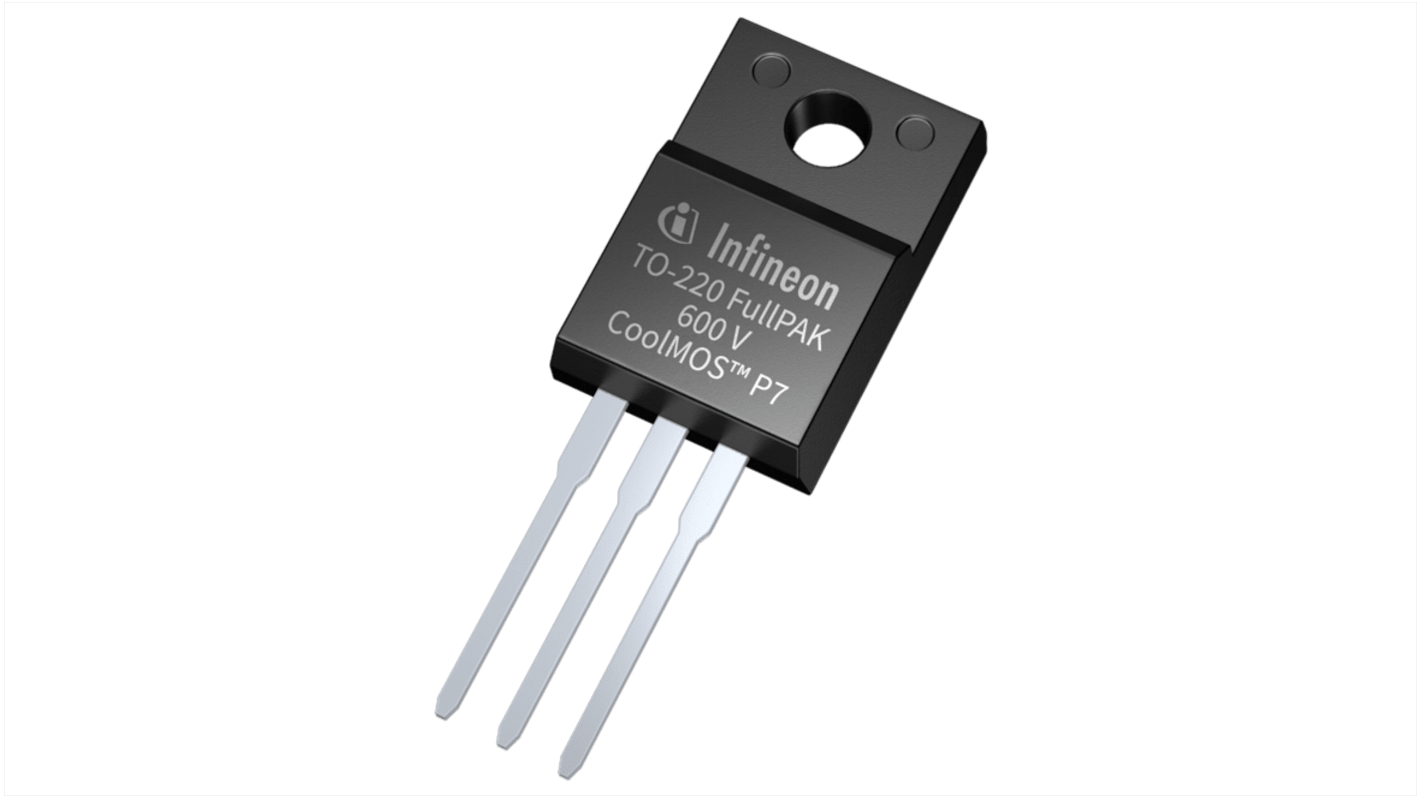

Infineon IPA60R Type N-Channel MOSFET, 6 A, 600 V Enhancement, 3-Pin TO-220

Bulk discount available

Subtotal (1 tube of 50 units)*

£29.40

(exc. VAT)

£35.30

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1,450 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tube*
50 - 50	£0.588	£29.40
100 - 200	£0.458	£22.90
250 - 450	£0.429	£21.45
500 - 1200	£0.40	£20.00
1250 +	£0.37	£18.50

*price indicative

RS Stock No.:: 222-4879
Mfr. Part No.:: IPA60R600P7SXKSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	6A
	Maximum Drain Source Voltage Vds	600V
	Series	IPA60R
	Package Type	TO-220
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	600mΩ
	Channel Mode	Enhancement
	Standards/Approvals	No
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 6A
	Maximum Drain Source Voltage Vds 600V
	Series IPA60R
	Package Type TO-220
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 600mΩ
	Channel Mode Enhancement
	Standards/Approvals No
	Automotive Standard No

Datasheet - IPA60R600P7SXKSA1

The Infineon 600V CoolMOS™ P7 superjunction MOSFET is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class RonxA and the inherently low gate charge (QG) of the CoolMOS™ 7th generation platform ensure its high efficiency.

ESD ruggedness of ≥ 2kV (HBM class 2)

Integrated gate resistor RG

Rugged body diode

Wide portfolio in through hole and surface mount packages

Both standard grade and industrial grade parts are available
