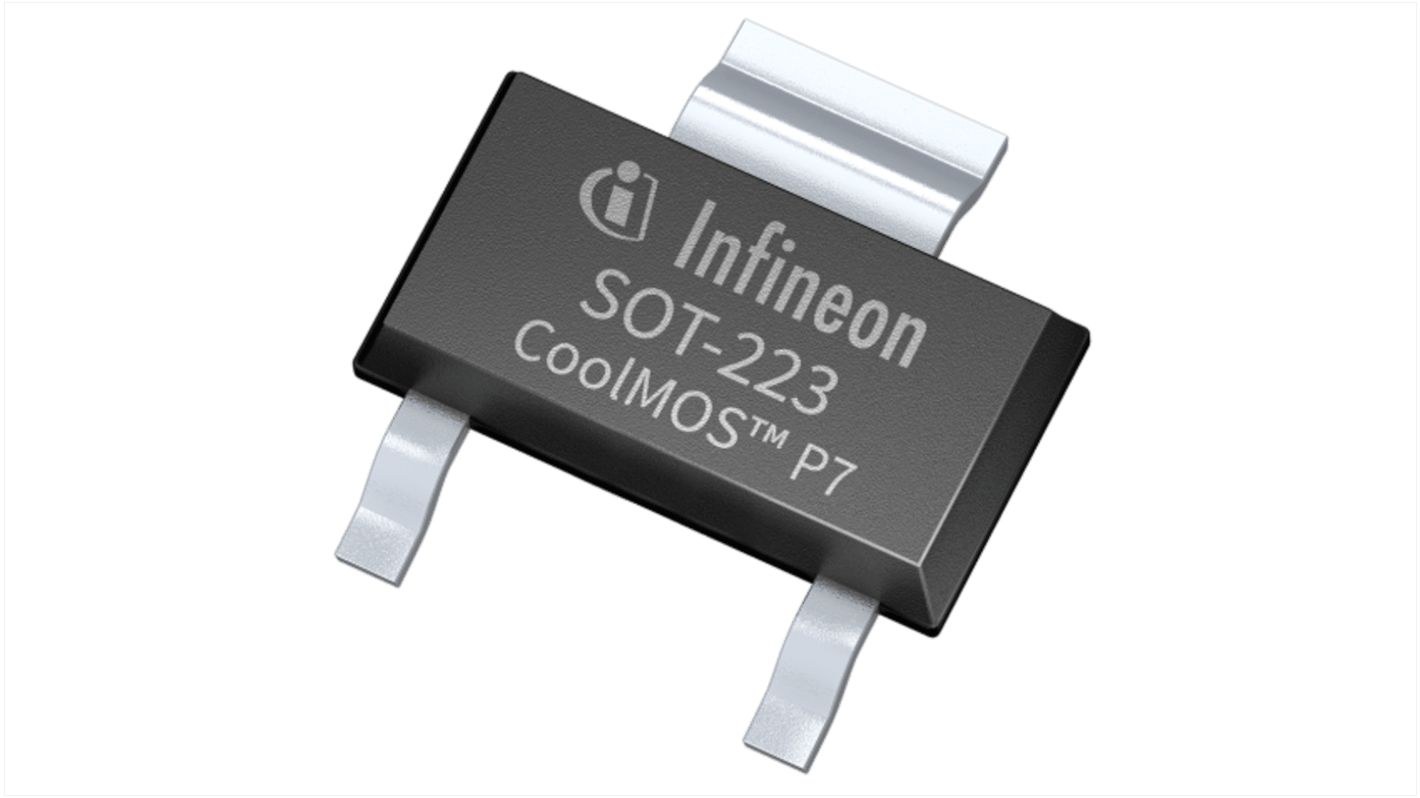

Infineon CoolMOS Type N-Channel MOSFET, 2.5 A, 800 V Enhancement, 3-Pin SOT-223 IPN80R2K4P7ATMA1
- RS Stock No.:
- 222-4689
- Mfr. Part No.:
- IPN80R2K4P7ATMA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 20 units)*
£10.36
(exc. VAT)
£12.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5,760 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 80 | £0.518 | £10.36 |
| 100 - 180 | £0.404 | £8.08 |
| 200 - 480 | £0.378 | £7.56 |
| 500 - 980 | £0.352 | £7.04 |
| 1000 + | £0.327 | £6.54 |
*price indicative
- RS Stock No.:
- 222-4689
- Mfr. Part No.:
- IPN80R2K4P7ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 2.5A | |
| Maximum Drain Source Voltage Vds | 800V | |
| Series | CoolMOS | |
| Package Type | SOT-223 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 2.4mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 7.5nC | |
| Forward Voltage Vf | 0.9V | |
| Maximum Power Dissipation Pd | 6.3W | |
| Maximum Operating Temperature | 150°C | |
| Length | 6.7mm | |
| Height | 1.8mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 2.5A | ||
Maximum Drain Source Voltage Vds 800V | ||
Series CoolMOS | ||
Package Type SOT-223 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 2.4mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 7.5nC | ||
Forward Voltage Vf 0.9V | ||
Maximum Power Dissipation Pd 6.3W | ||
Maximum Operating Temperature 150°C | ||
Length 6.7mm | ||
Height 1.8mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon design of Cool MOS™ P7 series sets a new benchmark in 800V super junction technologies and combines best-in-class performance with state of the art ease-of-use, resulting from Infineon’s over 18 years pioneering super junction technology innovation.
Product validation acc. JEDEC Standard
Low switching losses (Eoss) Integrated ESD protection diode
Excellent thermal behaviour
