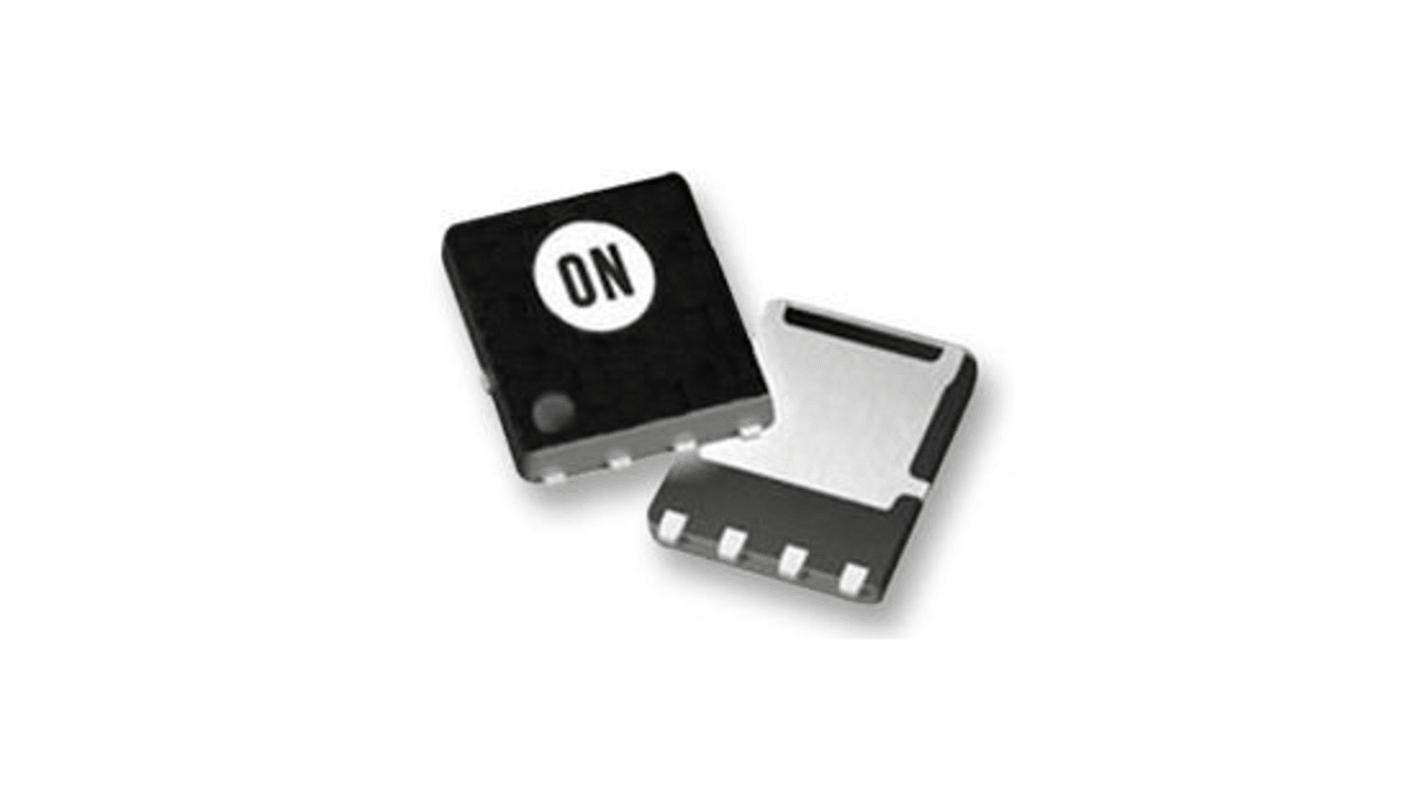

onsemi NTMFS0D5N Type N-Channel MOSFET, 464 A, 30 V Enhancement, 5-Pin DFN
- RS Stock No.:
- 221-6723
- Mfr. Part No.:
- NTMFS0D5N03CT1G
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 221-6723
- Mfr. Part No.:
- NTMFS0D5N03CT1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 464A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Series | NTMFS0D5N | |
| Package Type | DFN | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance Rds | 0.52mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 178nC | |
| Forward Voltage Vf | 1.2V | |
| Maximum Power Dissipation Pd | 200W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Height | 6.3mm | |
| Standards/Approvals | No | |
| Length | 5.3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 464A | ||
Maximum Drain Source Voltage Vds 30V | ||
Series NTMFS0D5N | ||
Package Type DFN | ||
Mount Type Surface | ||
Pin Count 5 | ||
Maximum Drain Source Resistance Rds 0.52mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 178nC | ||
Forward Voltage Vf 1.2V | ||
Maximum Power Dissipation Pd 200W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Height 6.3mm | ||
Standards/Approvals No | ||
Length 5.3mm | ||
Automotive Standard No | ||
The ON Semiconductor 30V of power MOSFET used 464 A of drain current with single N−channel. It has excellent thermal conduction and improve system efficiency.
Advanced package (5x6mm)
Ultra low RDS(on) to improve system efficiency
