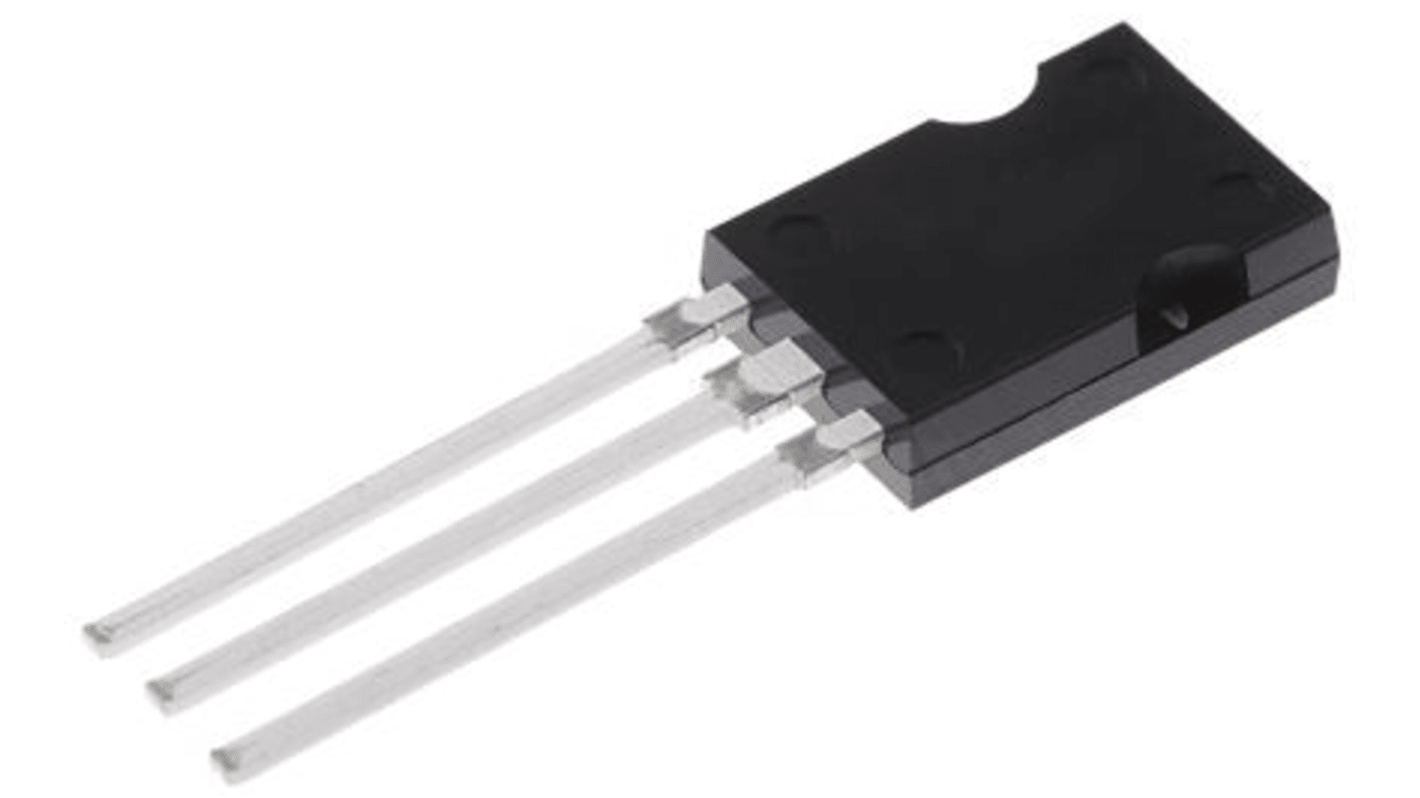

onsemi NTHL125N N-Channel MOSFET, 24 A, 650 V, 3-Pin TO-247 NTHL125N65S3H
- RS Stock No.:
- 221-6718
- Mfr. Part No.:
- NTHL125N65S3H
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 2 units)*
£11.06
(exc. VAT)
£13.28
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 404 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £5.53 | £11.06 |
20 - 198 | £4.765 | £9.53 |
200 + | £4.135 | £8.27 |
*price indicative
- RS Stock No.:
- 221-6718
- Mfr. Part No.:
- NTHL125N65S3H
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Channel Type | N | |
Maximum Continuous Drain Current | 24 A | |
Maximum Drain Source Voltage | 650 V | |
Package Type | TO-247 | |
Series | NTHL125N | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 0.125 Ω | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 4V | |
Number of Elements per Chip | 1 | |
Transistor Material | Si | |
Select all | ||
---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 24 A | ||
Maximum Drain Source Voltage 650 V | ||
Package Type TO-247 | ||
Series NTHL125N | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.125 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4V | ||
Number of Elements per Chip 1 | ||
Transistor Material Si | ||
The ON Semiconductor SUPERFET III MOSFET has high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provides superior switching performance, and withstand extreme dv/dt rate.
Ultra low gate charge
low effective output capacitance 379 pF
100% avalanche tested
low effective output capacitance 379 pF
100% avalanche tested
