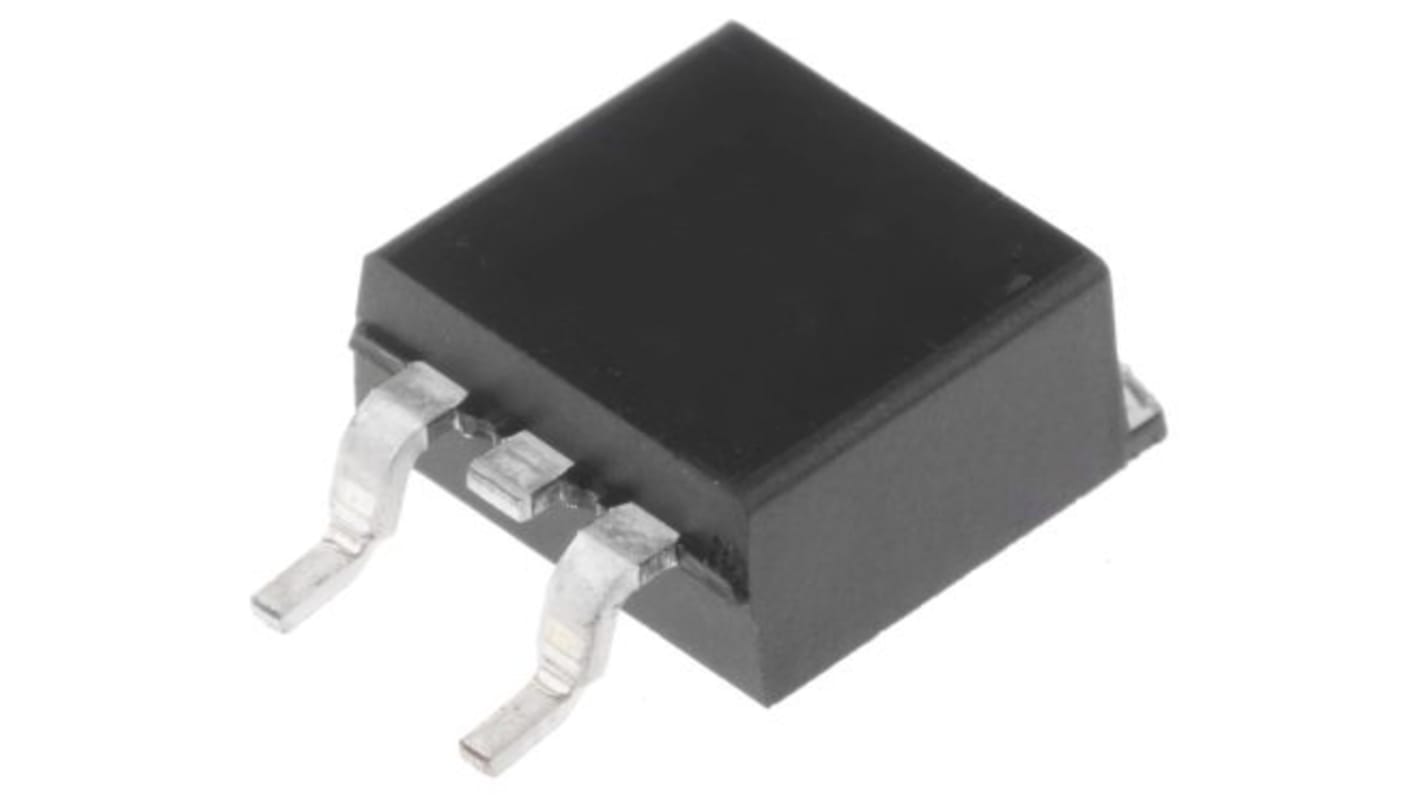

onsemi N-Channel MOSFET, 24 A, 650 V, 3-Pin D2PAK NVB150N65S3F

View all MOSFETs

Subtotal (1 pack of 10 units)*

£12.71

(exc. VAT)

£15.25

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 550 unit(s), ready to ship
Units
Per unit
Per Pack*
10 +£1.271£12.71

*price indicative

Packaging Options:
RS Stock No.:
195-2518
Mfr. Part No.:
NVB150N65S3F
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Channel Type

N

Maximum Continuous Drain Current

24 A

Maximum Drain Source Voltage

650 V

Package Type

D2PAK (TO-263)

Mounting Type

Surface Mount

Pin Count

3

Maximum Drain Source Resistance

150 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

5V

Minimum Gate Threshold Voltage

3V

Maximum Power Dissipation

192 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±30 V

Maximum Operating Temperature

+150 °C

Typical Gate Charge @ Vgs

43 nC @ 10 V

Length

10.67mm

Width

9.65mm

Number of Elements per Chip

1

Height

4.58mm

Automotive Standard

AEC-Q101

Forward Diode Voltage

1.3V

Minimum Operating Temperature

-55 °C

SUPERFET® III MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate. Consequently, SUPERFET III MOSFET is very suitable for the various power system for miniaturization and higher efficiency.SUPERFET III FRFET® MOSFET’s optimized reverse recovery performance of body diode can remove additional component and improve system reliability.

701 V @ TJ = 150°C
Typ. RDS(on) = 114 m
Ultra Low Gate Charge (Typ. Qg = 43 nC)
Low Effective Output Capacitance (Typ. Coss(eff.) = 385 pF)
These Devices are Pb−Free
Applications
Automotive On Board Charger
Automotive DC/DC Converter for HEV
