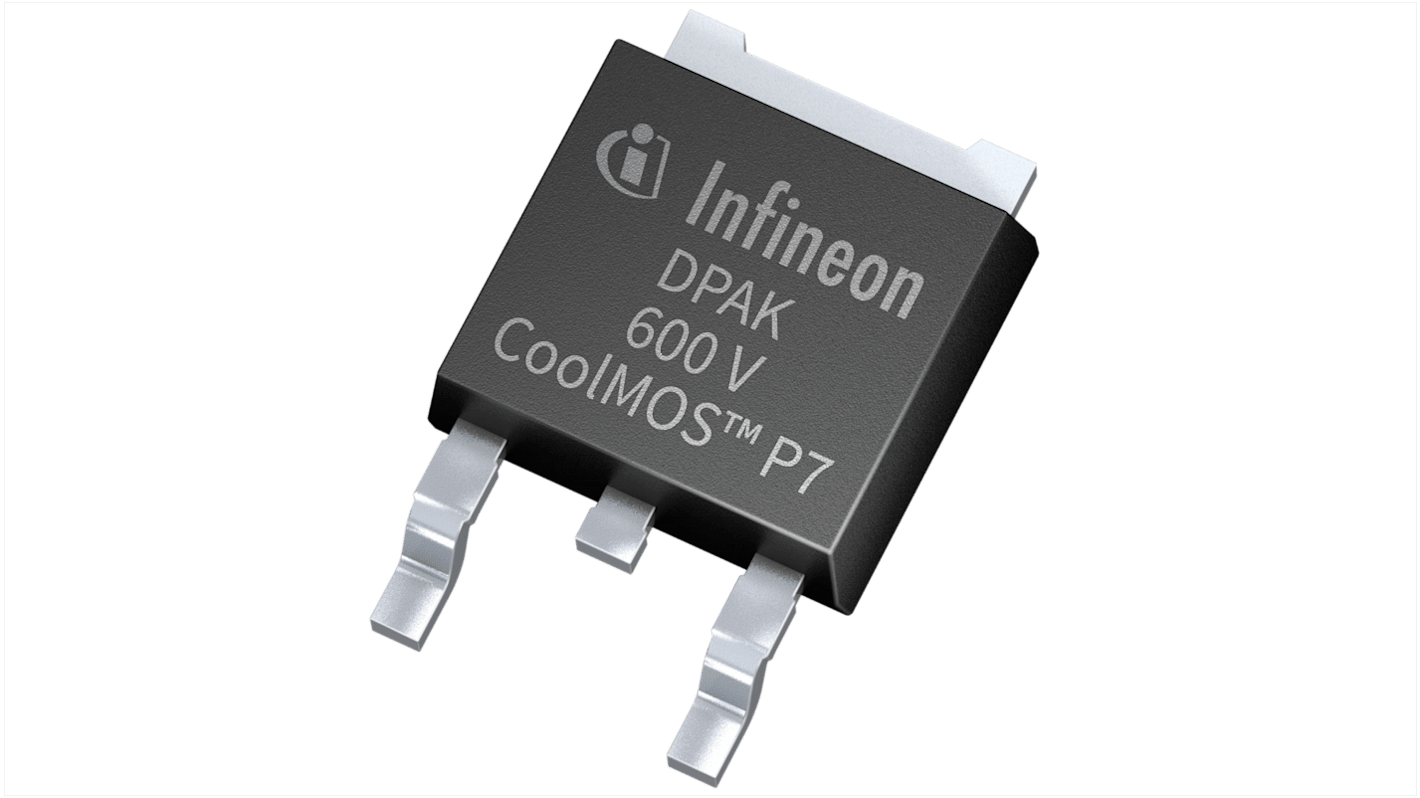

Infineon 600V CoolMOS P7 Type N-Channel MOSFET, 12 A, 600 V Enhancement, 3-Pin TO-252 IPD60R280P7SAUMA1
- RS Stock No.:
- 218-3051
- Mfr. Part No.:
- IPD60R280P7SAUMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 15 units)*
£9.705
(exc. VAT)
£11.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,365 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 60 | £0.647 | £9.71 |
| 75 - 135 | £0.615 | £9.23 |
| 150 - 360 | £0.589 | £8.84 |
| 375 - 735 | £0.563 | £8.45 |
| 750 + | £0.524 | £7.86 |
*price indicative
- RS Stock No.:
- 218-3051
- Mfr. Part No.:
- IPD60R280P7SAUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 12A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Package Type | TO-252 | |
| Series | 600V CoolMOS P7 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 280mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -40°C | |
| Maximum Power Dissipation Pd | 53W | |
| Typical Gate Charge Qg @ Vgs | 18nC | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 0.9V | |
| Maximum Operating Temperature | 150°C | |
| Length | 6.73mm | |
| Standards/Approvals | No | |
| Height | 2.41mm | |
| Width | 6.22 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 12A | ||
Maximum Drain Source Voltage Vds 600V | ||
Package Type TO-252 | ||
Series 600V CoolMOS P7 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 280mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -40°C | ||
Maximum Power Dissipation Pd 53W | ||
Typical Gate Charge Qg @ Vgs 18nC | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 0.9V | ||
Maximum Operating Temperature 150°C | ||
Length 6.73mm | ||
Standards/Approvals No | ||
Height 2.41mm | ||
Width 6.22 mm | ||
Automotive Standard No | ||
The Infineon 600V CoolMOS™ P7 series N-channel power MOSFET. It has extremely low switching and conduction losses which makes switching applications even more efficient, more compact and much cooler.
Significant reduction of switching and conduction losses
Suitable for hard and soft switching
