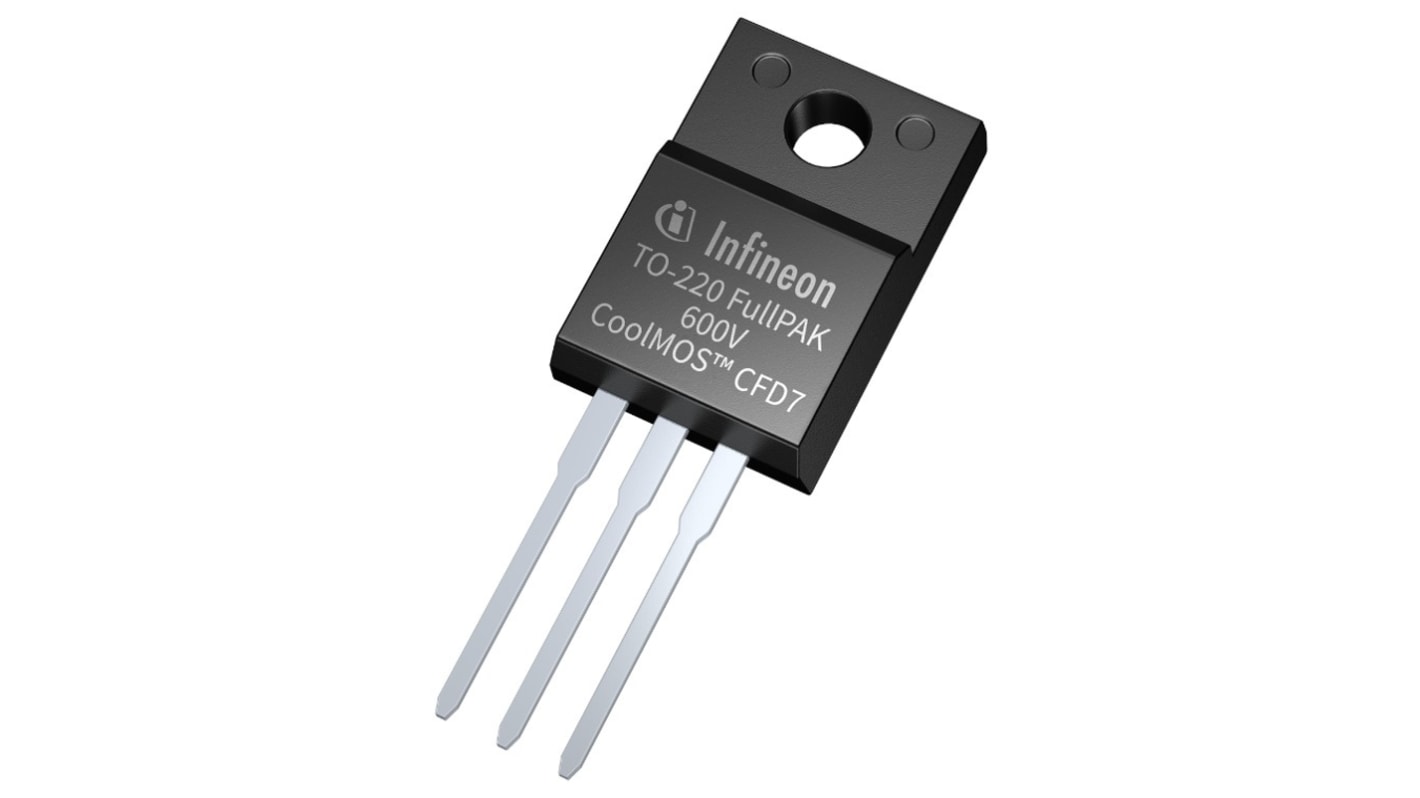

Infineon 600V CoolMOS CFD7 Type N-Channel MOSFET, 11 A, 600 V N, 3-Pin TO-220 IPA60R125CFD7XKSA1
- RS Stock No.:
- 218-2997
- Mfr. Part No.:
- IPA60R125CFD7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 5 units)*
£12.55
(exc. VAT)
£15.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 450 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £2.51 | £12.55 |
| 10 - 20 | £2.184 | £10.92 |
| 25 - 45 | £2.034 | £10.17 |
| 50 - 120 | £1.882 | £9.41 |
| 125 + | £1.758 | £8.79 |
*price indicative
- RS Stock No.:
- 218-2997
- Mfr. Part No.:
- IPA60R125CFD7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 11A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Package Type | TO-220 | |
| Series | 600V CoolMOS CFD7 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 125mΩ | |
| Channel Mode | N | |
| Typical Gate Charge Qg @ Vgs | 36nC | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1V | |
| Maximum Power Dissipation Pd | 32W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 10.65mm | |
| Height | 29.75mm | |
| Width | 4.9 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 11A | ||
Maximum Drain Source Voltage Vds 600V | ||
Package Type TO-220 | ||
Series 600V CoolMOS CFD7 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 125mΩ | ||
Channel Mode N | ||
Typical Gate Charge Qg @ Vgs 36nC | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1V | ||
Maximum Power Dissipation Pd 32W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 10.65mm | ||
Height 29.75mm | ||
Width 4.9 mm | ||
Automotive Standard No | ||
The Infineon 600V CoolMOS™ CFD7 series N-channel power MOSFET. The CoolMOS™ CFD7 technology meets highest efficiency and reliability standards and furthermore supports high power density solutions.
Ultra-fast body diode
Low gate charge
Best-in-class reverse recovery charge (Qrr)
