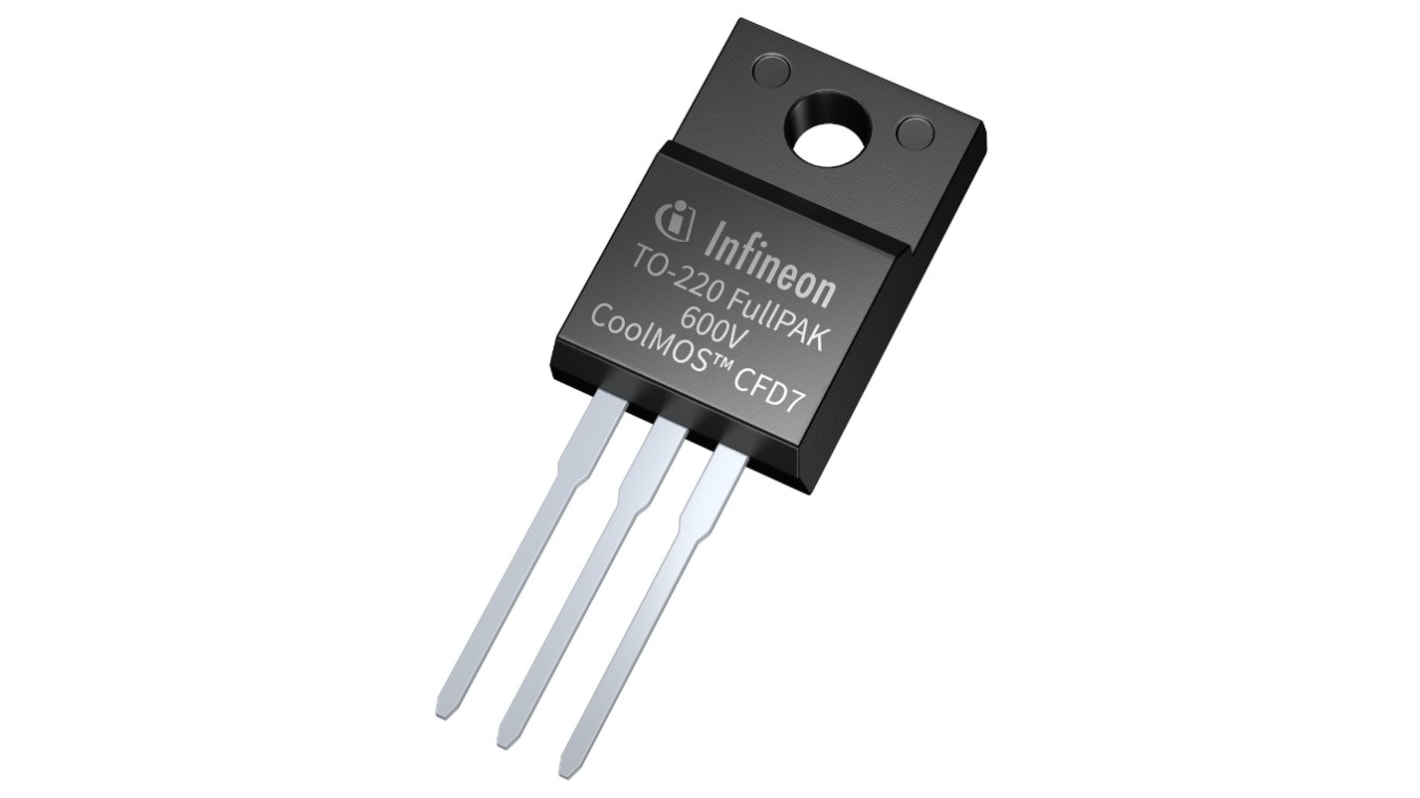

Infineon 600V CoolMOS CFD7 Type N-Channel MOSFET, 8 A, 600 V P, 3-Pin TO-220
- RS Stock No.:
- 214-4351
- Mfr. Part No.:
- IPA60R170CFD7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 50 units)*
£72.25
(exc. VAT)
£86.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 450 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £1.445 | £72.25 |
| 100 - 200 | £1.243 | £62.15 |
| 250 + | £1.156 | £57.80 |
*price indicative
- RS Stock No.:
- 214-4351
- Mfr. Part No.:
- IPA60R170CFD7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 8A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Package Type | TO-220 | |
| Series | 600V CoolMOS CFD7 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 170mΩ | |
| Channel Mode | P | |
| Typical Gate Charge Qg @ Vgs | 28nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 26W | |
| Forward Voltage Vf | 1V | |
| Maximum Operating Temperature | 150°C | |
| Height | 4.85mm | |
| Standards/Approvals | No | |
| Width | 16.15 mm | |
| Length | 10.68mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 8A | ||
Maximum Drain Source Voltage Vds 600V | ||
Package Type TO-220 | ||
Series 600V CoolMOS CFD7 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 170mΩ | ||
Channel Mode P | ||
Typical Gate Charge Qg @ Vgs 28nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 26W | ||
Forward Voltage Vf 1V | ||
Maximum Operating Temperature 150°C | ||
Height 4.85mm | ||
Standards/Approvals No | ||
Width 16.15 mm | ||
Length 10.68mm | ||
Automotive Standard No | ||
This Infineon 600V Cool MOS CFD7 has integrated fast body diode and comes with reduced gate charge (Qg), improved turn-off behaviour and a reverse recovery charge (Qrr) of up to 69% lower compared to the competition
It has high reliability for resonant topologies
It has best-in-class hard commutation ruggedness
