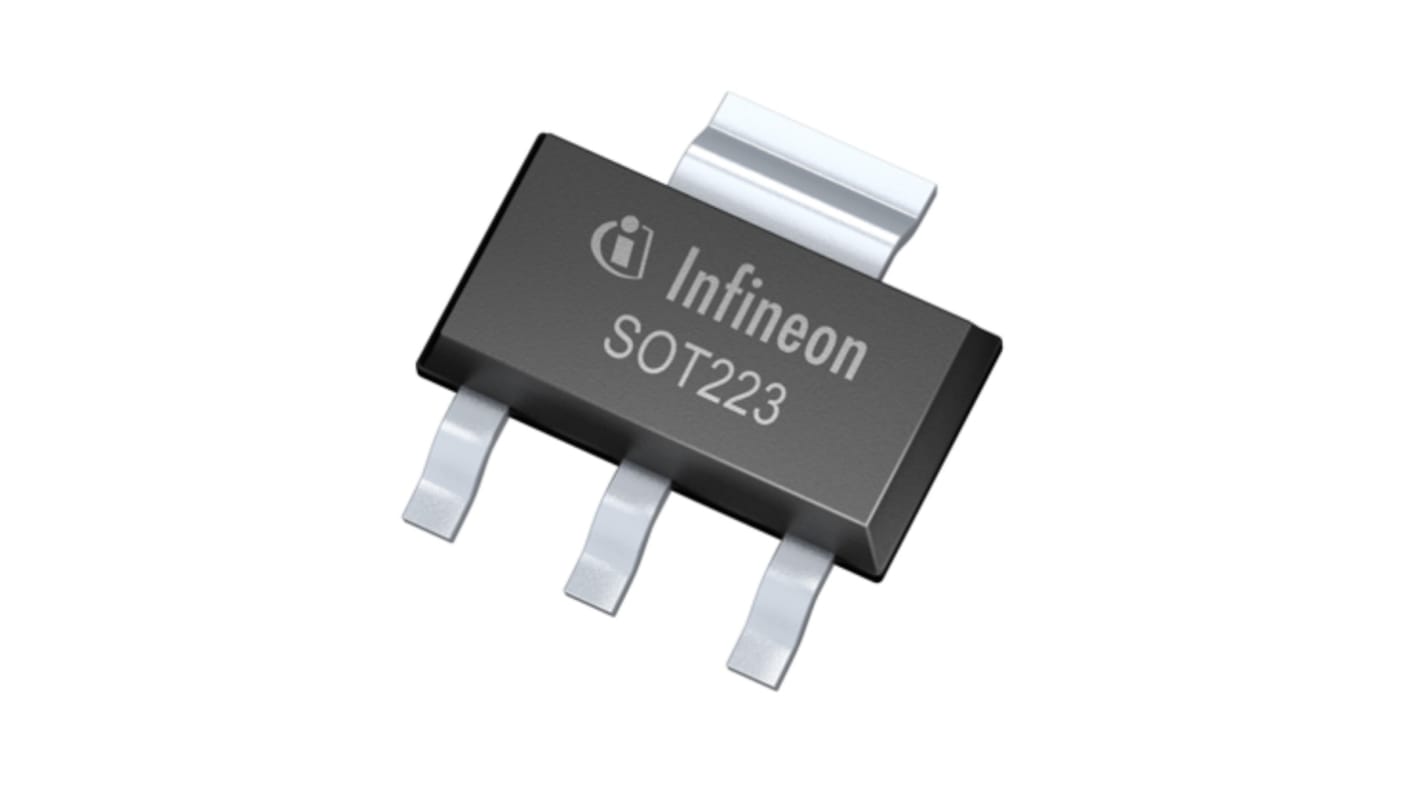

Infineon BSP88 Type N-Channel MOSFET, 350 mA, 240 V Enhancement, 4-Pin SOT-223
- RS Stock No.:
- 218-2981
- Mfr. Part No.:
- BSP88H6327XTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 1000 units)*
£151.00
(exc. VAT)
£181.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.151 | £151.00 |
| 2000 - 4000 | £0.136 | £136.00 |
| 5000 + | £0.128 | £128.00 |
*price indicative
- RS Stock No.:
- 218-2981
- Mfr. Part No.:
- BSP88H6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 350mA | |
| Maximum Drain Source Voltage Vds | 240V | |
| Package Type | SOT-223 | |
| Series | BSP88 | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 6Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 1.8W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 4.5nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.8mm | |
| Standards/Approvals | No | |
| Width | 3.7 mm | |
| Length | 6.7mm | |
| Automotive Standard | AEC-Q101 | |
| Distrelec Product Id | 304-39-399 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 350mA | ||
Maximum Drain Source Voltage Vds 240V | ||
Package Type SOT-223 | ||
Series BSP88 | ||
Mount Type Surface | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 6Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 1.8W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 4.5nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Height 1.8mm | ||
Standards/Approvals No | ||
Width 3.7 mm | ||
Length 6.7mm | ||
Automotive Standard AEC-Q101 | ||
Distrelec Product Id 304-39-399 | ||
The Infineon small signal / small power MOSFET. All small signal n-channel products are suitable for automotive applications (excluding 2N7002).
Enhancement mode
Pb-free lead plating
RoHS compliant
