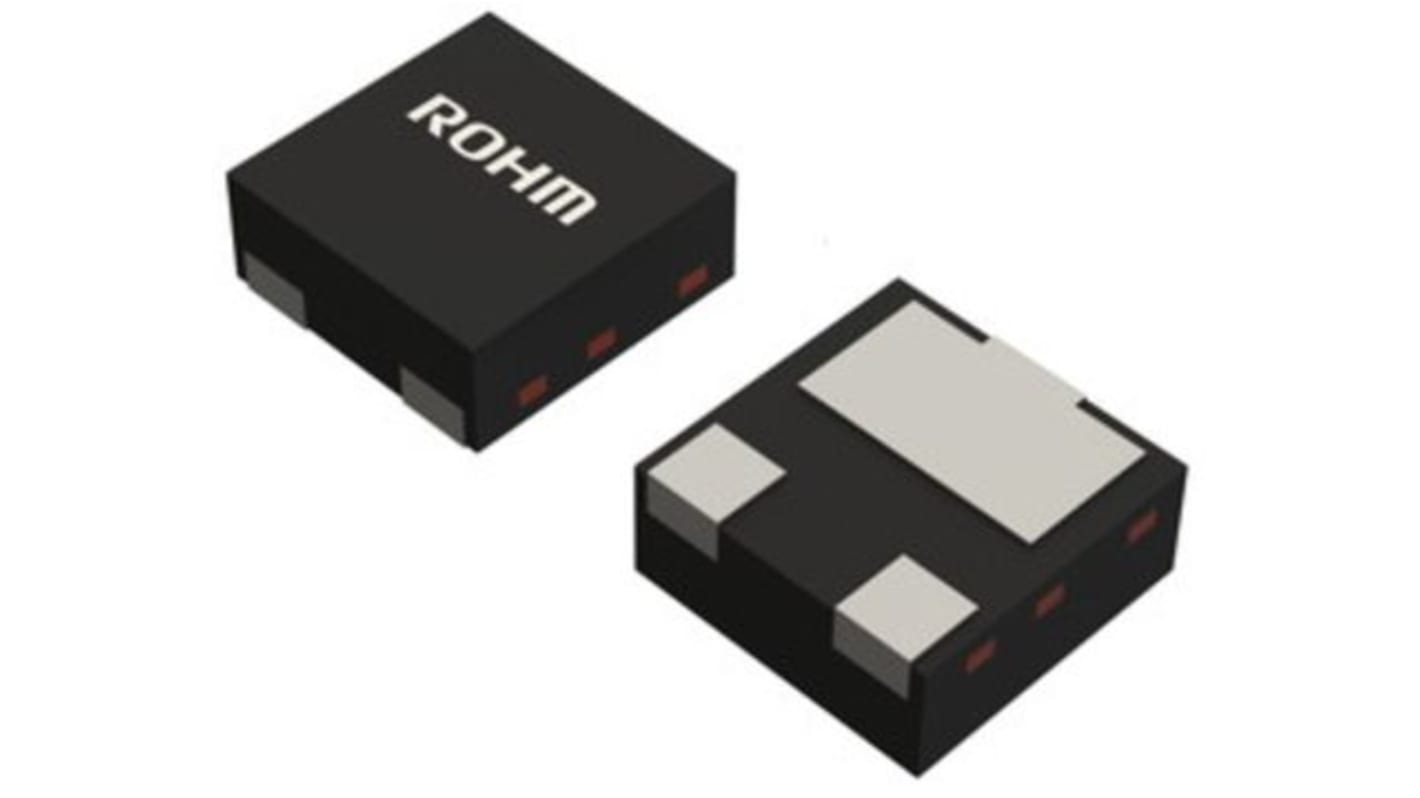

ROHM RV8 N-Channel MOSFET, 250 mA, 60 V N, 3-Pin DFN RV8L002SNHZGG2CR
- RS Stock No.:
- 215-9934
- Mfr. Part No.:
- RV8L002SNHZGG2CR
- Brand:
- ROHM
Subtotal (25 units, in packs of 25)*
£7.75
(exc. VAT)
£9.25
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,725 unit(s) shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £0.31 | £7.75 |
*price indicative
- RS Stock No.:
- 215-9934
- Mfr. Part No.:
- RV8L002SNHZGG2CR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | MOSFET | |
| Channel Type | N | |
| Maximum Continuous Drain Current Id | 250mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | DFN | |
| Series | RV8 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 2.4mΩ | |
| Channel Mode | N | |
| Maximum Power Dissipation Pd | 1W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | 175°C | |
| Width | 1mm | |
| Standards/Approvals | AEC-Q101 | |
| Length | 1mm | |
| Height | 400μm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type MOSFET | ||
Channel Type N | ||
Maximum Continuous Drain Current Id 250mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type DFN | ||
Series RV8 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 2.4mΩ | ||
Channel Mode N | ||
Maximum Power Dissipation Pd 1W | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20V | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature 175°C | ||
Width 1mm | ||
Standards/Approvals AEC-Q101 | ||
Length 1mm | ||
Height 400μm | ||
Automotive Standard AEC-Q101 | ||
The Rohm small signal MOSFET featured with leadless ultra small and exposed drain pad for excellent thermal conduction SMD plastic package. It is mainly used in switching circuit, low side loadswitch and relay driver.
Fast switching
Ultra low voltage drive
