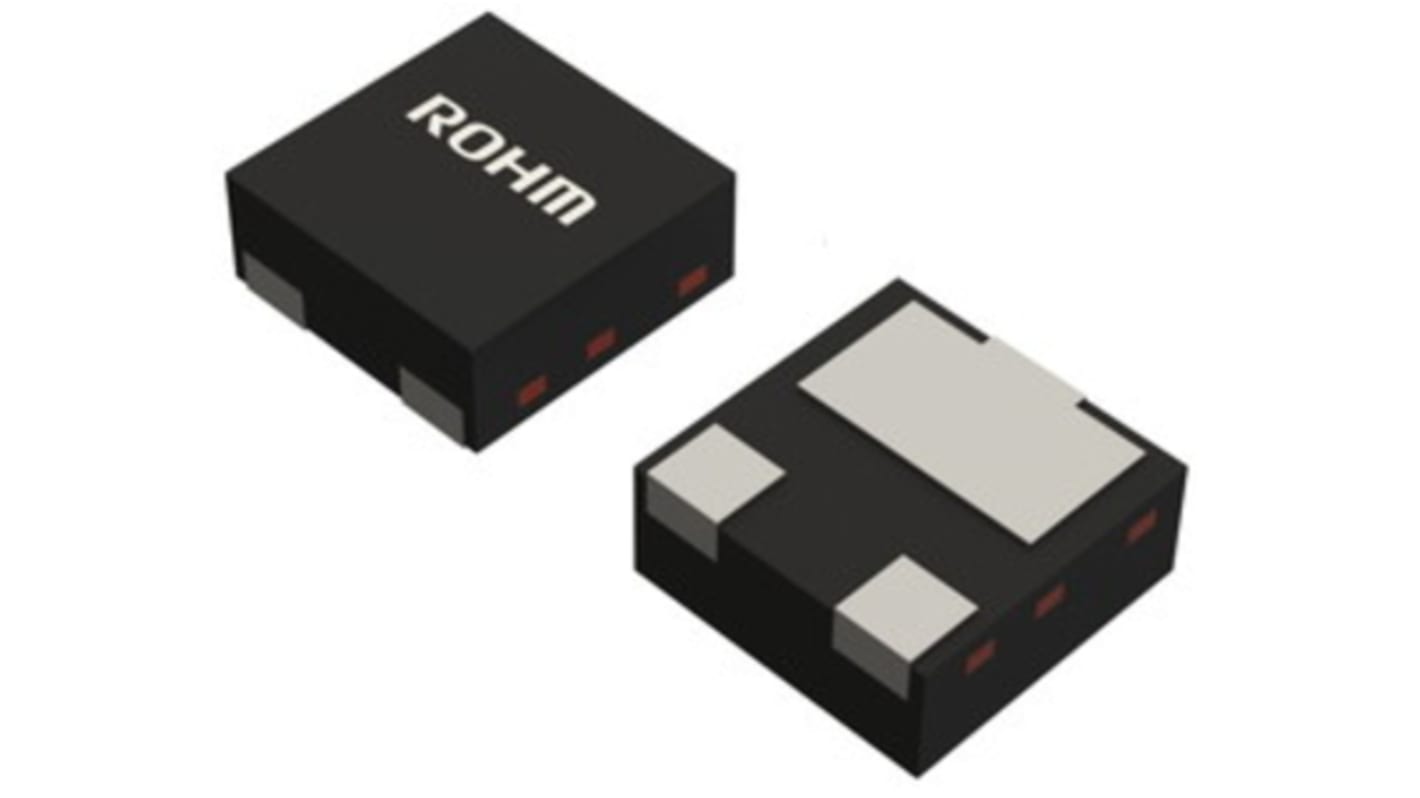

ROHM BSS84X HZG Type P-Channel MOSFET, 200 mA, 60 V P, 3-Pin DFN BSS84XHZGG2CR
- RS Stock No.:
- 223-6197
- Mfr. Part No.:
- BSS84XHZGG2CR
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£4.625
(exc. VAT)
£5.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.185 | £4.63 |
| 50 - 475 | £0.182 | £4.55 |
| 500 - 975 | £0.112 | £2.80 |
| 1000 + | £0.109 | £2.73 |
*price indicative
- RS Stock No.:
- 223-6197
- Mfr. Part No.:
- BSS84XHZGG2CR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Channel Type | Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 200mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | DFN | |
| Series | BSS84X HZG | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 5.3Ω | |
| Channel Mode | P | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | -1.2V | |
| Maximum Power Dissipation Pd | 1W | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | AEC-Q101 | |
| Width | 1mm | |
| Length | 1mm | |
| Height | 0.4mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Channel Type Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 200mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type DFN | ||
Series BSS84X HZG | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 5.3Ω | ||
Channel Mode P | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf -1.2V | ||
Maximum Power Dissipation Pd 1W | ||
Maximum Gate Source Voltage Vgs 20V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals AEC-Q101 | ||
Width 1mm | ||
Length 1mm | ||
Height 0.4mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM power MOSFET has DFN3333-9DC package type. It is mainly used for switching and motor drive.
Low on - resistance
Small surface mount package
Pb-free plating, RoHS compliant
Halogen free
