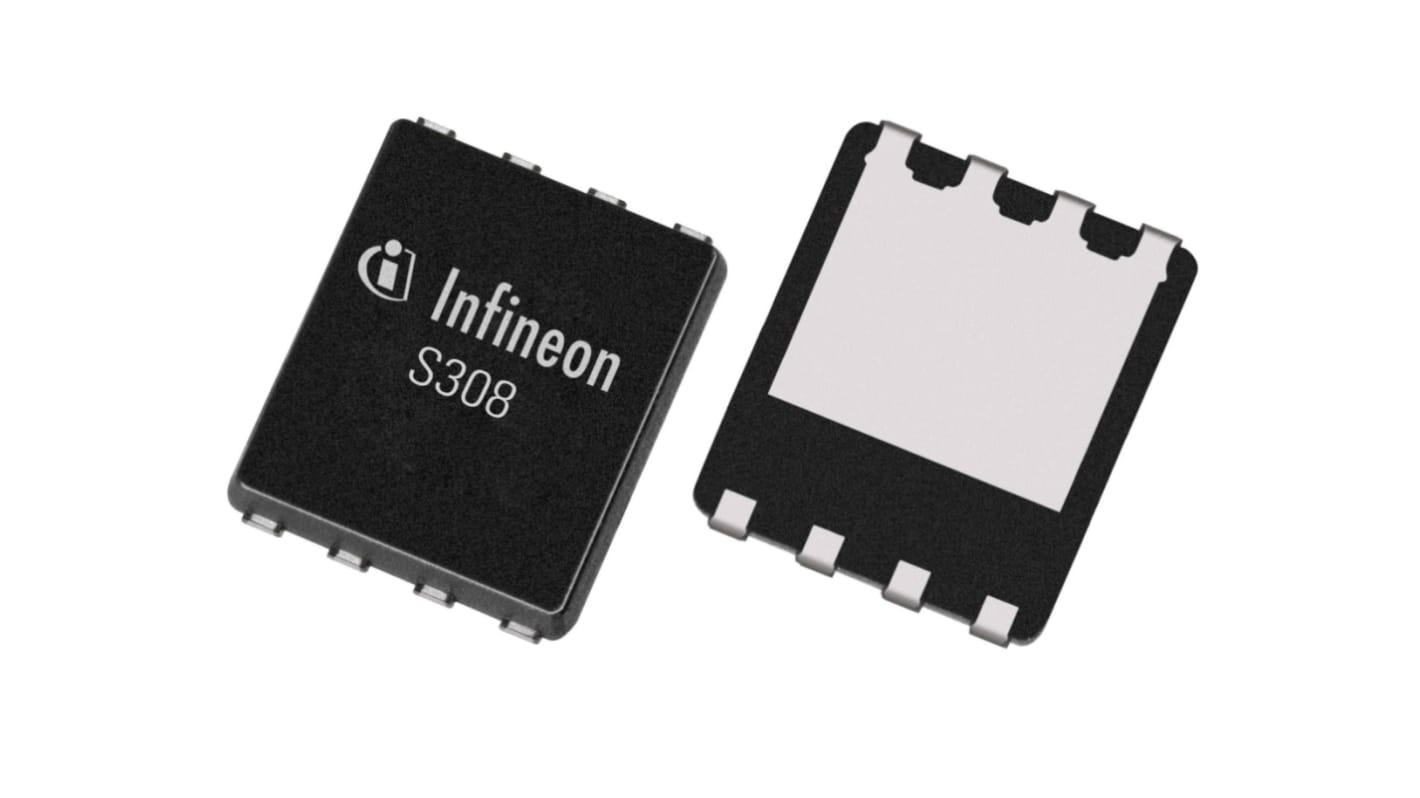

Infineon OptiMOS™ N-Channel MOSFET, 105 A, 40 V, 8-Pin PQFN 3 x 3 BSZ040N04LSGATMA1
- RS Stock No.:
- 215-2470
- Mfr. Part No.:
- BSZ040N04LSGATMA1
- Brand:
- Infineon
Subtotal (1 reel of 5000 units)*
£2,000.00
(exc. VAT)
£2,400.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,995,000 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.40 | £2,000.00 |
*price indicative
- RS Stock No.:
- 215-2470
- Mfr. Part No.:
- BSZ040N04LSGATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 105 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | PQFN 3 x 3 | |
| Series | OptiMOS™ | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.0056 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 105 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type PQFN 3 x 3 | ||
Series OptiMOS™ | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.0056 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Transistor Material Si | ||
Number of Elements per Chip 1 | ||
The Infineon OptiMOS™ 40V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition these devices can be used for a broad range of industrial applications including motor control and fast switching DC-DC converter.
Excellent gate charge x R DS(on) product (FOM)
Very low on-resistance R DS(on)
Ideal for fast switching applications
RoHS compliant - halogen free
MSL1 rated
Very low on-resistance R DS(on)
Ideal for fast switching applications
RoHS compliant - halogen free
MSL1 rated
