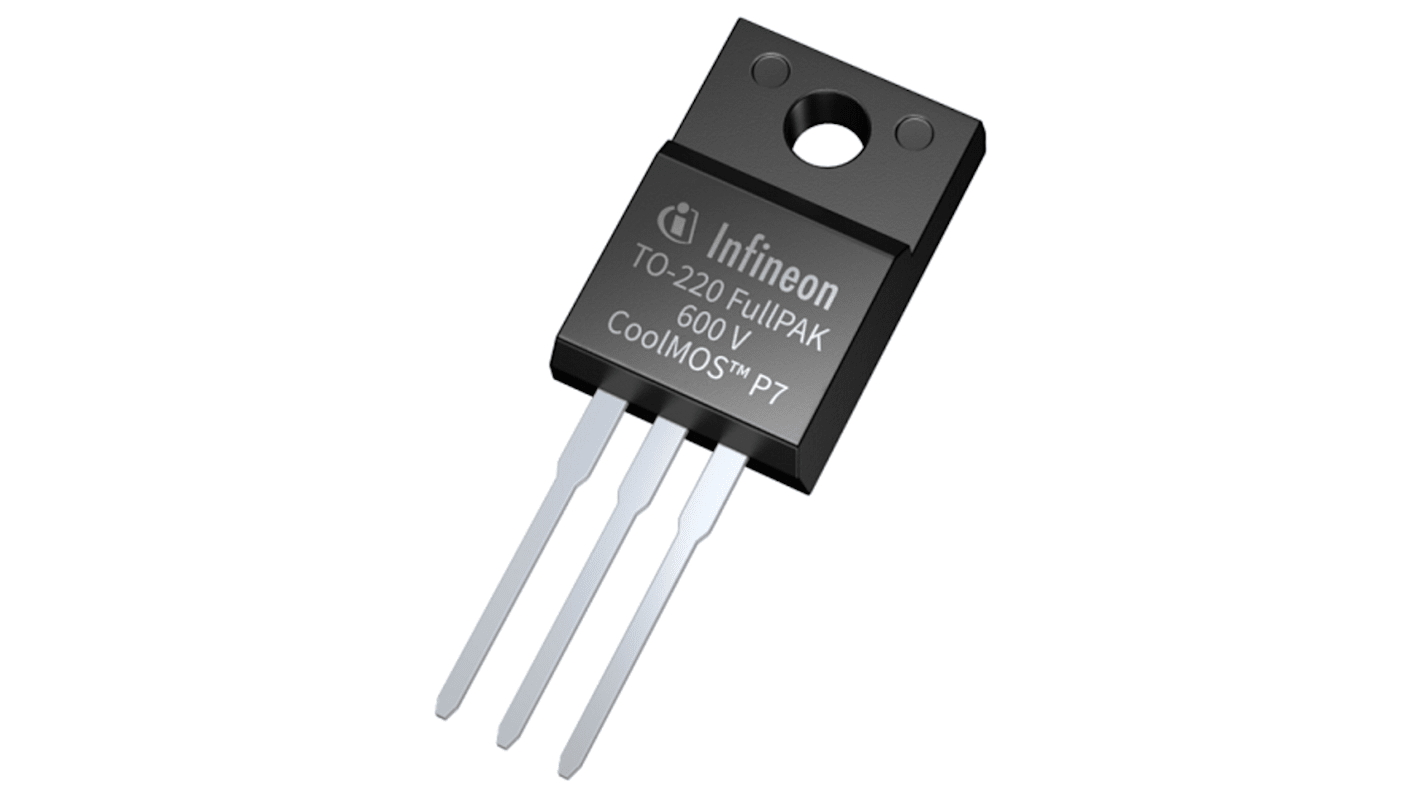

N-Channel MOSFET, 48 A, 600 V, 3-Pin TO-220 FP Infineon IPA60R060P7XKSA1
- RS Stock No.:
- 214-8994
- Mfr. Part No.:
- IPA60R060P7XKSA1
- Brand:
- Infineon
45 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£4.98
(exc. VAT)
£5.98
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £4.98 | £24.90 |
| 10 - 20 | £4.282 | £21.41 |
| 25 - 45 | £4.034 | £20.17 |
| 50 - 120 | £3.736 | £18.68 |
| 125 + | £3.486 | £17.43 |
*price indicative
- RS Stock No.:
- 214-8994
- Mfr. Part No.:
- IPA60R060P7XKSA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon CoolMOS 7th generation platform is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction (SJ) principle and pioneered by Infineon Technologies. The 600V CoolMOS P7 series is the successor to the CoolMOS P6 series. It combines the benefits of a fast switching SJ MOSFET with excellent ease of use, e.g. very low ringing tendency, outstanding robustness of body diode against hard commutation and excellent ESD capability. Furthermore, extremely low switching and conduction losses make switching applications even more efficient, more compact and much cooler.
Excellent ESD robustness >2kV (HBM) for all products
Suitable for hard and soft switching due to an outstanding commutation ruggedness
Suitable for hard and soft switching due to an outstanding commutation ruggedness
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 48 A |
| Maximum Drain Source Voltage | 600 V |
| Series | CoolMOS™ P7 |
| Package Type | TO-220 FP |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 0.06 O |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
