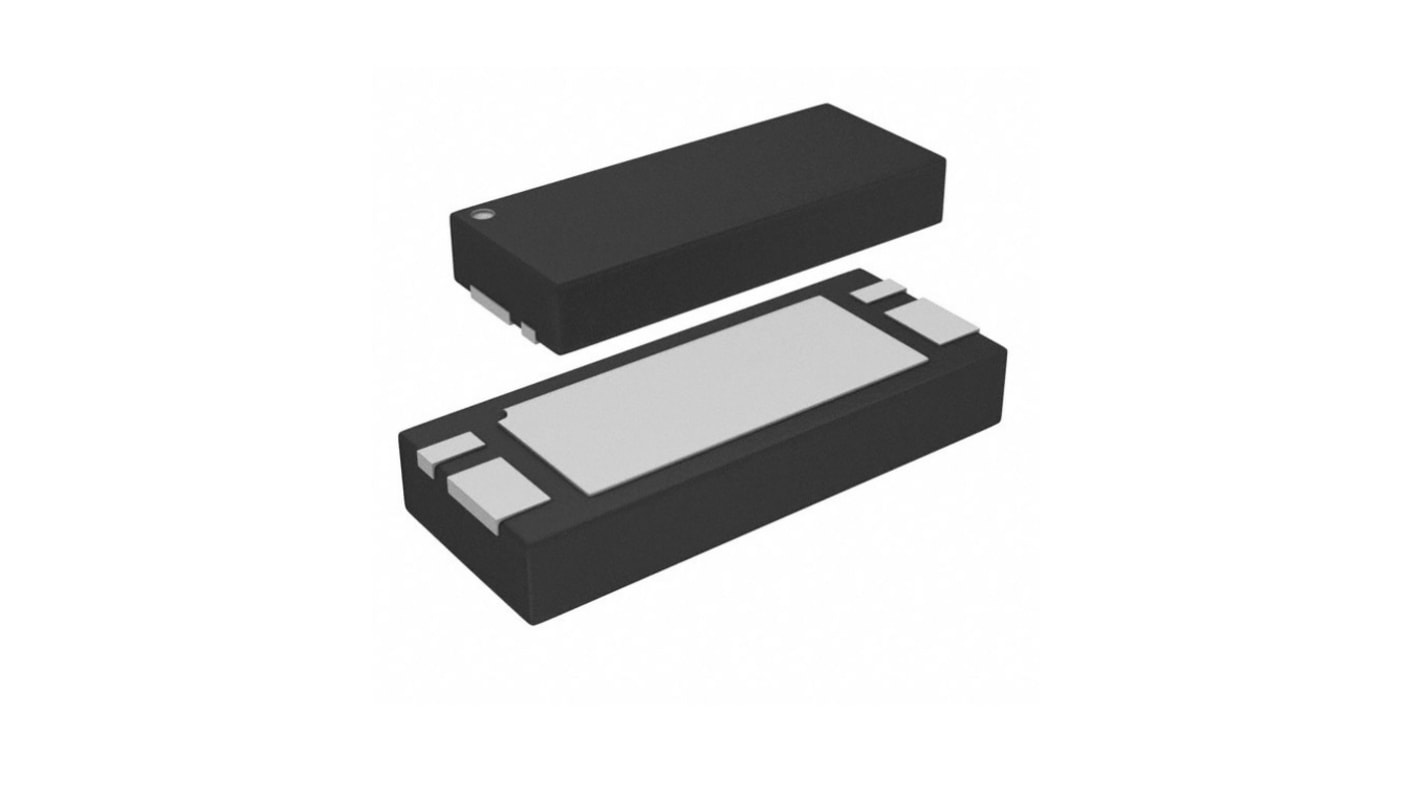

DiodesZetex Dual DMN2024UFX 1 Type N-Channel MOSFET, 8 A, 20 V Enhancement, 4-Pin VDFN DMN2024UFX-7
- RS Stock No.:
- 213-9158
- Mfr. Part No.:
- DMN2024UFX-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 25 units)*
£9.85
(exc. VAT)
£11.825
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.394 | £9.85 |
| 50 - 75 | £0.387 | £9.68 |
| 100 - 225 | £0.345 | £8.63 |
| 250 - 975 | £0.338 | £8.45 |
| 1000 + | £0.276 | £6.90 |
*price indicative
- RS Stock No.:
- 213-9158
- Mfr. Part No.:
- DMN2024UFX-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 8A | |
| Maximum Drain Source Voltage Vds | 20V | |
| Series | DMN2024UFX | |
| Package Type | VDFN | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 0.22Ω | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 7.1nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 10 V | |
| Maximum Power Dissipation Pd | 1.4W | |
| Forward Voltage Vf | 0.8V | |
| Transistor Configuration | Dual | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | UL 94V-0, AEC-Q101, J-STD-020, RoHS, MIL-STD-202 | |
| Width | 5 mm | |
| Length | 2mm | |
| Height | 0.8mm | |
| Number of Elements per Chip | 1 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 8A | ||
Maximum Drain Source Voltage Vds 20V | ||
Series DMN2024UFX | ||
Package Type VDFN | ||
Mount Type Surface | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 0.22Ω | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 7.1nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 10 V | ||
Maximum Power Dissipation Pd 1.4W | ||
Forward Voltage Vf 0.8V | ||
Transistor Configuration Dual | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals UL 94V-0, AEC-Q101, J-STD-020, RoHS, MIL-STD-202 | ||
Width 5 mm | ||
Length 2mm | ||
Height 0.8mm | ||
Number of Elements per Chip 1 | ||
Automotive Standard No | ||
The DiodesZetex DMN2024UFX series is dual N-channel MOSFET. It is used in general purpose interfacing switch and power management functions.
Low on-resistance
ESD protected gate
