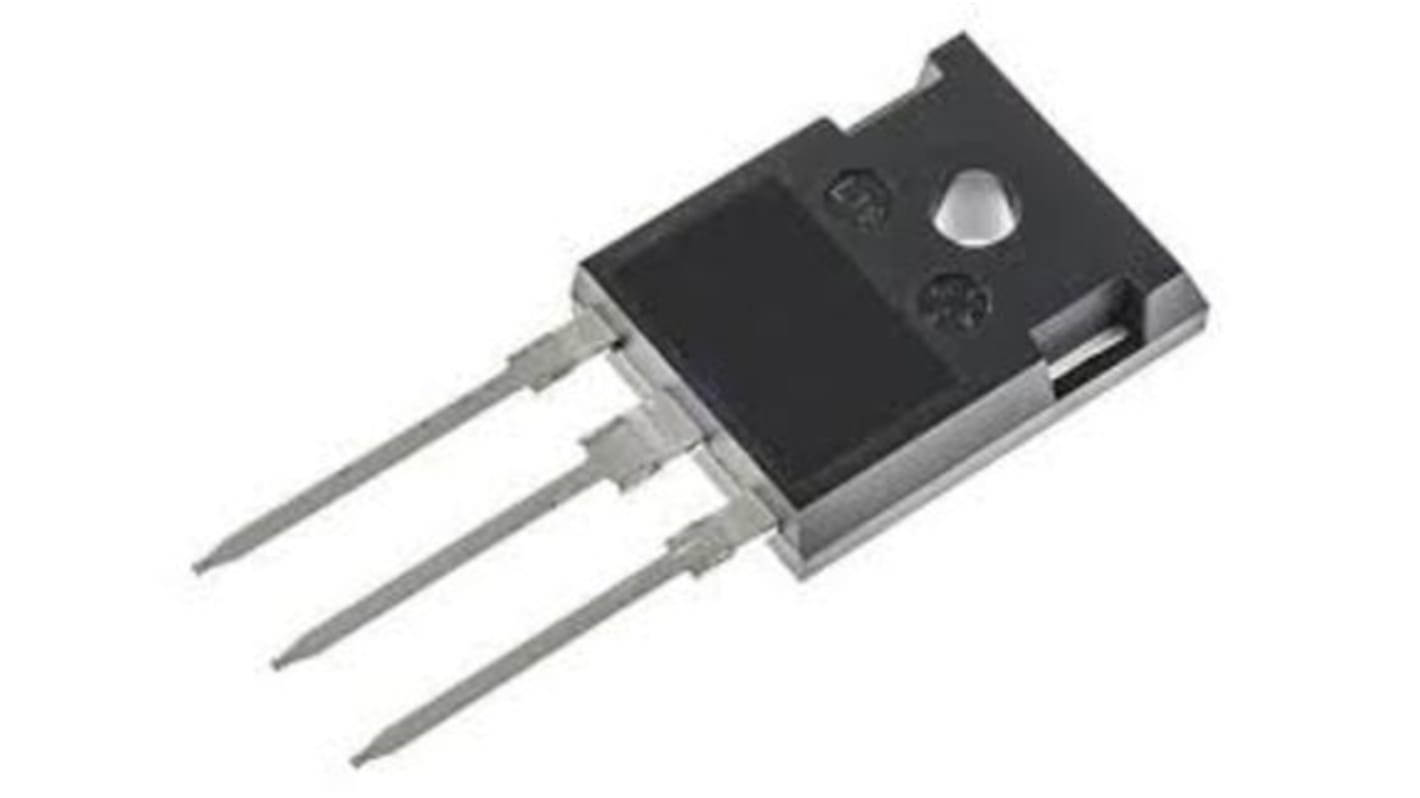

Toshiba TK090N65Z Type N-Channel MOSFET, 30 A, 650 V Enhancement, 3-Pin TO-247 TK090N65Z,S1F(S
- RS Stock No.:
- 206-9725
- Mfr. Part No.:
- TK090N65Z,S1F(S
- Brand:
- Toshiba
Subtotal (1 tube of 30 units)*
£139.95
(exc. VAT)
£167.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 180 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 + | £4.665 | £139.95 |
*price indicative
- RS Stock No.:
- 206-9725
- Mfr. Part No.:
- TK090N65Z,S1F(S
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 30A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | TO-247 | |
| Series | TK090N65Z | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 90mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Typical Gate Charge Qg @ Vgs | 47nC | |
| Maximum Power Dissipation Pd | 230W | |
| Forward Voltage Vf | -1.7V | |
| Maximum Operating Temperature | 150°C | |
| Height | 5.02mm | |
| Standards/Approvals | No | |
| Width | 15.94 mm | |
| Length | 40.02mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 30A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type TO-247 | ||
Series TK090N65Z | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 90mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Typical Gate Charge Qg @ Vgs 47nC | ||
Maximum Power Dissipation Pd 230W | ||
Forward Voltage Vf -1.7V | ||
Maximum Operating Temperature 150°C | ||
Height 5.02mm | ||
Standards/Approvals No | ||
Width 15.94 mm | ||
Length 40.02mm | ||
Automotive Standard No | ||
The Toshiba silicon N-channel MOSFET having high-speed switching properties with lower capacitance. It is mainly used in switching power supplies.
Low drain-source on-resistance 0.075 ?
Storage temperature -55 to 150°C
