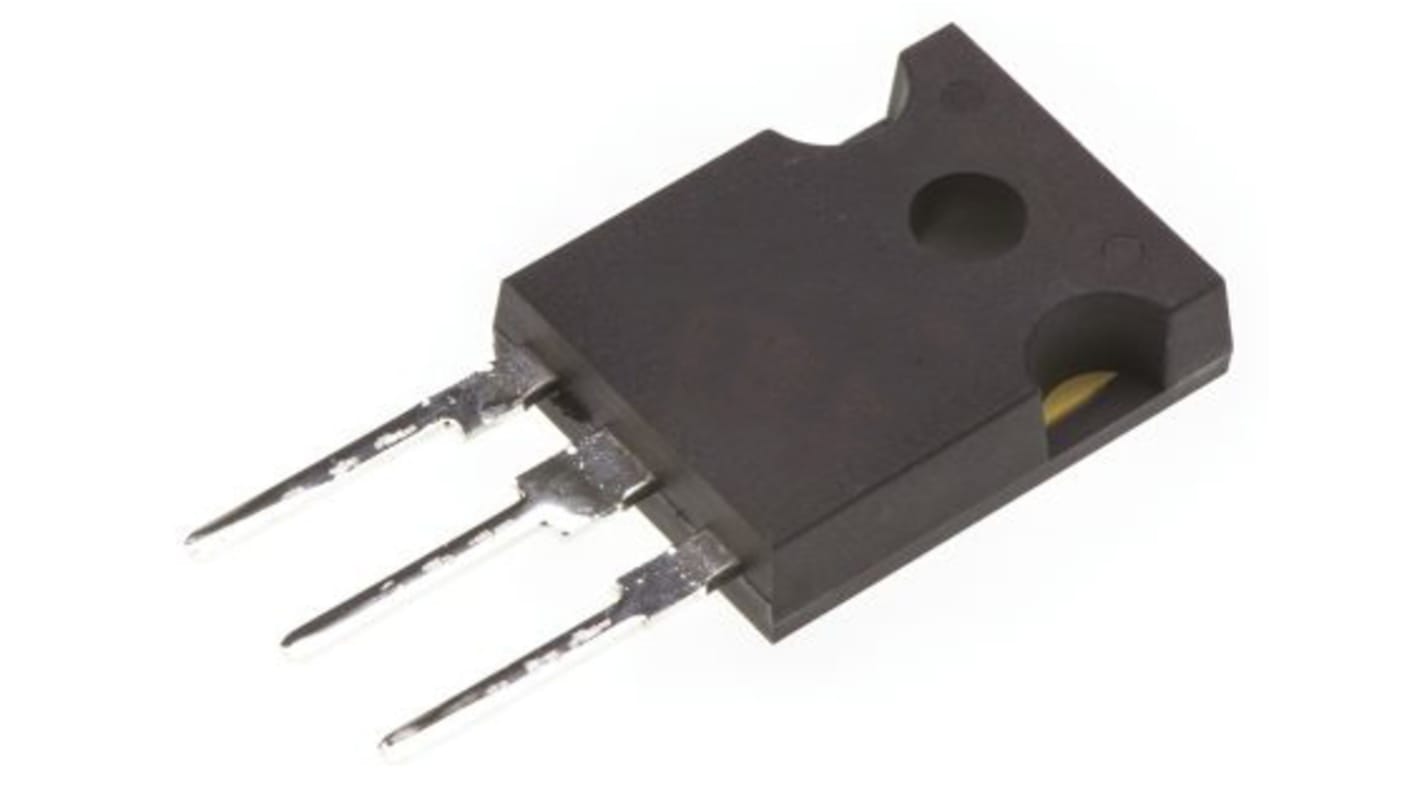

onsemi NTHL Type N-Channel MOSFET, 30 A, 650 V Enhancement, 3-Pin TO-247 NTHL110N65S3F
- RS Stock No.:
- 178-4486
- Mfr. Part No.:
- NTHL110N65S3F
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 2 units)*
£10.34
(exc. VAT)
£12.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 410 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £5.17 | £10.34 |
| 20 + | £4.455 | £8.91 |
*price indicative
- RS Stock No.:
- 178-4486
- Mfr. Part No.:
- NTHL110N65S3F
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 30A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | TO-247 | |
| Series | NTHL | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 110mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Forward Voltage Vf | 1.3V | |
| Typical Gate Charge Qg @ Vgs | 58nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 240W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 20.82mm | |
| Length | 15.87mm | |
| Width | 4.82 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 30A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type TO-247 | ||
Series NTHL | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 110mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Forward Voltage Vf 1.3V | ||
Typical Gate Charge Qg @ Vgs 58nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 240W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 20.82mm | ||
Length 15.87mm | ||
Width 4.82 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
SUPERFET III MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate.
Features:
700 V @ TJ = 150 °C
Ultra Low Gate Charge (Typ. Qg = 58 nC)
Low Effective Output Capacitance (Typ. Coss(eff.) = 553 pF)
Excellent body diode performance (low Qrr, robust body diode)
Optimized Capacitance
Typ. RDS(on) = 98 mΩ
Benefits:
Higher system reliability at low temperature operation
Lower switching loss
Lower switching loss
Higher system reliability in LLC and Phase shift full bridge circuit
Lower peak Vds and lower Vgs oscillation
Applications:
Telecommunication
Cloud system
Industrial
End Products:
Telecom power
Server power
EV charger
Solar / UPS
