Vishay E Type N-Channel Power MOSFET, 4.4 A, 800 V Enhancement, 3-Pin IPAK

RS Stock No.:: 204-7228
Mfr. Part No.:: SIHU5N80AE-GE3
Brand:: Vishay

Vishay E Type N-Channel Power MOSFET, 4.4 A, 800 V Enhancement, 3-Pin IPAK

Subtotal (1 reel of 3000 units)*

£1,167.00

(exc. VAT)

£1,401.00

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 21 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
3000 +	£0.389	£1,167.00

*price indicative

RS Stock No.:: 204-7228
Mfr. Part No.:: SIHU5N80AE-GE3
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Channel Type	Type N
	Product Type	Power MOSFET
	Maximum Continuous Drain Current Id	4.4A
	Maximum Drain Source Voltage Vds	800V

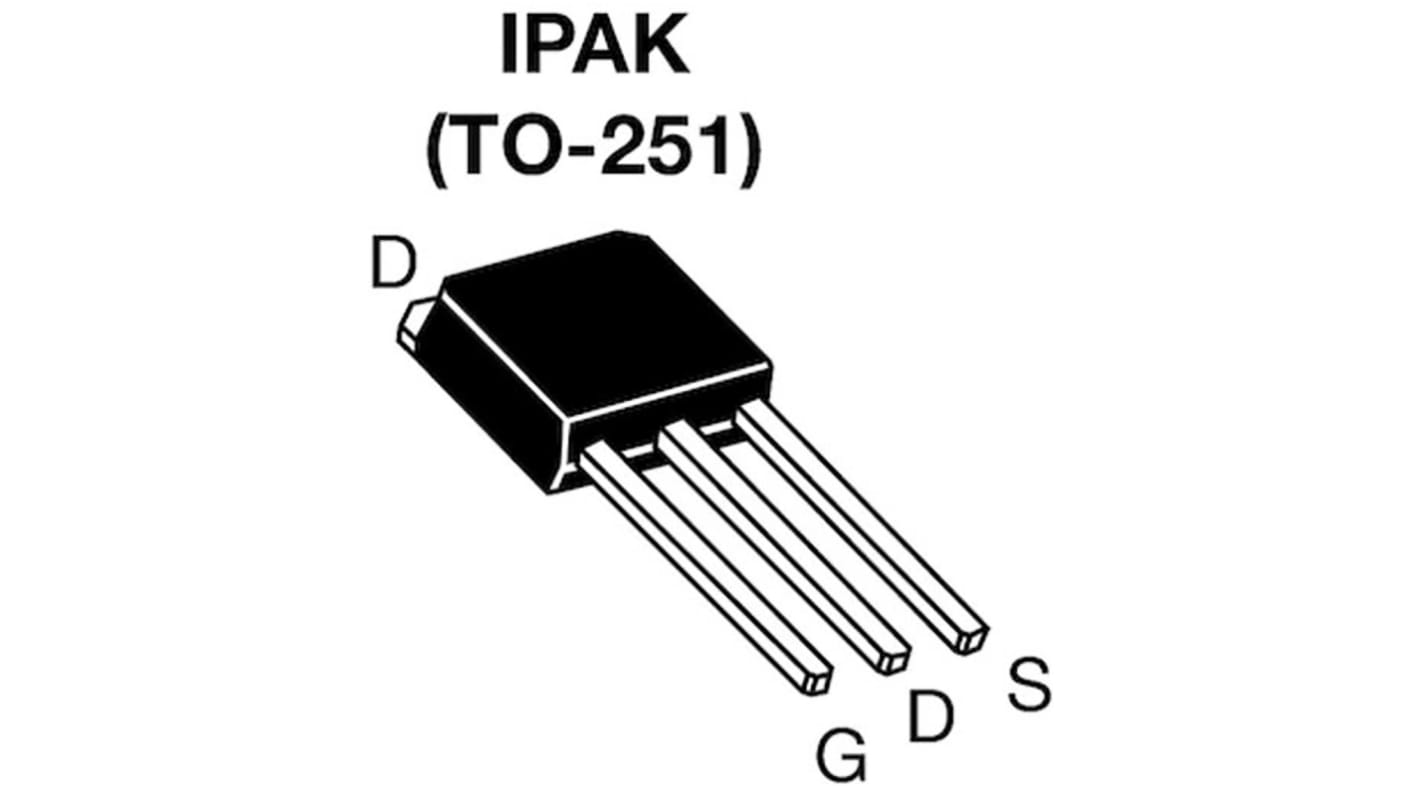

	Package Type	IPAK
	Series	E
	Mount Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance Rds	1.35Ω
	Channel Mode	Enhancement
	Typical Gate Charge Qg @ Vgs	16.5nC
	Maximum Gate Source Voltage Vgs	30V
	Forward Voltage Vf	1.2V
	Maximum Power Dissipation Pd	62.5W
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	150°C
	Height	6.22mm
	Width	2.39mm
	Length	6.73mm
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Vishay
	Channel Type Type N
	Product Type Power MOSFET
	Maximum Continuous Drain Current Id 4.4A
	Maximum Drain Source Voltage Vds 800V
	Package Type IPAK
	Series E
	Mount Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance Rds 1.35Ω
	Channel Mode Enhancement
	Typical Gate Charge Qg @ Vgs 16.5nC
	Maximum Gate Source Voltage Vgs 30V
	Forward Voltage Vf 1.2V
	Maximum Power Dissipation Pd 62.5W
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 150°C
	Height 6.22mm
	Width 2.39mm
	Length 6.73mm
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - SIHU5N80AE-GE3

Vishay Series E Power MOSFET, 800V Drain Source Voltage, 4.4A Maximum Continuous Drain Current - SIHU5N80AE-GE3

This power MOSFET is a high-voltage N-channel enhancement-mode device designed for switching and power conversion in industrial and electronic systems. It is supplied in a through-hole IPAK package intended for robust board mounting and straightforward installation in control and power assemblies. The device is appropriate where elevated drain-to-source voltage capability and moderate current handling are required.

Features and Benefits:

• 800V Vds rating enabling high-voltage switching applications • 4.4A continuous drain current for moderate load delivery • 1.35Ω Rds(on) minimises conduction losses under load • 62.5W power dissipation supports sustained thermal loading • 16.5nC typical gate charge for predictable switching control • 150°C maximum operating temperature for high-temperature environments

Applications

• Suitable for high-voltage power supplies and converters • Ideal for industrial motor drive front-ends • Used for mains-side switching in lighting controls • Can be used for snubber or clamp circuits in power modules • Suitable for prototyping and repair in through-hole assemblies

What gate voltage range should I apply for safe operation?

The device accepts up to 30V between gate and source

designs typically use gate drive levels compatible with that maximum to avoid gate overstress.

How does the gate charge affect driver selection?

A 16.5nC gate charge at the rated gate drive determines required driver current and switching losses

choose a driver capable of sourcing sufficient Peak current for desired switching speed.

What environmental temperatures can it withstand during operation?

It is specified to operate down to -55°C and up to 150°C, so thermal management and junction-to-ambient considerations remain important at elevated temperatures.

Which mounting style does it require on the PCB?

It is a through-hole component in an IPAK body, so designs must include appropriate drill holes and solder pads for mechanical stability and heat transfer.
