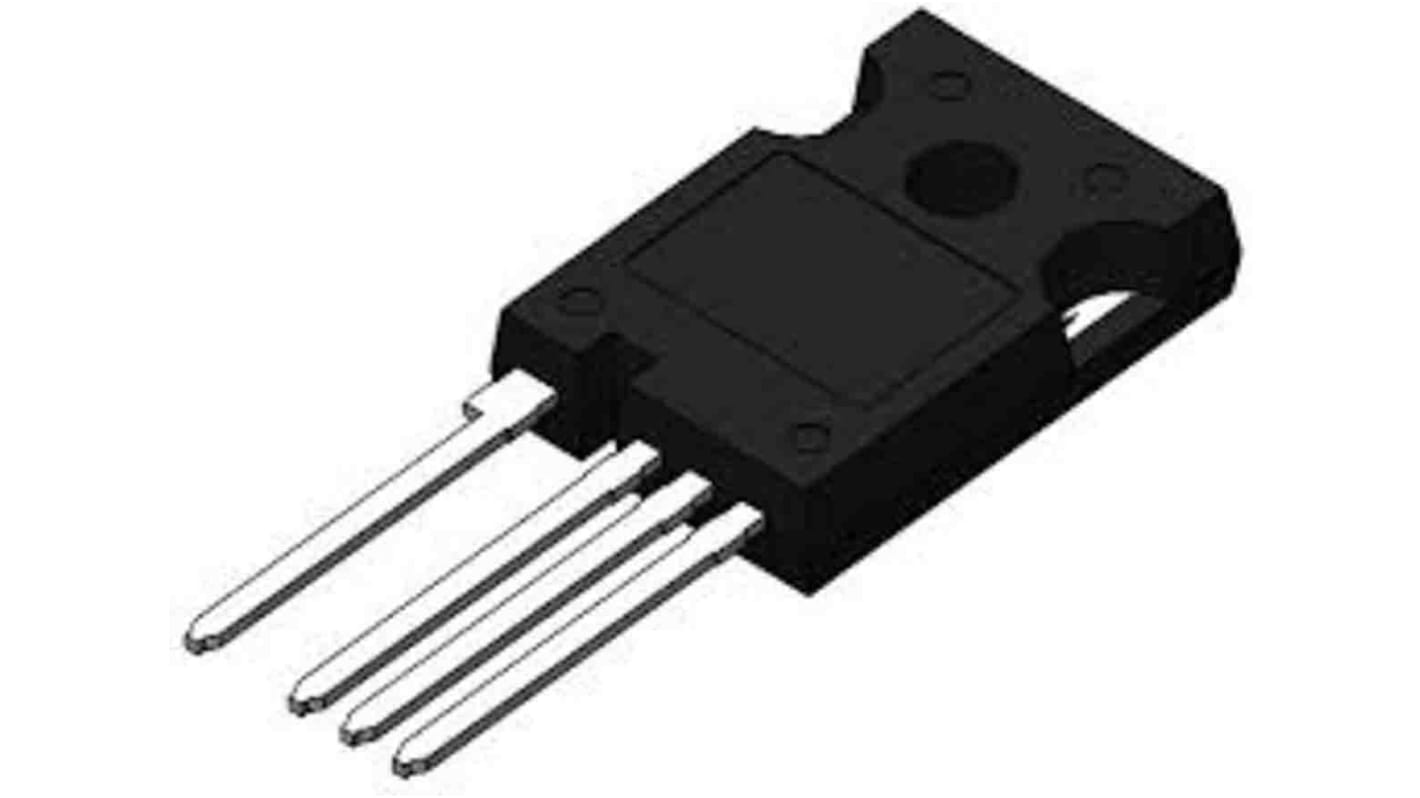

onsemi NTH Type N-Channel MOSFET, 58 A, 1200 V Enhancement, 4-Pin TO-247
- RS Stock No.:
- 202-5698
- Mfr. Part No.:
- NTH4L040N120SC1
- Brand:
- onsemi
Subtotal (1 tube of 450 units)*
£3,721.05
(exc. VAT)
£4,465.35
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 450 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 450 + | £8.269 | £3,721.05 |
*price indicative
- RS Stock No.:
- 202-5698
- Mfr. Part No.:
- NTH4L040N120SC1
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 58A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | NTH | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 56mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 3.7V | |
| Maximum Power Dissipation Pd | 319W | |
| Maximum Gate Source Voltage Vgs | 25 V | |
| Typical Gate Charge Qg @ Vgs | 106nC | |
| Maximum Operating Temperature | 175°C | |
| Width | 5.2 mm | |
| Length | 15.8mm | |
| Standards/Approvals | RoHS | |
| Height | 22.74mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 58A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series NTH | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 56mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 3.7V | ||
Maximum Power Dissipation Pd 319W | ||
Maximum Gate Source Voltage Vgs 25 V | ||
Typical Gate Charge Qg @ Vgs 106nC | ||
Maximum Operating Temperature 175°C | ||
Width 5.2 mm | ||
Length 15.8mm | ||
Standards/Approvals RoHS | ||
Height 22.74mm | ||
Automotive Standard No | ||
Silicon Carbide (SiC) MOSFET - EliteSiC, 40 mohm, 1200 V, M1, TO-247-4L Silicon Carbide (SiC) MOSFET - EliteSiC, 40 mohm, 1200 V, M1, TO-247-4L
The ON Semiconductor Silicon Carbide Power MOSFET runs with 29 Ampere and 1200 Volts. It can be used in uninterruptible power supply, Boost inverter, Industrial Motor Drive, PV Charger.
40mO drain to source on resistance
Ultra low gate charge
100% avalanche tested
Pb free
RoHS compliant
