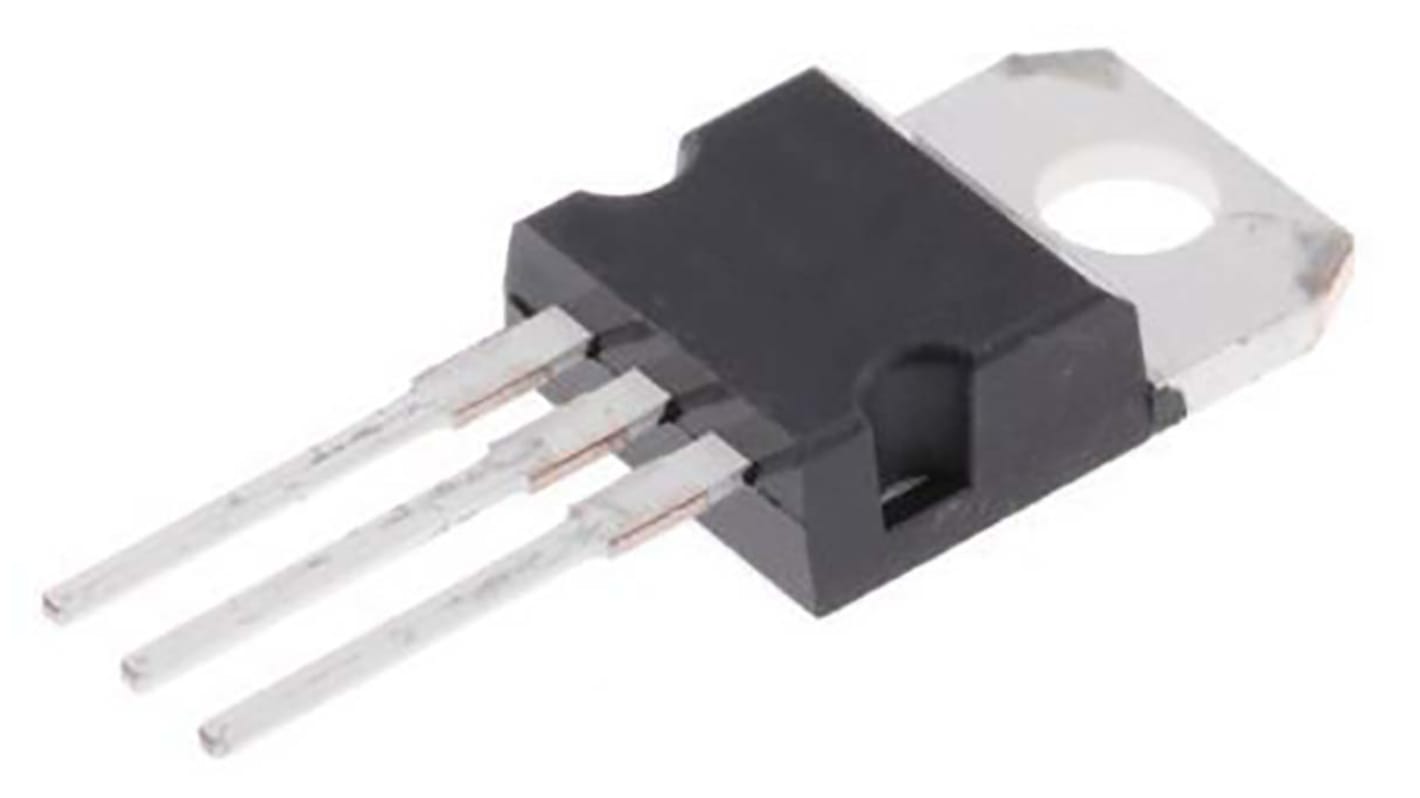

STMicroelectronics STF Type N-Channel MOSFET, 15 A, 600 V Depletion, 3-Pin TO-220 STF22N60DM6
- RS Stock No.:
- 202-4812
- Mfr. Part No.:
- STF22N60DM6
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.36
(exc. VAT)
£7.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 670 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £1.272 | £6.36 |
| 10 - 20 | £1.238 | £6.19 |
| 25 + | £1.208 | £6.04 |
*price indicative
- RS Stock No.:
- 202-4812
- Mfr. Part No.:
- STF22N60DM6
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 15A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | STF | |
| Package Type | TO-220 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 240mΩ | |
| Channel Mode | Depletion | |
| Maximum Gate Source Voltage Vgs | 25 V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 20.6nC | |
| Maximum Power Dissipation Pd | 29W | |
| Maximum Operating Temperature | 175°C | |
| Width | 4.6 mm | |
| Length | 10.4mm | |
| Standards/Approvals | No | |
| Height | 16mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 15A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series STF | ||
Package Type TO-220 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 240mΩ | ||
Channel Mode Depletion | ||
Maximum Gate Source Voltage Vgs 25 V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 20.6nC | ||
Maximum Power Dissipation Pd 29W | ||
Maximum Operating Temperature 175°C | ||
Width 4.6 mm | ||
Length 10.4mm | ||
Standards/Approvals No | ||
Height 16mm | ||
Automotive Standard No | ||
The STMicroelectronics N-channel MDmesh M6 Power MOSFET in a TO-220FP package has reduced switching losses. It also has lower RDS(on) per area vs previous generation.
100% avalanche tested
Zener-protected
