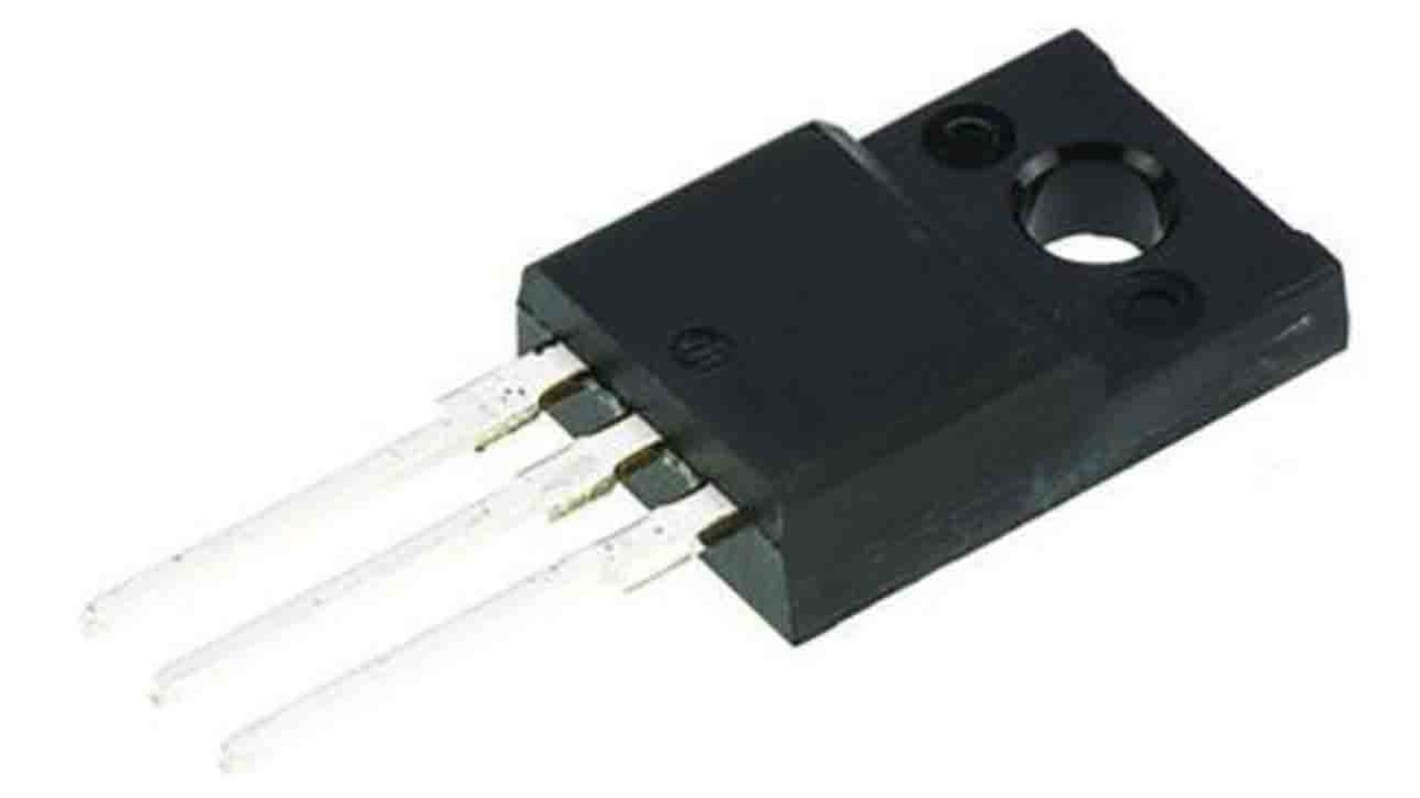

STMicroelectronics ST Type N-Channel MOSFET, 30 A, 600 V Depletion, 3-Pin TO-220 STF36N60M6
- RS Stock No.:
- 202-5513
- Mfr. Part No.:
- STF36N60M6
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 2 units)*
£8.63
(exc. VAT)
£10.356
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 176 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £4.315 | £8.63 |
| 10 - 18 | £3.66 | £7.32 |
| 20 + | £3.59 | £7.18 |
*price indicative
- RS Stock No.:
- 202-5513
- Mfr. Part No.:
- STF36N60M6
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 30A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Package Type | TO-220 | |
| Series | ST | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.085Ω | |
| Channel Mode | Depletion | |
| Maximum Power Dissipation Pd | 40W | |
| Forward Voltage Vf | 1.6V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 44.3nC | |
| Maximum Gate Source Voltage Vgs | 25 V | |
| Maximum Operating Temperature | 150°C | |
| Length | 10.4mm | |
| Standards/Approvals | No | |
| Height | 30.6mm | |
| Width | 4.6 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 30A | ||
Maximum Drain Source Voltage Vds 600V | ||
Package Type TO-220 | ||
Series ST | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.085Ω | ||
Channel Mode Depletion | ||
Maximum Power Dissipation Pd 40W | ||
Forward Voltage Vf 1.6V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 44.3nC | ||
Maximum Gate Source Voltage Vgs 25 V | ||
Maximum Operating Temperature 150°C | ||
Length 10.4mm | ||
Standards/Approvals No | ||
Height 30.6mm | ||
Width 4.6 mm | ||
Automotive Standard No | ||
The STMicroelectronics new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology.
Low gate input resistance
100% avalanche tested
Zener-protected
