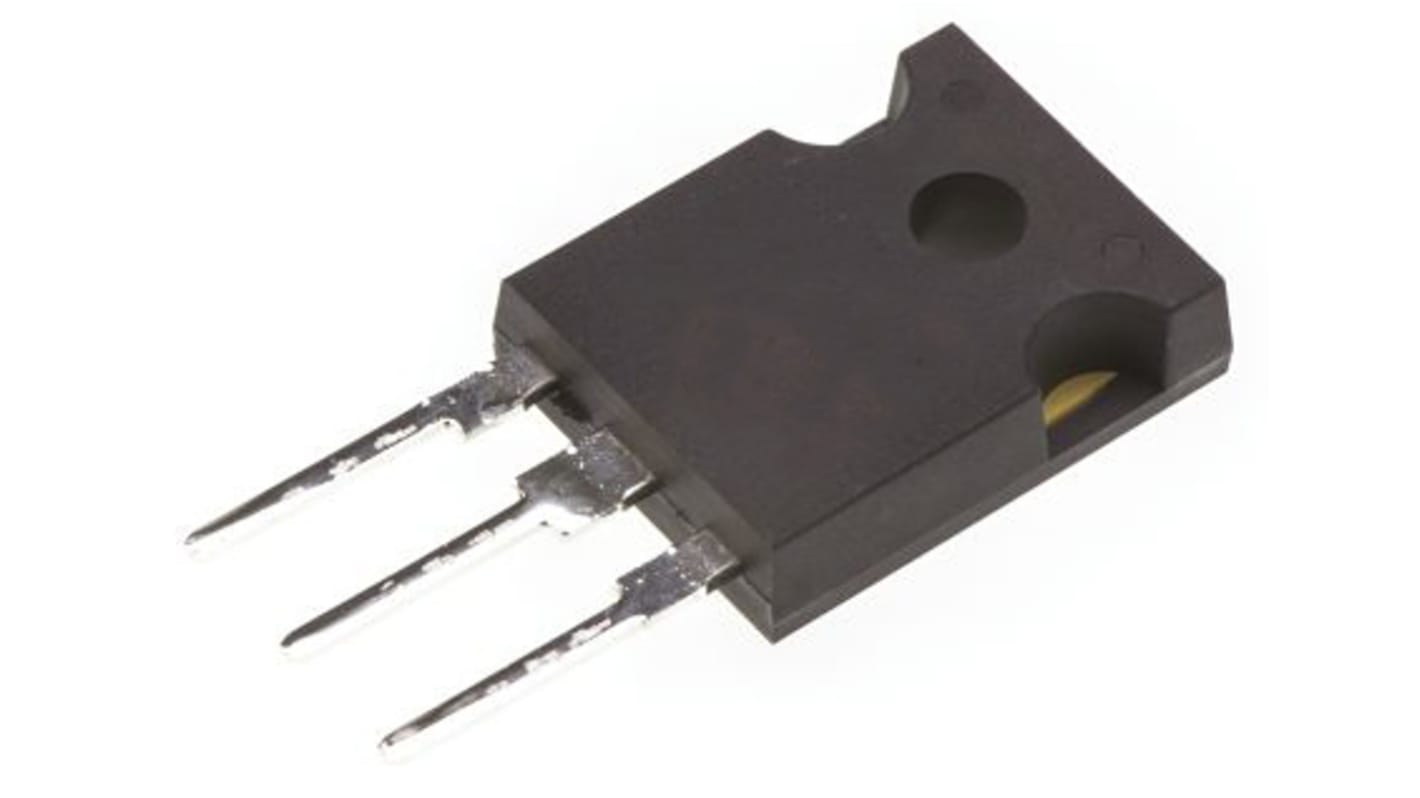

STMicroelectronics N-Channel MOSFET, 72 A, 600 V, 3-Pin TO-247 STWA75N60M6

View all MOSFETs
Bulk discount available

Subtotal (1 tube of 30 units)*

£221.58

(exc. VAT)

£265.89

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 30£7.386£221.58
60 - 60£7.194£215.82
90 +£7.017£210.51

*price indicative

RS Stock No.:
195-2680
Mfr. Part No.:
STWA75N60M6
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Channel Type

N

Maximum Continuous Drain Current

72 A

Maximum Drain Source Voltage

600 V

Package Type

TO-247

Mounting Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance

36 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

4.75V

Minimum Gate Threshold Voltage

3.25V

Maximum Power Dissipation

446 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±25 V

Length

15.9mm

Width

5.1mm

Maximum Operating Temperature

+150 °C

Number of Elements per Chip

1

Typical Gate Charge @ Vgs

106 nC @ 10 V

Minimum Operating Temperature

-55 °C

Height

21.1mm

Forward Diode Voltage

1.6V

COO (Country of Origin):
CN
The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on) per area improvement with one of the most effective switching behaviors available, as well as a user-friendly experience for maximum end-application efficiency.

Reduced switching losses
Lower RDS(on) per area vs previous generation
Low gate input resistance
Zener-protected
