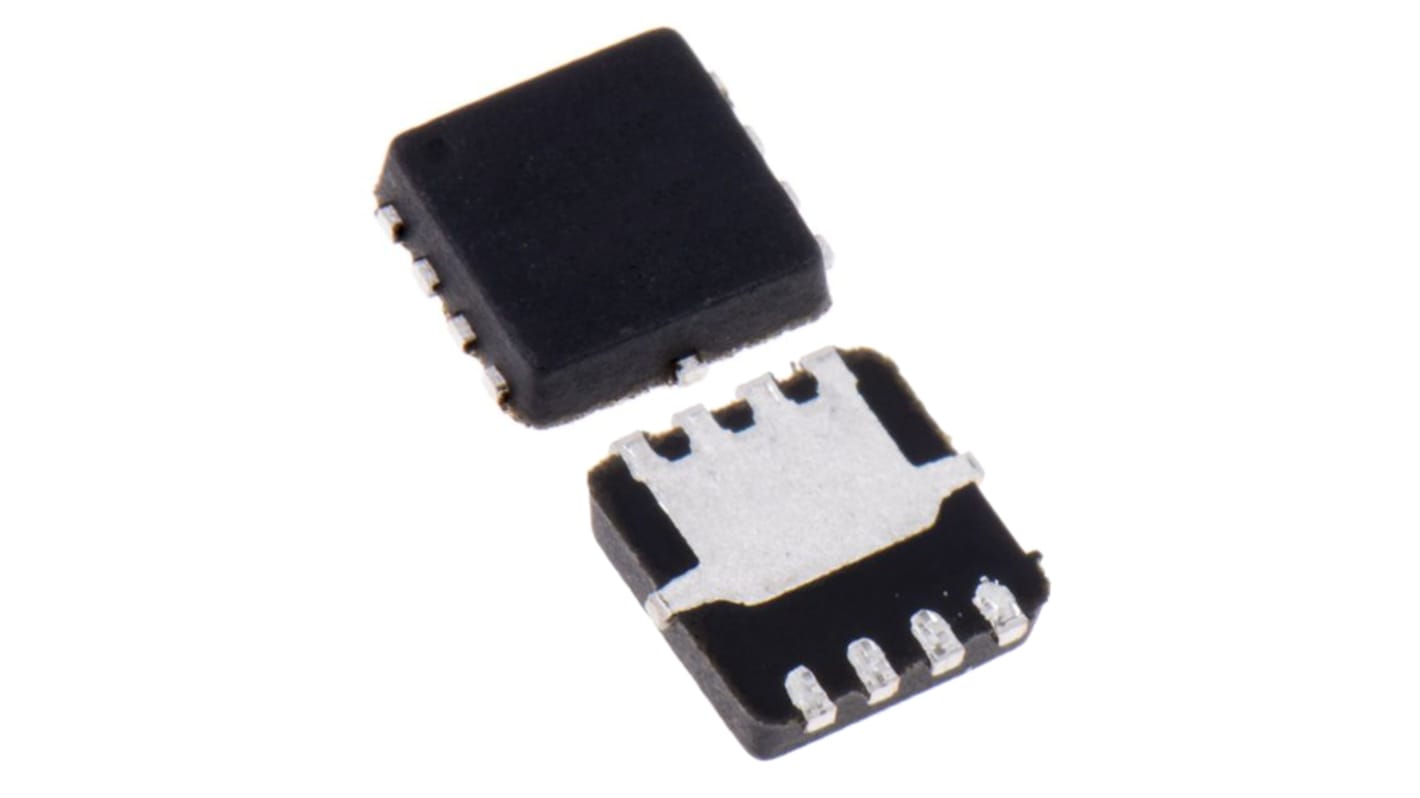

onsemi NVTFS010N10MCL Type N-Channel MOSFET, 57.8 A, 100 V Enhancement, 8-Pin WDFN NVTFS010N10MCLTAG
- RS Stock No.:
- 195-2554
- Mfr. Part No.:
- NVTFS010N10MCLTAG
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 30 units)*
£22.14
(exc. VAT)
£26.58
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 5,040 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 30 - 90 | £0.738 | £22.14 |
| 120 - 270 | £0.636 | £19.08 |
| 300 + | £0.552 | £16.56 |
*price indicative
- RS Stock No.:
- 195-2554
- Mfr. Part No.:
- NVTFS010N10MCLTAG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 57.8A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | WDFN | |
| Series | NVTFS010N10MCL | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 15.9mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.3V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 77.8W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 22nC | |
| Maximum Operating Temperature | 175°C | |
| Length | 3.3mm | |
| Width | 3.15 mm | |
| Height | 0.75mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 57.8A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type WDFN | ||
Series NVTFS010N10MCL | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 15.9mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.3V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 77.8W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 22nC | ||
Maximum Operating Temperature 175°C | ||
Length 3.3mm | ||
Width 3.15 mm | ||
Height 0.75mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
Automotive Power MOSFET in a 3x3mm flat lead package designed for compact and efficient designs and including high thermal performance. Wettable Flank Option available for Enhanced Optical Inspection. MOSFET and PPAP capable suitable for automotive applications.
Small Footprint (3x3 mm)
Compact Design
Low On-Resistance
Minimizes Conduction Losses
Low Capacitance
Minimize Driver Losses
PPAP Capable
Suitable for Automotive Applications
Application
Reverser Battery protection
Power switches (High Side Driver, Low Side Driver, H-Bridges etc.)
Switching power supplies
