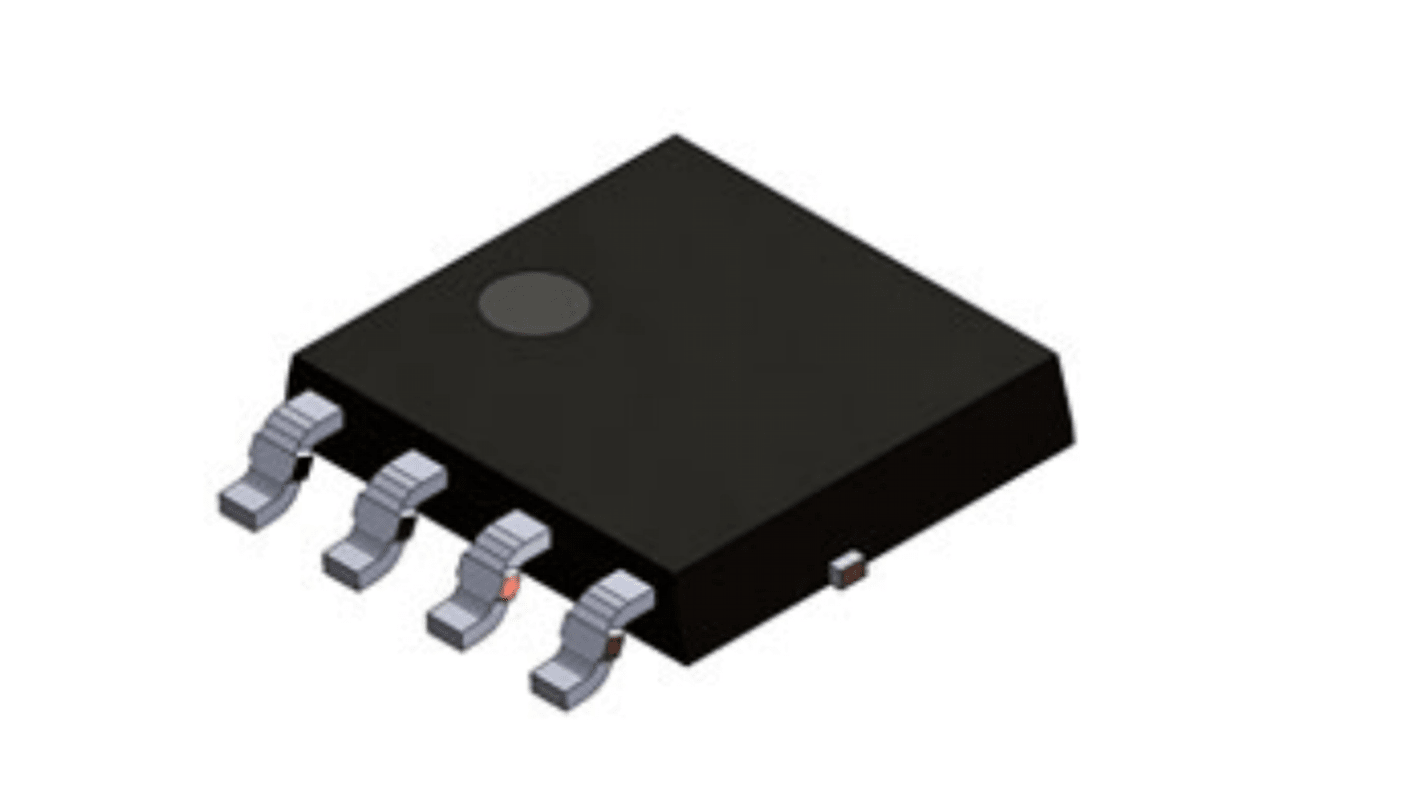

onsemi N-Channel MOSFET, 300 A, 40 V, 8-Pin LFPAK8 NTMJS1D0N04CTWG

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 5 units)*

£10.30

(exc. VAT)

£12.35

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,995 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£2.06£10.30
50 - 95£1.776£8.88
100 +£1.54£7.70

*price indicative

Packaging Options:
RS Stock No.:
189-0506
Mfr. Part No.:
NTMJS1D0N04CTWG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Channel Type

N

Maximum Continuous Drain Current

300 A

Maximum Drain Source Voltage

40 V

Package Type

LFPAK8

Mounting Type

Surface Mount

Pin Count

8

Maximum Drain Source Resistance

920 μΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

3.5V

Minimum Gate Threshold Voltage

2.5V

Maximum Power Dissipation

166 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±20 V

Width

4.9mm

Number of Elements per Chip

1

Typical Gate Charge @ Vgs

86 nC @ 10 V

Length

5mm

Maximum Operating Temperature

+175 °C

Minimum Operating Temperature

-55 °C

Height

1.2mm

Forward Diode Voltage

1.2V

Small Footprint (5x6 mm) for Compact Design
Low RDS(on) to Minimize Conduction Losses
Low QG and Capacitance to Minimize Driver Losses
LFPAK-E Package, Industry Standard
These Devices are Pb-Free
