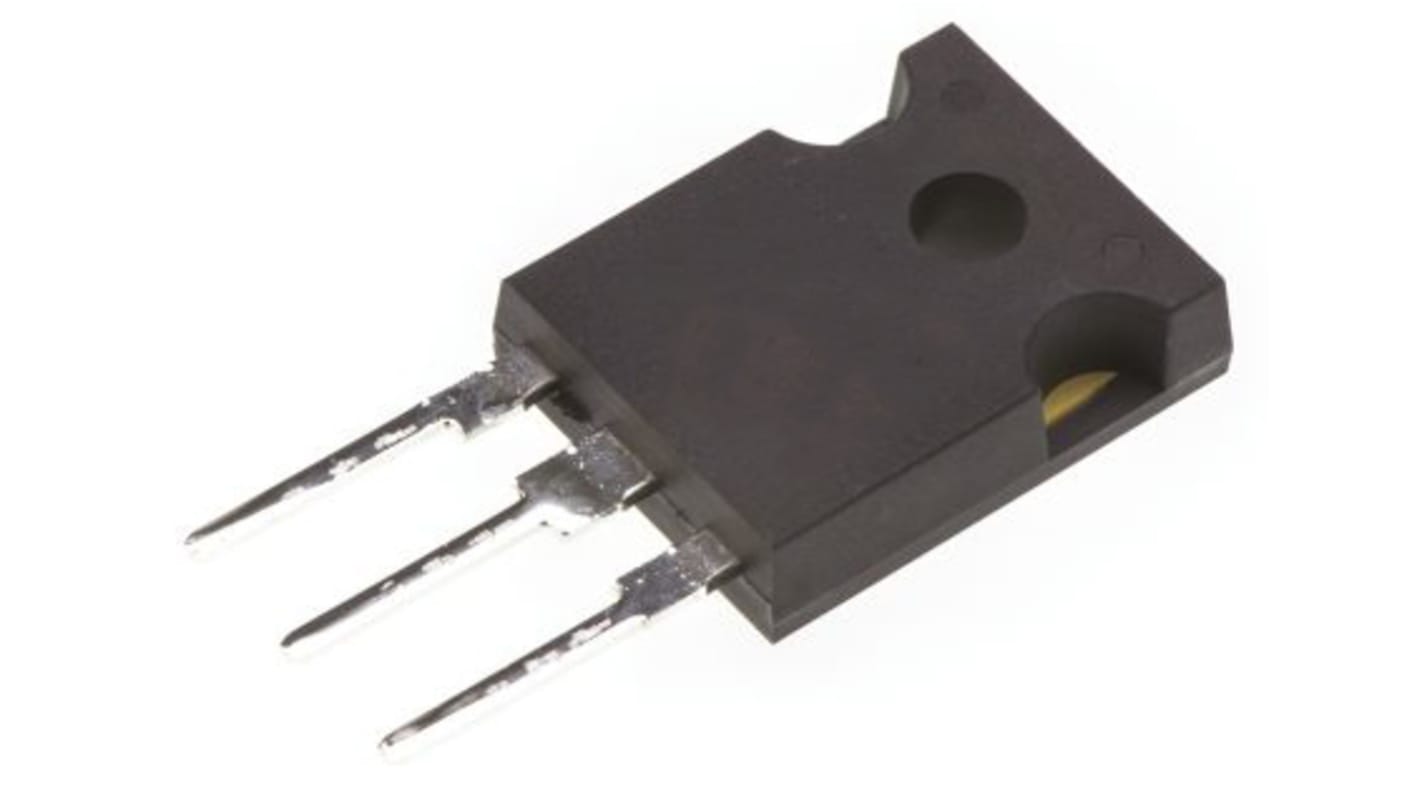

onsemi N-Channel MOSFET, 20 A, 650 V, 3-Pin TO-247 NTHL190N65S3HF
- RS Stock No.:
- 189-0461
- Mfr. Part No.:
- NTHL190N65S3HF
- Brand:
- onsemi
Subtotal (1 pack of 5 units)*
£24.05
(exc. VAT)
£28.85
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 20 February 2026
Units | Per unit | Per Pack* |
---|---|---|
5 + | £4.81 | £24.05 |
*price indicative
- RS Stock No.:
- 189-0461
- Mfr. Part No.:
- NTHL190N65S3HF
- Brand:
- onsemi
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Channel Type | N | |
Maximum Continuous Drain Current | 20 A | |
Maximum Drain Source Voltage | 650 V | |
Package Type | TO-247 | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 190 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 5V | |
Minimum Gate Threshold Voltage | 3V | |
Maximum Power Dissipation | 162 W | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | ±30 V | |
Maximum Operating Temperature | +150 °C | |
Length | 15.87mm | |
Typical Gate Charge @ Vgs | 34 nC @ 10 V | |
Width | 4.82mm | |
Number of Elements per Chip | 1 | |
Height | 20.82mm | |
Forward Diode Voltage | 1.3V | |
Minimum Operating Temperature | -55 °C | |
Select all | ||
---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 20 A | ||
Maximum Drain Source Voltage 650 V | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 190 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 5V | ||
Minimum Gate Threshold Voltage 3V | ||
Maximum Power Dissipation 162 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±30 V | ||
Maximum Operating Temperature +150 °C | ||
Length 15.87mm | ||
Typical Gate Charge @ Vgs 34 nC @ 10 V | ||
Width 4.82mm | ||
Number of Elements per Chip 1 | ||
Height 20.82mm | ||
Forward Diode Voltage 1.3V | ||
Minimum Operating Temperature -55 °C | ||
Ultra Low Gate Charge (Typ. Qg = 35 nC)
Low Effective Output Capacitance (Typ. Coss(eff.) = 467 pF)
Excellent body diode performance (low Qrr, robust body diode)
Optimized Capacitance
Typ. RDS(on) = 161 mΩ
Benefits
Higher system reliability at low temperature operation
Lower switching loss
Higher system reliability in LLC and Phase shift full bridge circuit
Lower peak Vds and lower Vgs oscillation
Applications
Telecommunication
Cloud system
Industrial
End Products
Telecom power
Server power
EV charger
Solar / UPS
