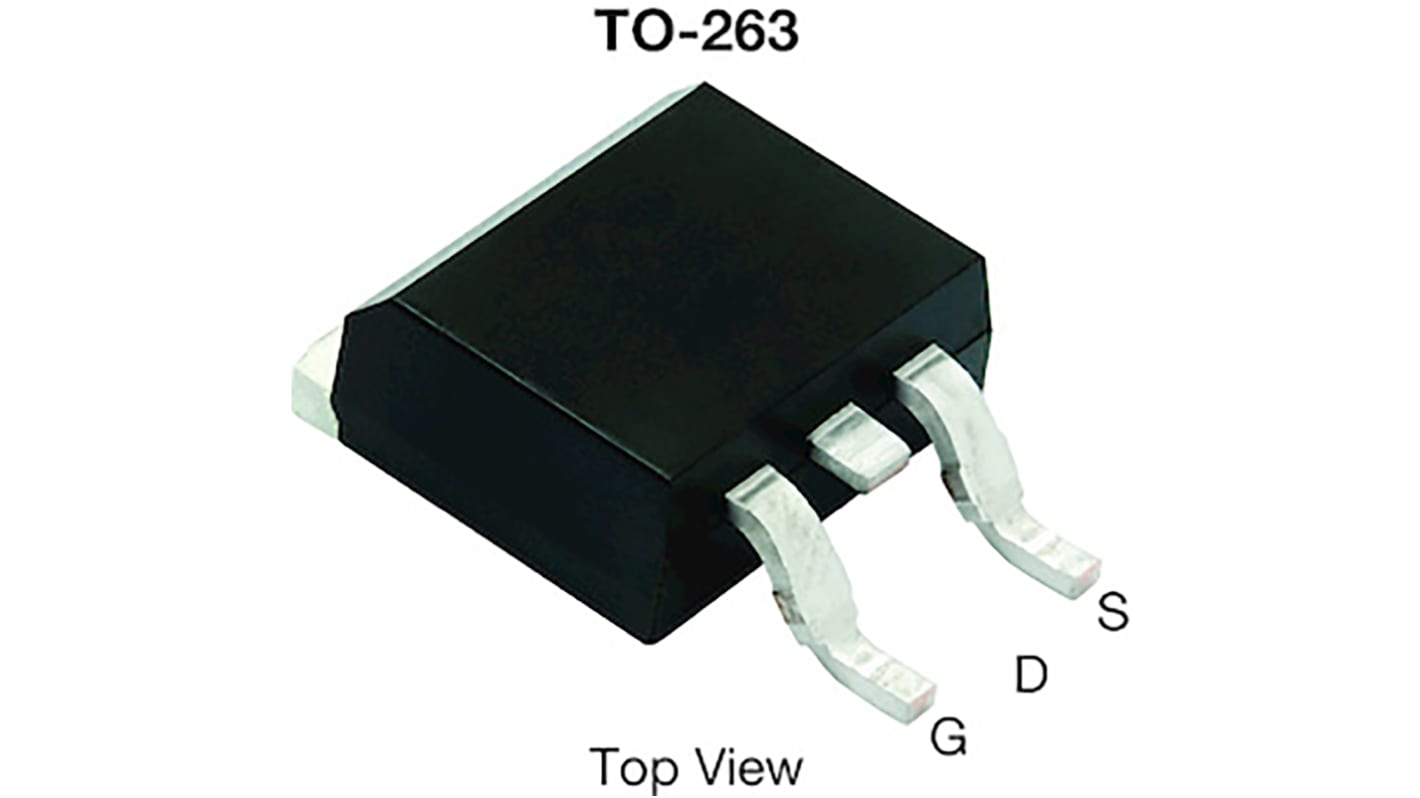

Vishay N-Channel MOSFET, 120 A, 40 V, 3-Pin D2PAK SQM40041EL_GE3
- RS Stock No.:
- 188-5006
- Mfr. Part No.:
- SQM40041EL_GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£13.49
(exc. VAT)
£16.19
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 660 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.698 | £13.49 |
| 50 - 120 | £2.296 | £11.48 |
| 125 - 245 | £2.158 | £10.79 |
| 250 - 495 | £2.026 | £10.13 |
| 500 + | £1.89 | £9.45 |
*price indicative
- RS Stock No.:
- 188-5006
- Mfr. Part No.:
- SQM40041EL_GE3
- Brand:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 120 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | D2PAK (TO-263) | |
| Mounting Type | Surface Mount | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 4.8 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.5V | |
| Minimum Gate Threshold Voltage | 1.5V | |
| Maximum Power Dissipation | 157 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | ±20 V | |
| Length | 10.41mm | |
| Width | 9.65mm | |
| Typical Gate Charge @ Vgs | 288 nC @ 10 V | |
| Maximum Operating Temperature | +175 °C | |
| Number of Elements per Chip | 1 | |
| Automotive Standard | AEC-Q101 | |
| Minimum Operating Temperature | -55 °C | |
| Forward Diode Voltage | 1.5V | |
| Height | 4.57mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type N | ||
Maximum Continuous Drain Current 120 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type D2PAK (TO-263) | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 4.8 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Minimum Gate Threshold Voltage 1.5V | ||
Maximum Power Dissipation 157 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±20 V | ||
Length 10.41mm | ||
Width 9.65mm | ||
Typical Gate Charge @ Vgs 288 nC @ 10 V | ||
Maximum Operating Temperature +175 °C | ||
Number of Elements per Chip 1 | ||
Automotive Standard AEC-Q101 | ||
Minimum Operating Temperature -55 °C | ||
Forward Diode Voltage 1.5V | ||
Height 4.57mm | ||
