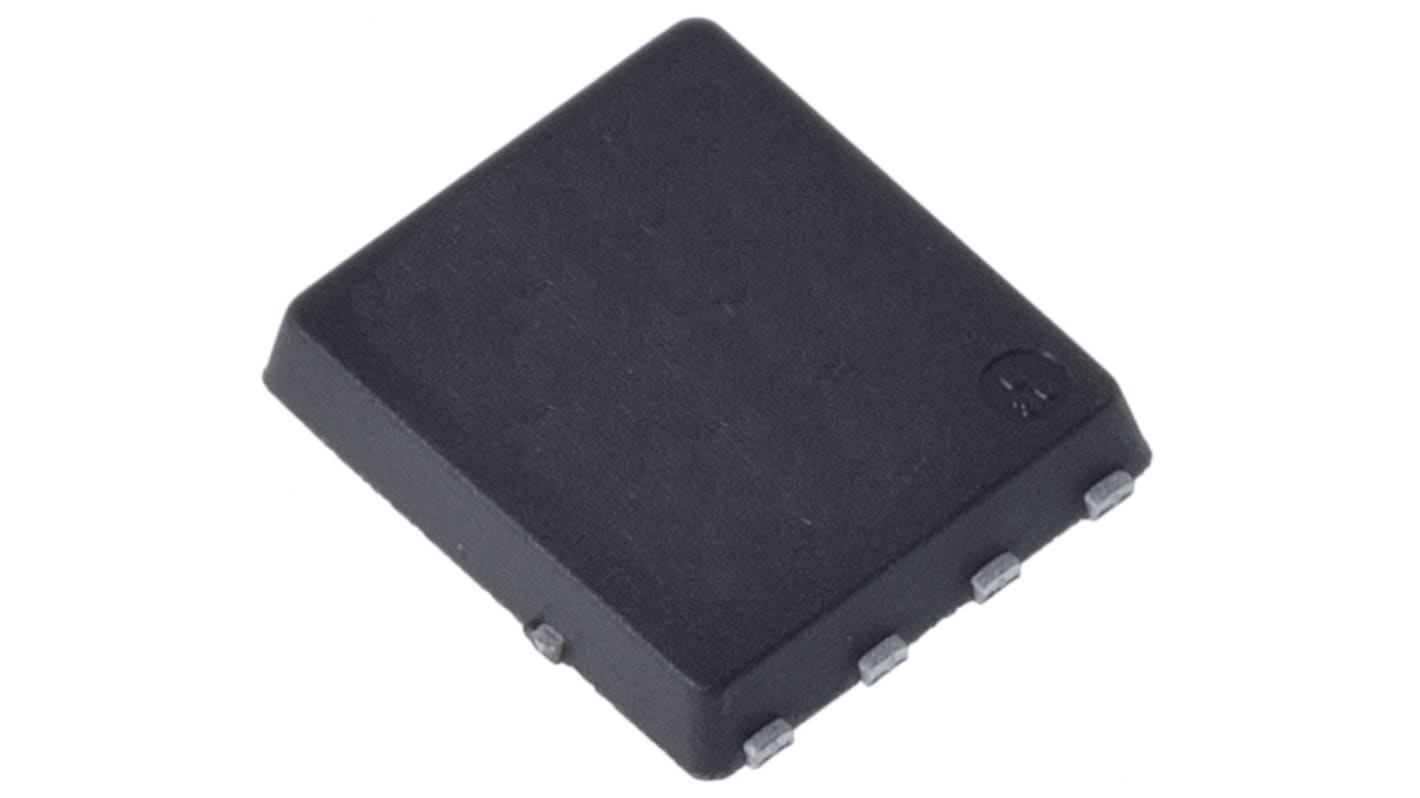

Infineon OptiMOS™ N-Channel MOSFET, 100 A, 30 V, 8-Pin TDSON BSC011N03LSATMA1

View all MOSFETs

Subtotal (1 reel of 5000 units)*

£2,500.00

(exc. VAT)

£3,000.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
5000 +£0.50£2,500.00

*price indicative

RS Stock No.:
178-7481
Mfr. Part No.:
BSC011N03LSATMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Channel Type

N

Maximum Continuous Drain Current

100 A

Maximum Drain Source Voltage

30 V

Package Type

TDSON

Series

OptiMOS™

Mounting Type

Surface Mount

Pin Count

8

Maximum Drain Source Resistance

1.4 mΩ

Channel Mode

Enhancement

Maximum Power Dissipation

96 W

Transistor Configuration

Single

Maximum Gate Source Voltage

-20 V, +20 V

Length

6.1mm

Number of Elements per Chip

1

Width

5.35mm

Typical Gate Charge @ Vgs

36 nC @ 4.5 V

Transistor Material

Si

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-55 °C

Forward Diode Voltage

1V

Height

1.1mm
