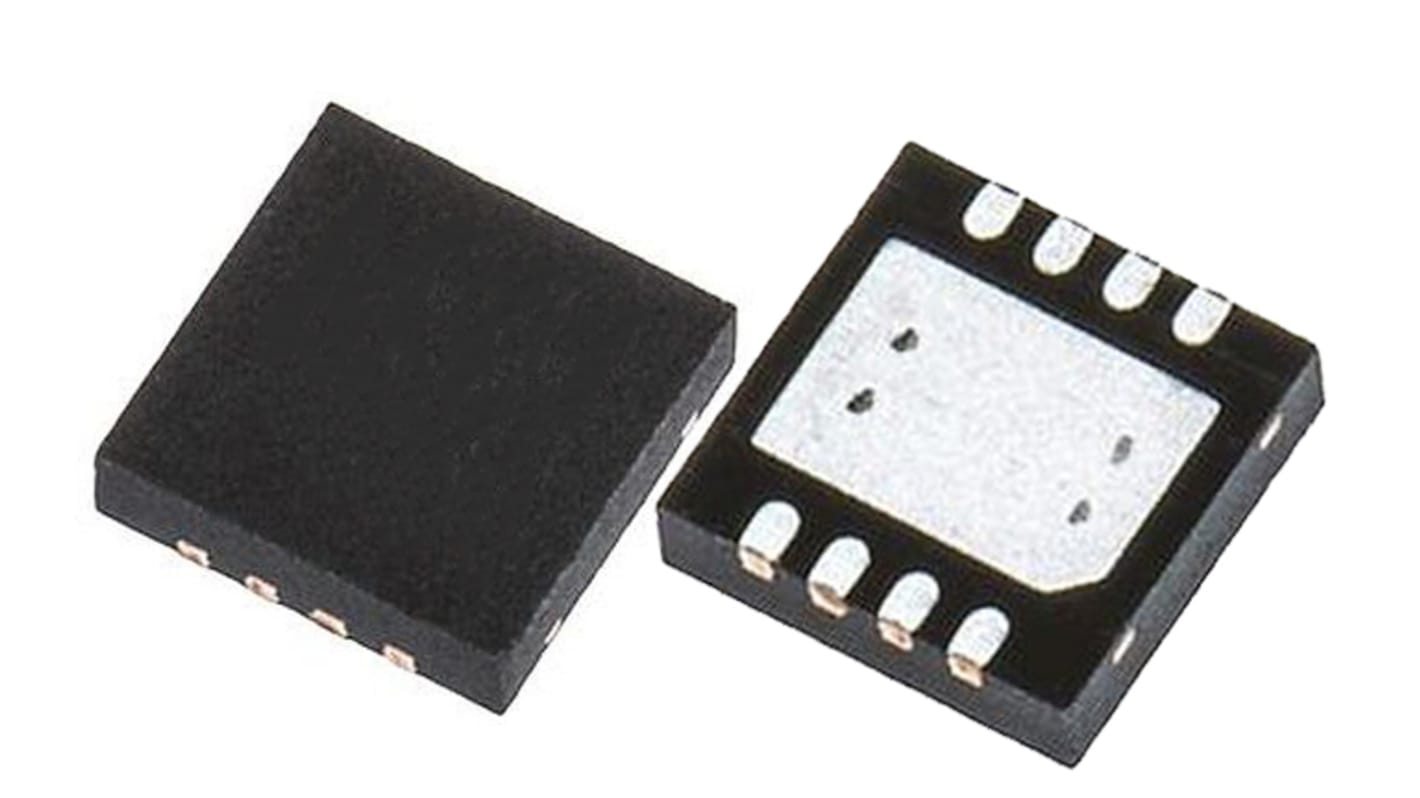

onsemi Dual N-Channel MOSFET, 70 A, 40 V, 8-Pin DFN NVMFD5C462NT1G
- RS Stock No.:
- 178-4297
- Mfr. Part No.:
- NVMFD5C462NT1G
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 178-4297
- Mfr. Part No.:
- NVMFD5C462NT1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Channel Type | N | |
Maximum Continuous Drain Current | 70 A | |
Maximum Drain Source Voltage | 40 V | |
Package Type | DFN | |
Mounting Type | Surface Mount | |
Pin Count | 8 | |
Maximum Drain Source Resistance | 5.4 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 3.5V | |
Minimum Gate Threshold Voltage | 2.5V | |
Maximum Power Dissipation | 50 W | |
Maximum Gate Source Voltage | ±20 V | |
Maximum Operating Temperature | +175 °C | |
Width | 6.1mm | |
Length | 5.1mm | |
Number of Elements per Chip | 2 | |
Typical Gate Charge @ Vgs | 16 nC @ 10 V | |
Minimum Operating Temperature | -55 °C | |
Forward Diode Voltage | 1.2V | |
Height | 1.05mm | |
Select all | ||
---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 70 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type DFN | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 5.4 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.5V | ||
Minimum Gate Threshold Voltage 2.5V | ||
Maximum Power Dissipation 50 W | ||
Maximum Gate Source Voltage ±20 V | ||
Maximum Operating Temperature +175 °C | ||
Width 6.1mm | ||
Length 5.1mm | ||
Number of Elements per Chip 2 | ||
Typical Gate Charge @ Vgs 16 nC @ 10 V | ||
Minimum Operating Temperature -55 °C | ||
Forward Diode Voltage 1.2V | ||
Height 1.05mm | ||
- COO (Country of Origin):
- MY
Automotive Power MOSFET in a 5 x 6 mm flat lead package designed for compact and efficient designs and including high thermal performance. Wettable Flank Option available for Enhanced Optical Inspection.Suitable for automotive applications.
Features
Low on resistance
High current capability
Benefits
Minimal conduction losses
Robust load performance
Safeguard against voltage overstress failures
Suitable for automotive applications
Applications
Solenoid driver
Low side / high side driver
End Products
Automotive engine controllers
Antilock braking systems
Low on resistance
High current capability
Benefits
Minimal conduction losses
Robust load performance
Safeguard against voltage overstress failures
Suitable for automotive applications
Applications
Solenoid driver
Low side / high side driver
End Products
Automotive engine controllers
Antilock braking systems
