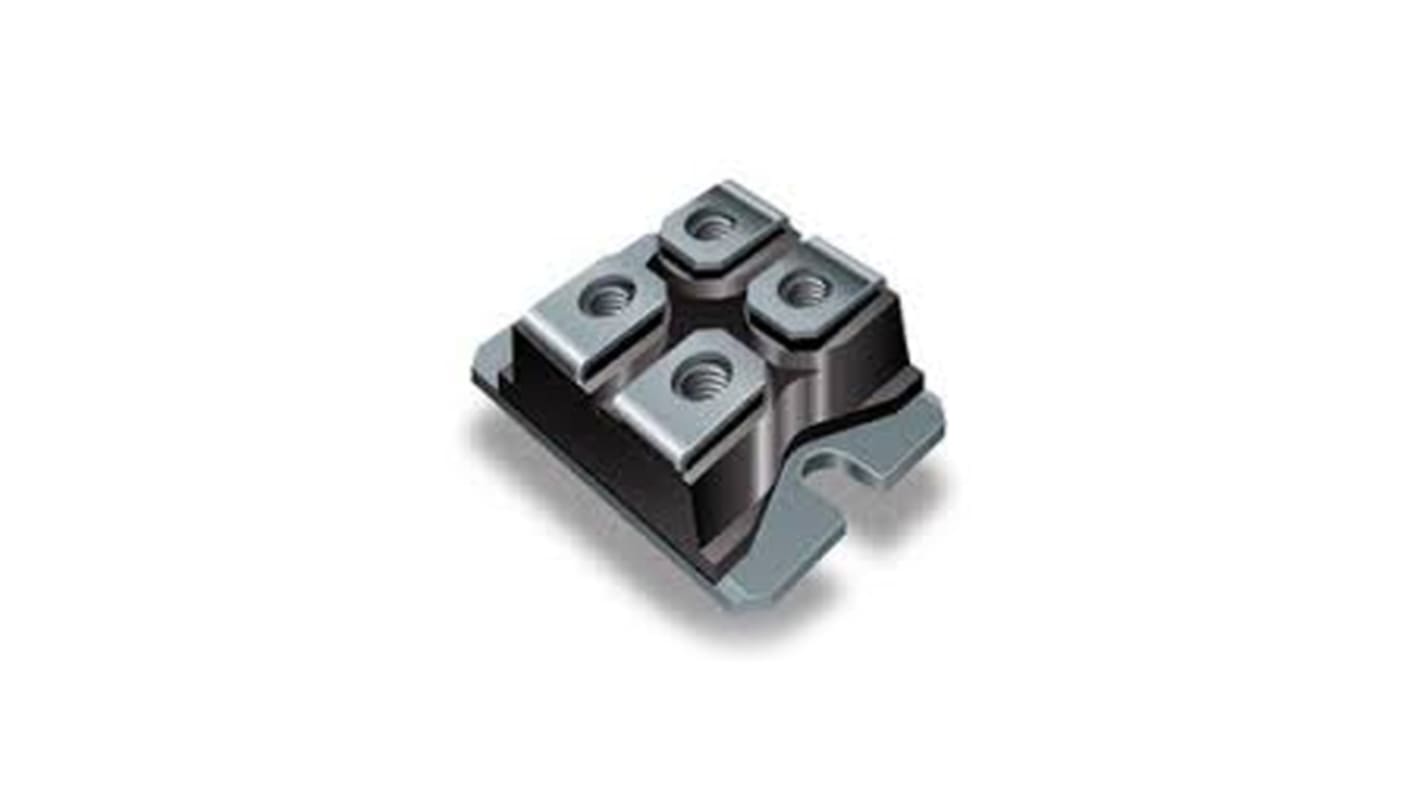

IXYS HiperFET, Polar3 N-Channel MOSFET, 192 A, 300 V, 4-Pin SOT-227 IXFN210N30P3

View all MOSFETs

Subtotal (1 tube of 10 units)*

£296.94

(exc. VAT)

£356.33

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Tube*
10 +£29.694£296.94

*price indicative

RS Stock No.:
177-5342
Mfr. Part No.:
IXFN210N30P3
Brand:
IXYS
Find similar products by selecting one or more attributes.
Select all

Brand

IXYS

Channel Type

N

Maximum Continuous Drain Current

192 A

Maximum Drain Source Voltage

300 V

Package Type

SOT-227

Series

HiperFET, Polar3

Mounting Type

Screw Mount

Pin Count

4

Maximum Drain Source Resistance

14.5 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

5V

Maximum Power Dissipation

1.5 kW

Transistor Configuration

Single

Maximum Gate Source Voltage

-20 V, +20 V

Number of Elements per Chip

1

Width

25.07mm

Length

38.23mm

Typical Gate Charge @ Vgs

268 nC @ 10 V

Transistor Material

Si

Maximum Operating Temperature

+150 °C

Height

9.6mm

Minimum Operating Temperature

-55 °C
