Nexperia BUK9Y59 N-Channel MOSFET, 16.7 A, 60 V, 4-Pin LFPAK, SOT-669 BUK9Y59-60E,115
- RS Stock No.:
- 170-5446
- Mfr. Part No.:
- BUK9Y59-60E,115
- Brand:
- Nexperia
Subtotal (1 pack of 25 units)*
£7.55
(exc. VAT)
£9.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,325 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £0.302 | £7.55 |
*price indicative
- RS Stock No.:
- 170-5446
- Mfr. Part No.:
- BUK9Y59-60E,115
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 16.7 A | |
| Maximum Drain Source Voltage | 60 V | |
| Package Type | LFPAK, SOT-669 | |
| Series | BUK9Y59 | |
| Mounting Type | Surface Mount | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance | 133 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.45V | |
| Minimum Gate Threshold Voltage | 0.5V | |
| Maximum Power Dissipation | 37 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | 10 V | |
| Number of Elements per Chip | 1 | |
| Length | 5mm | |
| Maximum Operating Temperature | +175 °C | |
| Typical Gate Charge @ Vgs | 6.1 nC @ 5 V | |
| Width | 4.1mm | |
| Automotive Standard | AEC-Q101 | |
| Height | 1.05mm | |
| Minimum Operating Temperature | -55 °C | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Channel Type N | ||
Maximum Continuous Drain Current 16.7 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type LFPAK, SOT-669 | ||
Series BUK9Y59 | ||
Mounting Type Surface Mount | ||
Pin Count 4 | ||
Maximum Drain Source Resistance 133 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.45V | ||
Minimum Gate Threshold Voltage 0.5V | ||
Maximum Power Dissipation 37 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage 10 V | ||
Number of Elements per Chip 1 | ||
Length 5mm | ||
Maximum Operating Temperature +175 °C | ||
Typical Gate Charge @ Vgs 6.1 nC @ 5 V | ||
Width 4.1mm | ||
Automotive Standard AEC-Q101 | ||
Height 1.05mm | ||
Minimum Operating Temperature -55 °C | ||
- COO (Country of Origin):
- PH
From driving a simple lamp to the sophisticated needs of power control in engine, body or chassis applications, Nexperia power semiconductors can provide the answer to many automotive system power problems.
Suitable for thermally demanding environments due to 175°C rating Focus MOSFET applications Electric Power Steering Engine management Integrated starter generator Transmission Control Automotive Lighting Braking (ABS) Climate control

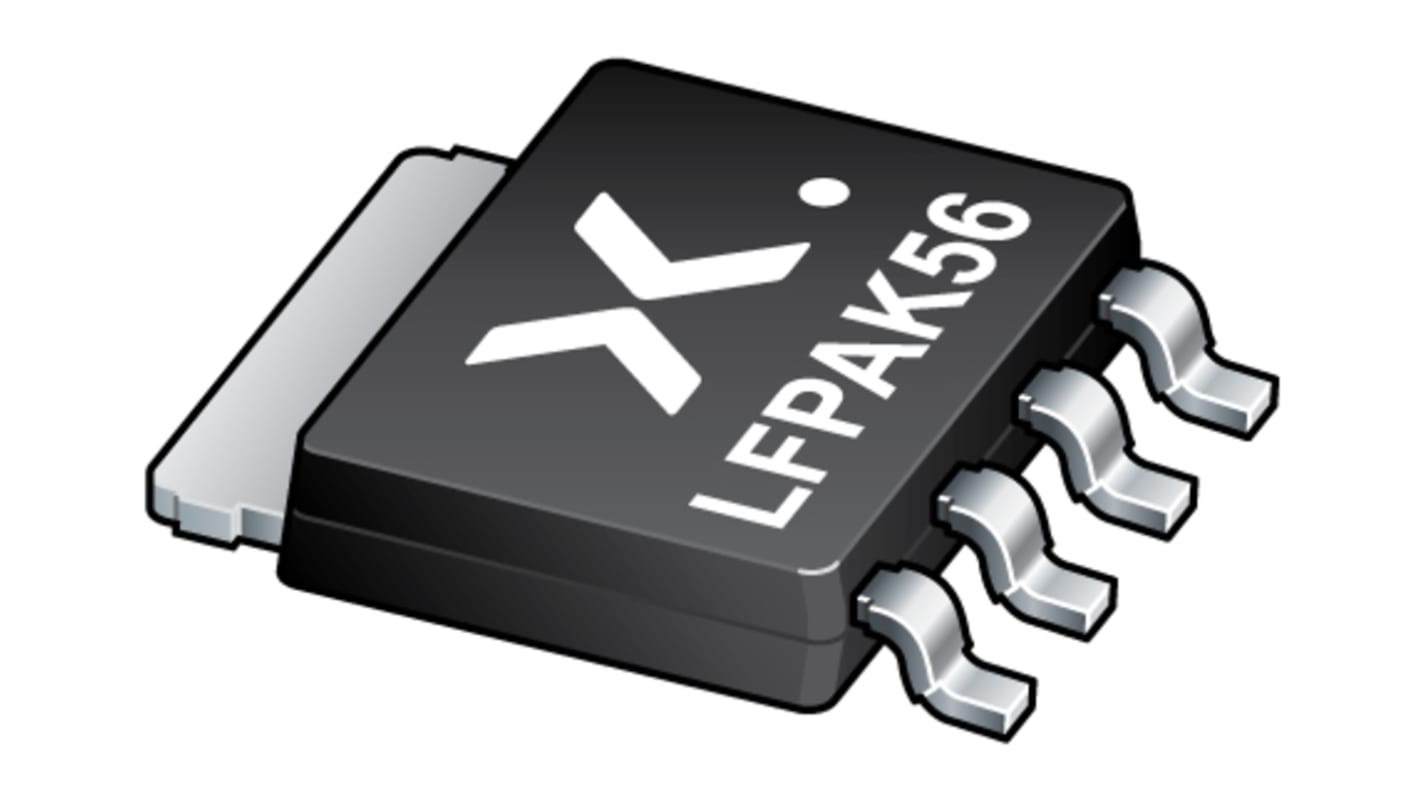

Logic level N-channel MOSFET in an LFPAK56 (Power SO8) package using TrenchMOS technology. This product has been designed for use in high performance automotive applications.
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
12 V Automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
Suitable for thermally demanding environments due to 175 °C rating
True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
12 V Automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
