- RS Stock No.:
- 146-4374
- Mfr. Part No.:
- IXFK66N85X
- Brand:
- IXYS
Available to back order for despatch 13/05/2025
Added
Price Each
£21.85
(exc. VAT)
£26.22
(inc. VAT)
Units | Per unit |
1 - 4 | £21.85 |
5 - 9 | £18.49 |
10 + | £17.72 |
- RS Stock No.:
- 146-4374
- Mfr. Part No.:
- IXFK66N85X
- Brand:
- IXYS
Technical Reference
Legislation and Compliance

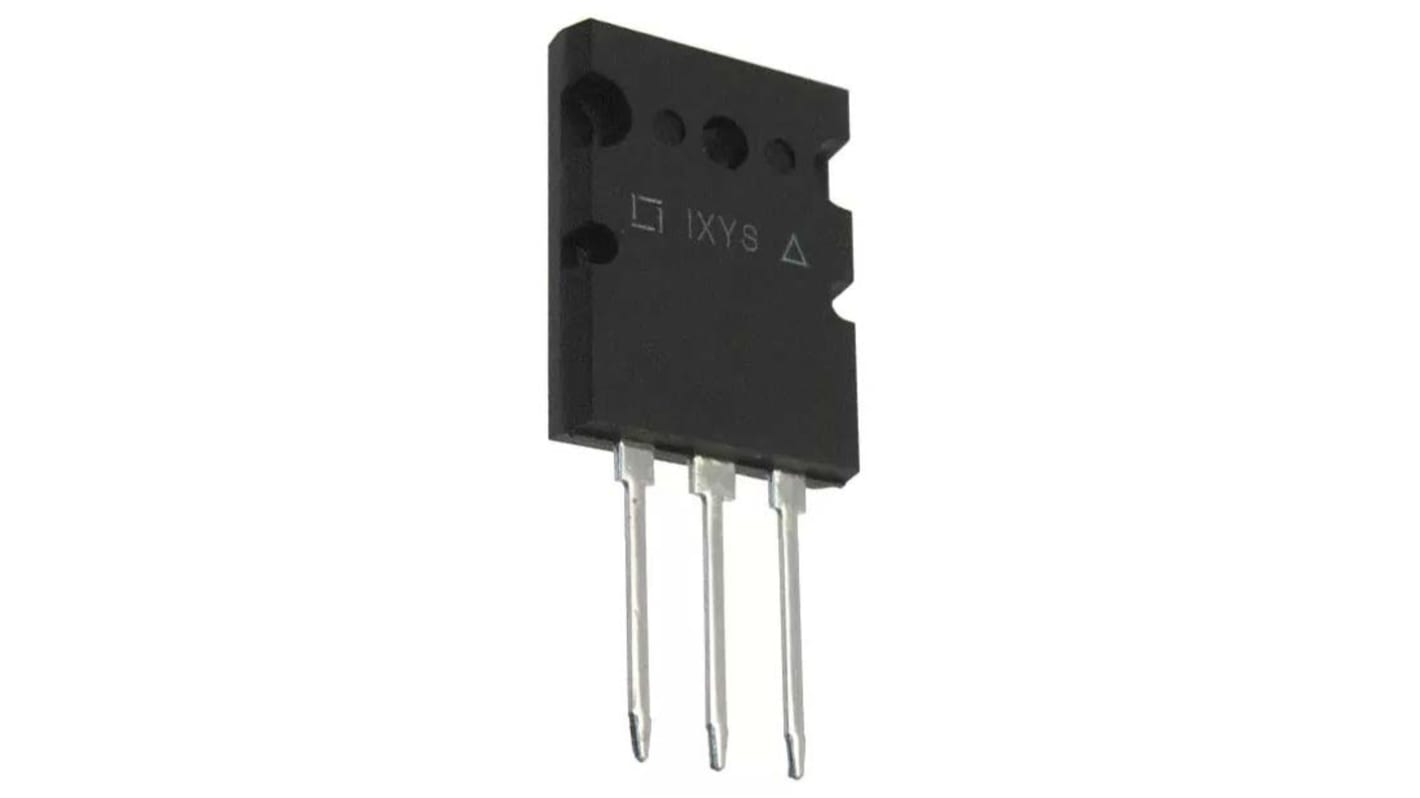

Product Details
The 850V Ultra-Junction X-Class Power MOSFETs with fast body diodes represent a new power semiconductor product line from IXYS Corporation. These rugged devices display the lowest on-state resistances in the industry, enabling very high power density in high-voltage power conversion applications. Developed using the charge compensation principle and proprietary process technology, the new 850V devices exhibit the lowest on-state resistances (33 milliohm in the SOT-227 package and 41 milliohm in the PLUS264, for instance), along with low gate charges and superior dv/dt performance.
Ultra low on-resistance RDS(ON) and gate charge Qg
Fast body diode
dv/dt ruggedness
Avalanche rated
Low package inductance
International standard packages
Fast body diode
dv/dt ruggedness
Avalanche rated
Low package inductance
International standard packages
Specifications
Attribute | Value |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 66 A |
Maximum Drain Source Voltage | 850 V |
Series | HiperFET |
Package Type | TO-264 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 65 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5.5V |
Minimum Gate Threshold Voltage | 3.5V |
Maximum Power Dissipation | 1.25 kW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V |
Number of Elements per Chip | 1 |
Width | 5.3mm |
Typical Gate Charge @ Vgs | 230 nC @ 10 V |
Maximum Operating Temperature | +150 °C |
Length | 20.3mm |
Forward Diode Voltage | 1.4V |
Minimum Operating Temperature | -55 °C |
Height | 26.3mm |
