MPN

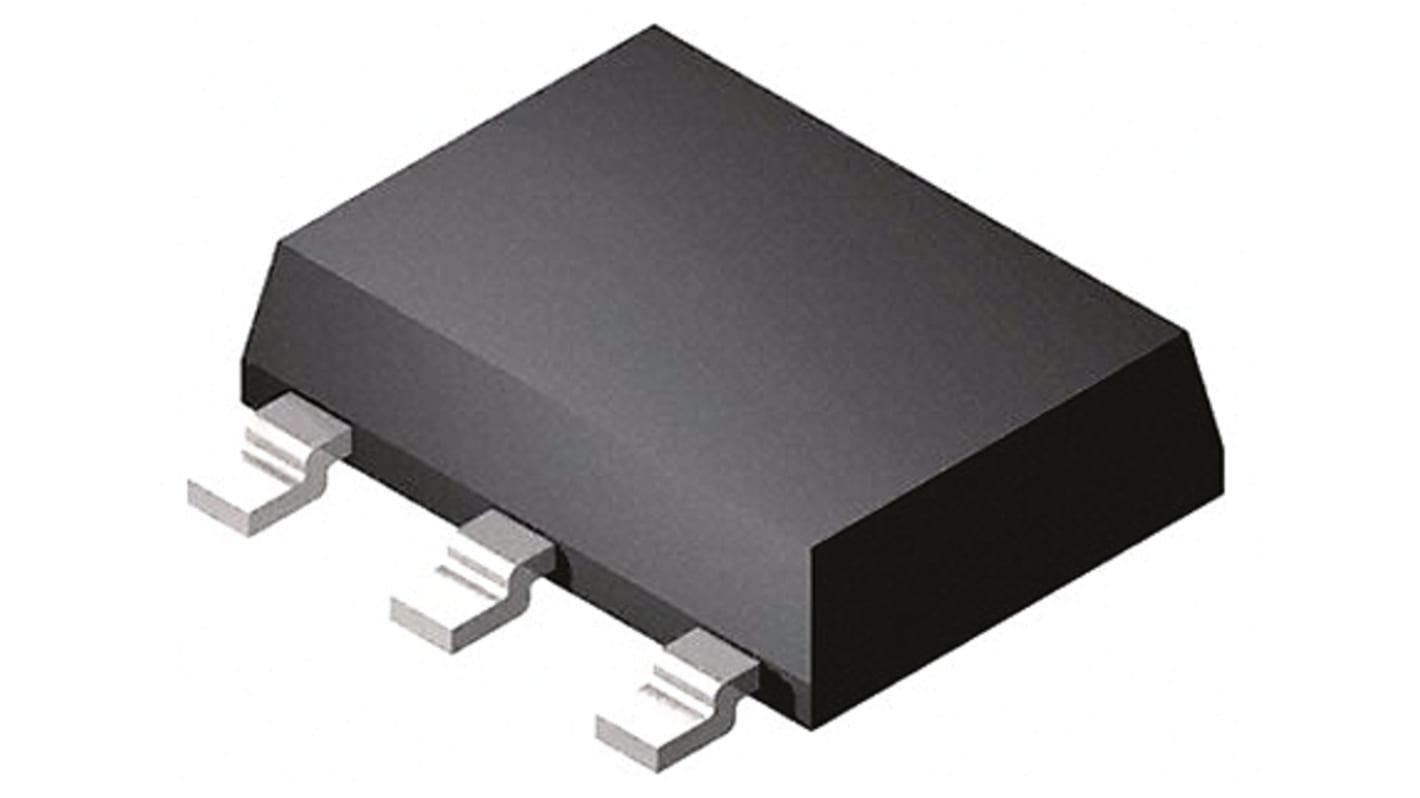

Diodes Inc P-Channel MOSFET, 260 mA, 250 V, 3-Pin SOT-223 ZVP4525GTA

Subtotal (1 reel of 1000 units)*

£249.00

(exc. VAT)

£299.00

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1000 +	£0.249	£249.00

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Channel Type	P
	Maximum Continuous Drain Current	260 mA
	Maximum Drain Source Voltage	250 V
	Package Type	SOT-223
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	18 Ω
	Channel Mode	Enhancement
	Maximum Gate Threshold Voltage	2V
	Maximum Power Dissipation	2 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	+40 V
	Number of Elements per Chip	1
	Width	3.7mm
	Length	6.7mm
	Typical Gate Charge @ Vgs	2.45 nC @ 10 V
	Transistor Material	Si
	Maximum Operating Temperature	+150 °C
	Height	1.7mm
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Channel Type P
	Maximum Continuous Drain Current 260 mA
	Maximum Drain Source Voltage 250 V
	Package Type SOT-223
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 18 Ω
	Channel Mode Enhancement
	Maximum Gate Threshold Voltage 2V
	Maximum Power Dissipation 2 W
	Transistor Configuration Single
	Maximum Gate Source Voltage +40 V
	Number of Elements per Chip 1
	Width 3.7mm
	Length 6.7mm
	Typical Gate Charge @ Vgs 2.45 nC @ 10 V
	Transistor Material Si
	Maximum Operating Temperature +150 °C
	Height 1.7mm
	Minimum Operating Temperature -55 °C

MOSFET Transistors, Diodes Inc.
