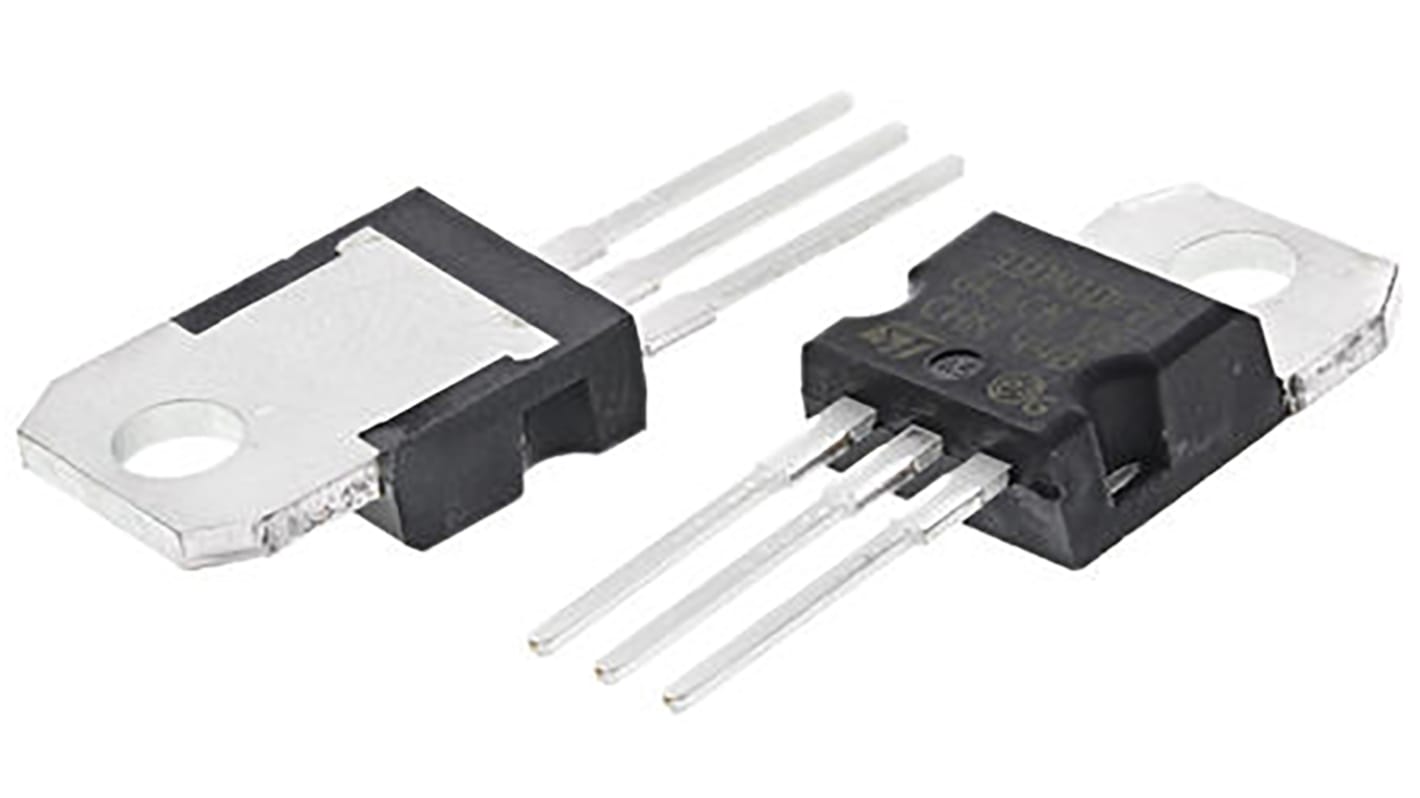

STMicroelectronics STripFET H7 N-Channel MOSFET, 180 A, 100 V, 3-Pin TO-220 STP310N10F7

View all MOSFETs
Bulk discount available

Subtotal (1 tube of 50 units)*

£136.05

(exc. VAT)

£163.25

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Tube*
50 - 50£2.721£136.05
100 - 450£2.65£132.50
500 +£2.585£129.25

*price indicative

RS Stock No.:
103-2008
Mfr. Part No.:
STP310N10F7
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Channel Type

N

Maximum Continuous Drain Current

180 A

Maximum Drain Source Voltage

100 V

Package Type

TO-220

Series

STripFET H7

Mounting Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance

2.7 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

4.5V

Minimum Gate Threshold Voltage

2.5V

Maximum Power Dissipation

315 W

Transistor Configuration

Single

Maximum Gate Source Voltage

-20 V, +20 V

Width

4.6mm

Transistor Material

Si

Typical Gate Charge @ Vgs

180 nC @ 10 V

Number of Elements per Chip

1

Maximum Operating Temperature

+175 °C

Length

10.4mm

Minimum Operating Temperature

-55 °C

Height

15.75mm

N-Channel STripFET™ H7 Series, STMicroelectronics


STripFET™ MOSFETs with a wide breakdown voltage range offer ultra-low gate charge and low on-resistance.


MOSFET Transistors, STMicroelectronics
