Vishay SIR4156LDP Type N-Channel Single MOSFETs, 25.7 A, 100 V Enhancement, 8-Pin PowerPAK
- RS Stock No.:
- 653-191
- Mfr. Part No.:
- SIR4156LDP-T1-GE3
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 1 unit)*
£0.72
(exc. VAT)
£0.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6,000 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 24 | £0.72 |
| 25 - 99 | £0.71 |
| 100 - 499 | £0.69 |
| 500 - 999 | £0.58 |
| 1000 + | £0.54 |
*price indicative
- RS Stock No.:
- 653-191
- Mfr. Part No.:
- SIR4156LDP-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Single MOSFETs | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 25.7A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | PowerPAK | |
| Series | SIR4156LDP | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.033Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 8.8nC | |
| Maximum Power Dissipation Pd | 43W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 1.72mm | |
| Length | 6.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Single MOSFETs | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 25.7A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type PowerPAK | ||
Series SIR4156LDP | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.033Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 8.8nC | ||
Maximum Power Dissipation Pd 43W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 1.72mm | ||
Length 6.15mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

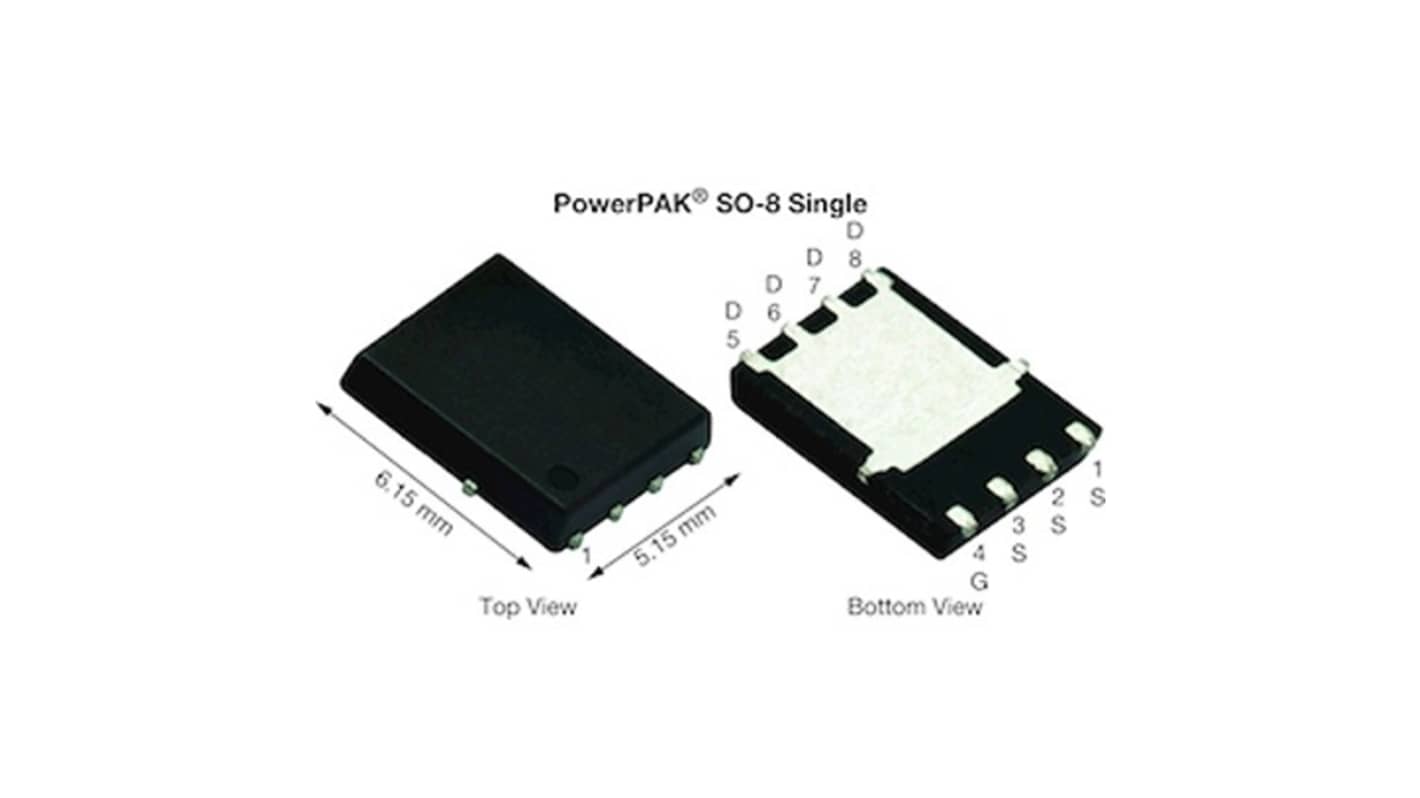

The Vishay N-channel MOSFET designed for high-efficiency switching in Compact power systems. It supports up to 100 V drain-source voltage. Packaged in PowerPAK SO-8, it utilizes TrenchFET Gen IV technology to deliver low RDS(on), fast switching, and optimized thermal performance.
Pb Free
Halogen free
RoHS compliant
