Vishay SIR5712DP Type N-Channel Single MOSFETs, 18 A, 150 V Enhancement, 8-Pin PowerPAK SIR5712DP-T1-GE3
- RS Stock No.:
- 653-110
- Mfr. Part No.:
- SIR5712DP-T1-GE3
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£1,389.00
(exc. VAT)
£1,668.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3,000 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.463 | £1,389.00 |
*price indicative
- RS Stock No.:
- 653-110
- Mfr. Part No.:
- SIR5712DP-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Single MOSFETs | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 18A | |
| Maximum Drain Source Voltage Vds | 150V | |
| Series | SIR5712DP | |
| Package Type | PowerPAK | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.0555Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 5.8nC | |
| Maximum Power Dissipation Pd | 40W | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.04mm | |
| Length | 6.15mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Single MOSFETs | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 18A | ||
Maximum Drain Source Voltage Vds 150V | ||
Series SIR5712DP | ||
Package Type PowerPAK | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.0555Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 5.8nC | ||
Maximum Power Dissipation Pd 40W | ||
Maximum Operating Temperature 150°C | ||
Height 1.04mm | ||
Length 6.15mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

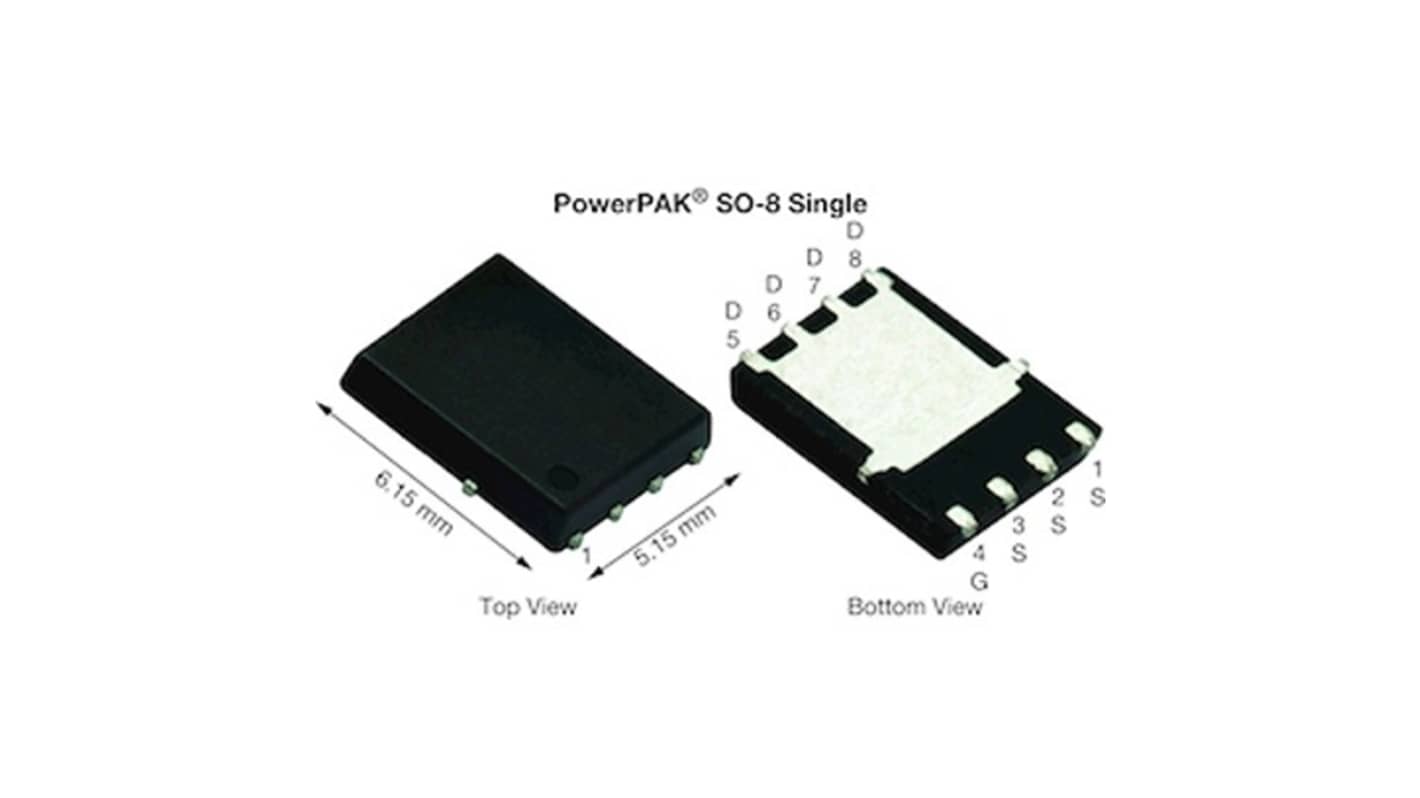

The Vishay N-channel MOSFET designed for high-efficiency switching in power-dense systems. It supports up to 150 V drain-source voltage. Packaged in PowerPAK SO-8, it utilizes TrenchFET Gen V technology to deliver low RDS(on), reduced gate charge, and excellent thermal performance.
Pb Free
Halogen free
RoHS compliant
