Vishay SQJQ14 Type N-Channel Single MOSFETs, 345 A, 40 V Enhancement, 3-Pin PowerPAK SQJQ142ER-T1_GE3
- RS Stock No.:
- 653-073
- Mfr. Part No.:
- SQJQ142ER-T1_GE3
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£3,756.00
(exc. VAT)
£4,506.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £1.252 | £3,756.00 |
*price indicative
- RS Stock No.:
- 653-073
- Mfr. Part No.:
- SQJQ142ER-T1_GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Single MOSFETs | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 345A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | PowerPAK | |
| Series | SQJQ14 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.00124Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 277W | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Typical Gate Charge Qg @ Vgs | 92nC | |
| Forward Voltage Vf | 1.1V | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.6mm | |
| Length | 10.42mm | |
| Width | 8 mm | |
| Standards/Approvals | AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Single MOSFETs | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 345A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type PowerPAK | ||
Series SQJQ14 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.00124Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 277W | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Typical Gate Charge Qg @ Vgs 92nC | ||
Forward Voltage Vf 1.1V | ||
Maximum Operating Temperature 175°C | ||
Height 1.6mm | ||
Length 10.42mm | ||
Width 8 mm | ||
Standards/Approvals AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN

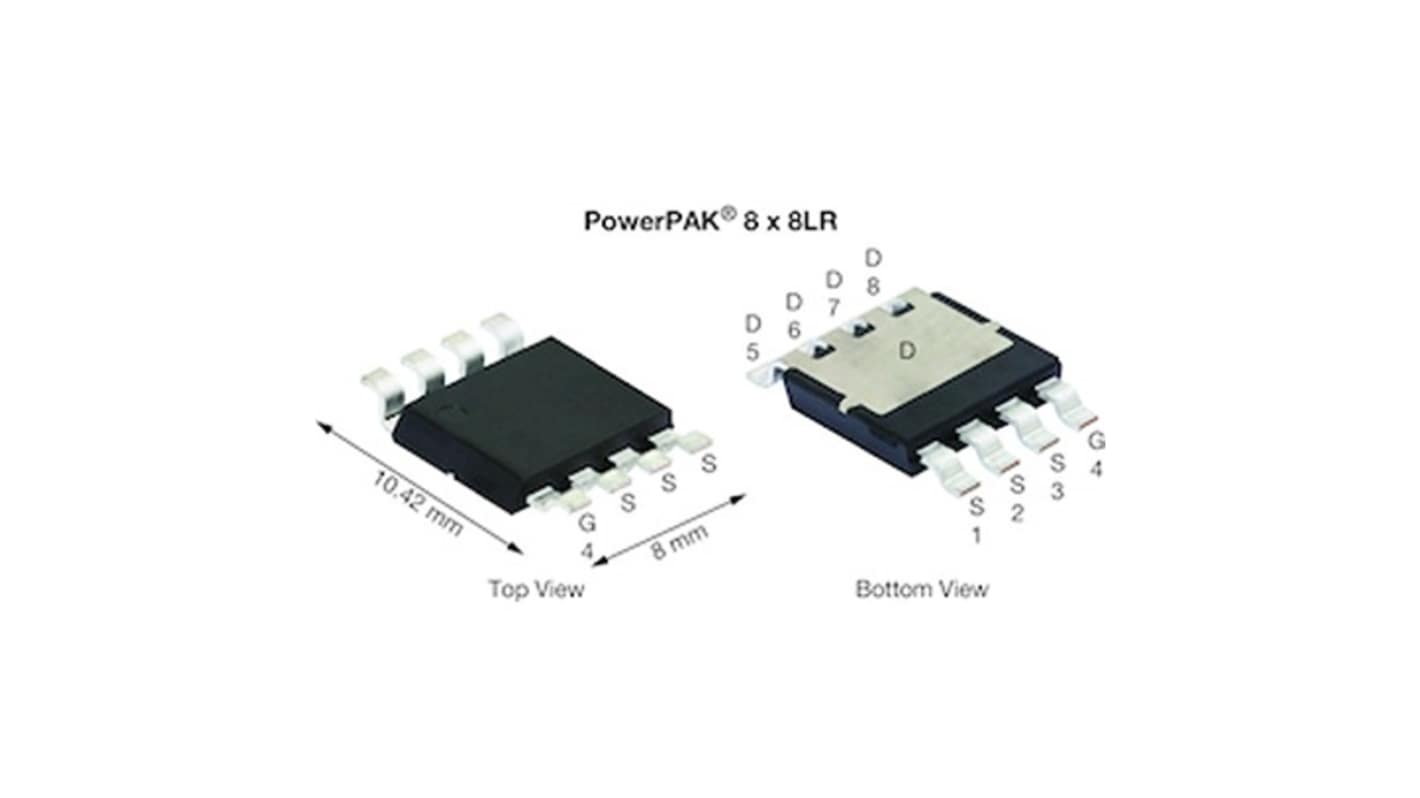

The Vishay automotive-grade N-channel MOSFET designed for high-efficiency switching in Compact power systems. It supports up to 40 V drain-source voltage and operates reliably at junction temperatures up to 175 °C. Housed in a PowerPAK 8x8LR package, it utilizes TrenchFET Gen IV technology for enhanced thermal and electrical performance.
AEC Q101 qualified
Pb Free
Halogen free
RoHS compliant
