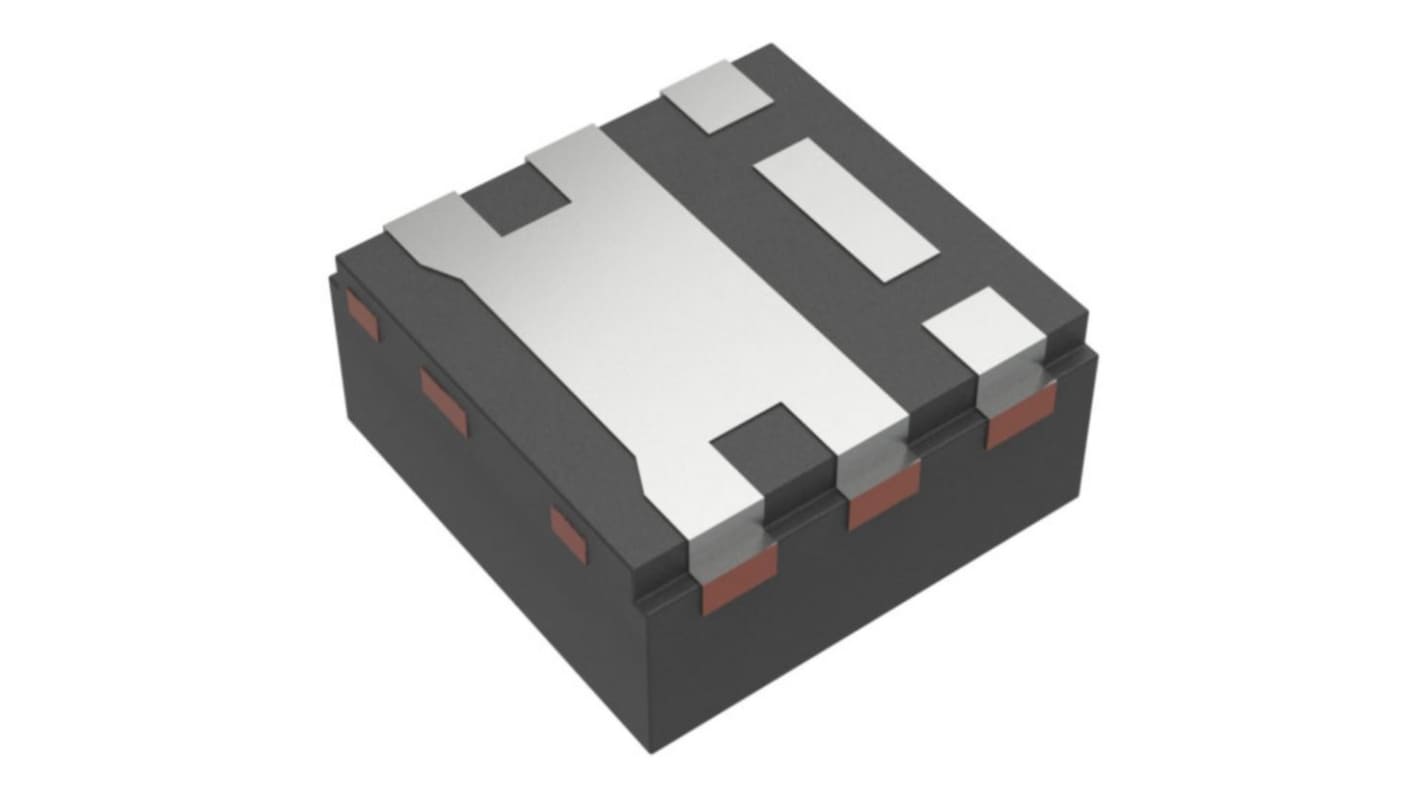

ROHM RV4 Type P-Channel Single MOSFETs, -20 V Enhancement, 8-Pin DFN1616-6W RV4C060ZPHZGTCR1
- RS Stock No.:
- 646-539
- Mfr. Part No.:
- RV4C060ZPHZGTCR1
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£2.82
(exc. VAT)
£3.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.282 | £2.82 |
| 100 - 240 | £0.248 | £2.48 |
| 250 - 990 | £0.224 | £2.24 |
| 1000 - 4990 | £0.181 | £1.81 |
| 5000 + | £0.176 | £1.76 |
*price indicative
- RS Stock No.:
- 646-539
- Mfr. Part No.:
- RV4C060ZPHZGTCR1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Channel Type | Type P | |
| Product Type | Single MOSFETs | |
| Maximum Drain Source Voltage Vds | -20V | |
| Series | RV4 | |
| Package Type | DFN1616-6W | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 70mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 12nC | |
| Maximum Power Dissipation Pd | 1.5W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 1.7mm | |
| Standards/Approvals | RoHS | |
| Height | 0.8mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Channel Type Type P | ||
Product Type Single MOSFETs | ||
Maximum Drain Source Voltage Vds -20V | ||
Series RV4 | ||
Package Type DFN1616-6W | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 70mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 12nC | ||
Maximum Power Dissipation Pd 1.5W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Length 1.7mm | ||
Standards/Approvals RoHS | ||
Height 0.8mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM P channel 20 volt 6 ampere small signal metal oxide semiconductor field effect transistor is one hundred percent unclamped inductive switching tested with wet table flank for automated optical inspection and one hundred thirty micrometer electrode part guarantee.
Low on resistance
Small high power package
Low voltage drive(1.5V)
