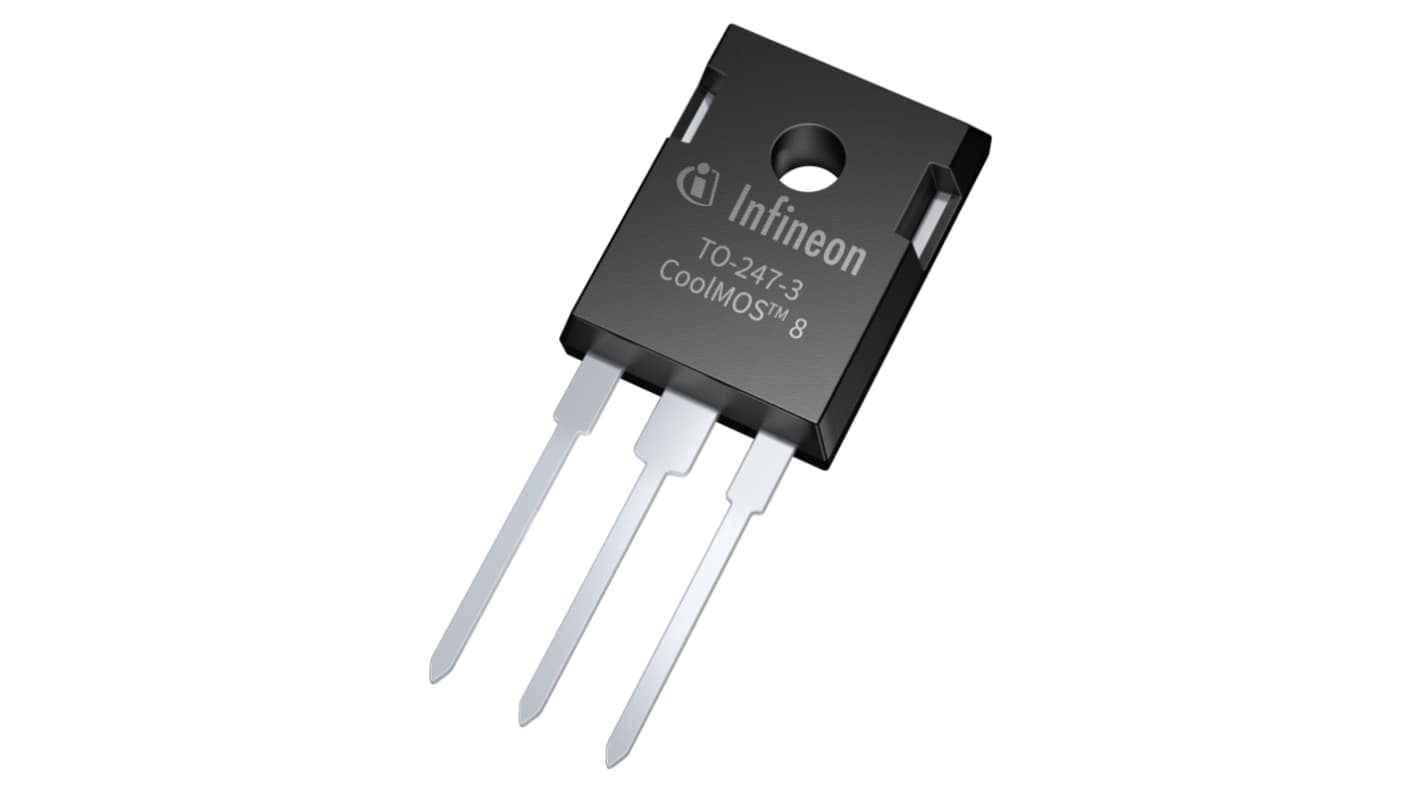

Infineon IPW Type N-Channel Power Transistor, 123 A, 600 V Enhancement, 4-Pin PG-TO-247 IPW60R016CM8XKSA1
- RS Stock No.:
- 349-265
- Mfr. Part No.:
- IPW60R016CM8XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£13.71
(exc. VAT)
£16.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 240 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £13.71 |
| 10 - 99 | £12.34 |
| 100 + | £11.38 |
*price indicative
- RS Stock No.:
- 349-265
- Mfr. Part No.:
- IPW60R016CM8XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | Power Transistor | |
| Maximum Continuous Drain Current Id | 123A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Package Type | PG-TO-247 | |
| Series | IPW | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 16mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 0.9V | |
| Typical Gate Charge Qg @ Vgs | 171nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 521W | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS, JEDEC | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type Power Transistor | ||
Maximum Continuous Drain Current Id 123A | ||
Maximum Drain Source Voltage Vds 600V | ||
Package Type PG-TO-247 | ||
Series IPW | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 16mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 0.9V | ||
Typical Gate Charge Qg @ Vgs 171nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 521W | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS, JEDEC | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Infineon CoolMOS 8th generation platform is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction(SJ) principle and pioneered by Infineon Technologies. The 600V CoolMOS CM8 series is the successor to the CoolMOS 7. It combines the benefits of a fast switching SJ MOSFET with excellent ease of use, e.g low ringing tendency, implemented fast body diode for all products with outstanding robustness against hard commutation and excellent ESD capability. Furthermore, extremely low switching and conduction losses of CM8, make switching applications even more efficient.
Suitable for hard and soft switching topologies
Ease of use and fast design in through low ringing tendency
Simplified thermal management thanks to our advanced die attach technique
Suitable for a wide variety of applications and power ranges
Increased power density solutions enabled by using products with smaller footprint
