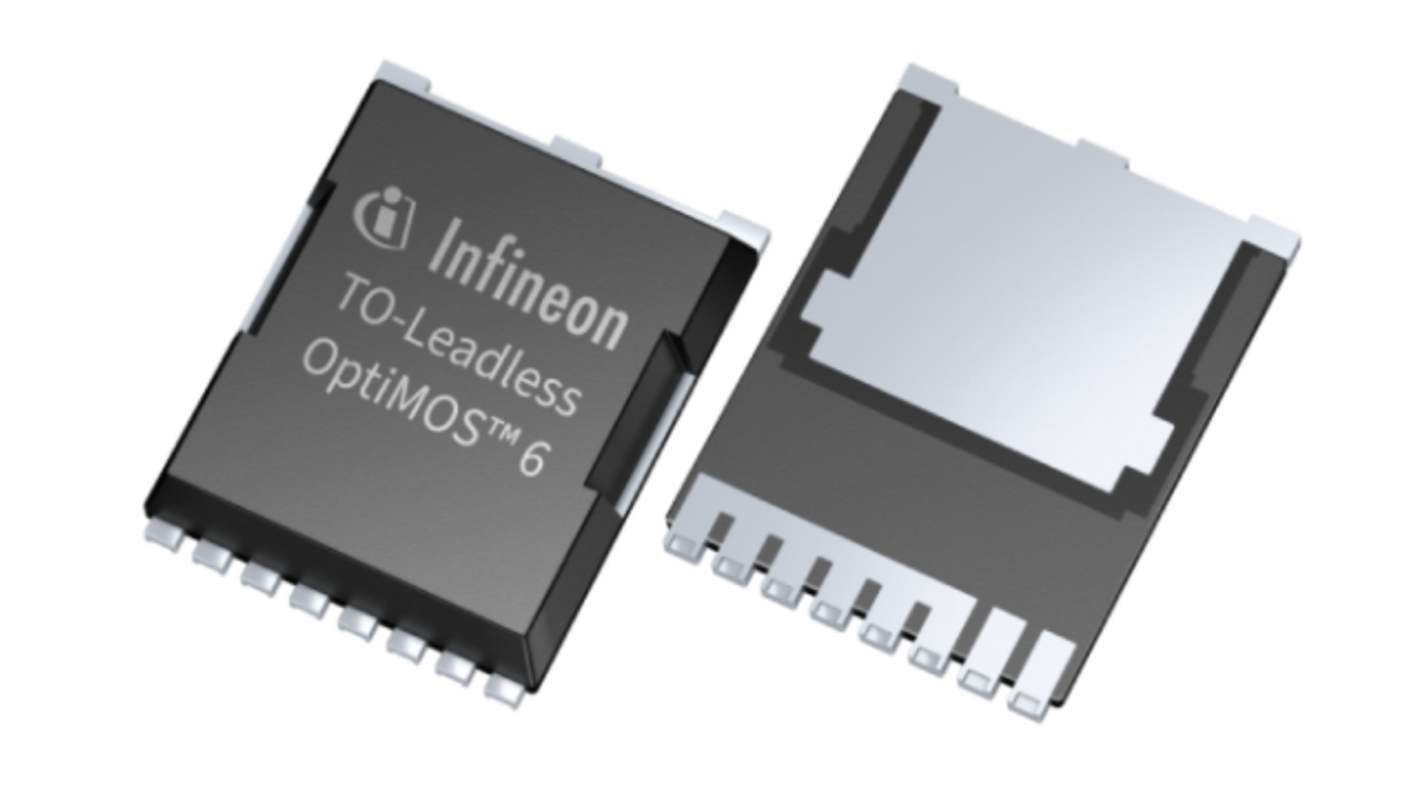

Infineon IPT N-Channel MOSFET, 297 A, 135 V, 8-Pin PG-HSOF-8 IPT020N13NM6ATMA1
- RS Stock No.:
- 349-120
- Mfr. Part No.:
- IPT020N13NM6ATMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£9.46
(exc. VAT)
£11.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £4.73 | £9.46 |
| 20 - 198 | £4.26 | £8.52 |
| 200 - 998 | £3.925 | £7.85 |
| 1000 - 1998 | £3.645 | £7.29 |
| 2000 + | £3.265 | £6.53 |
*price indicative
- RS Stock No.:
- 349-120
- Mfr. Part No.:
- IPT020N13NM6ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 297 A | |
| Maximum Drain Source Voltage | 135 V | |
| Series | IPT | |
| Package Type | PG-HSOF-8 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Channel Mode | Enhancement | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 297 A | ||
Maximum Drain Source Voltage 135 V | ||
Series IPT | ||
Package Type PG-HSOF-8 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- MY
The Infineon OptiMOS 6 Power Transistor is an N-channel, normal level MOSFET designed for efficient power switching applications. It offers very low on-resistance (RDS(on)), reducing conduction losses and improving overall performance. With an excellent gate charge x RDS(on) product (FOM), it ensures superior switching efficiency. The MOSFET also features very low reverse recovery charge (Qrr) for better efficiency during switching events.
Optimized for motor drives and battery powered applications
Pb free lead plating
RoHS compliant
Halogen free according to IEC61249-2-21
MSL 1 classified according to J-STD-020
Pb free lead plating
RoHS compliant
Halogen free according to IEC61249-2-21
MSL 1 classified according to J-STD-020
