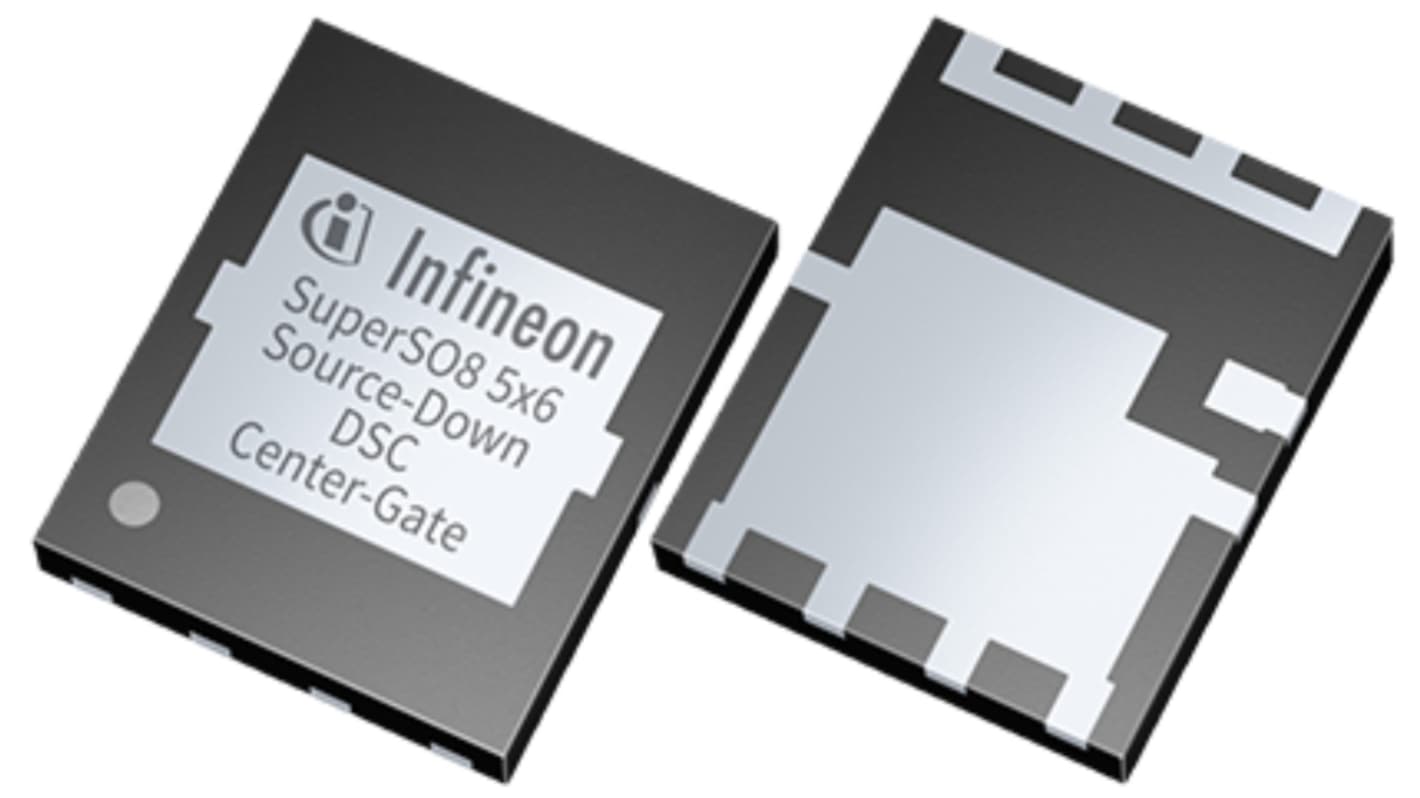

Infineon OptiMOS 6 N-Channel MOSFET, 611 A, 40 V, 9-Pin PG-WHTFN-9 IQDH45N04LM6CGSCATMA1
- RS Stock No.:
- 348-877
- Mfr. Part No.:
- IQDH45N04LM6CGSCATMA1
- Brand:
- Infineon
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 348-877
- Mfr. Part No.:
- IQDH45N04LM6CGSCATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 611 A | |
| Maximum Drain Source Voltage | 40 V | |
| Series | OptiMOS 6 | |
| Package Type | PG-WHTFN-9 | |
| Mounting Type | Surface Mount | |
| Pin Count | 9 | |
| Channel Mode | Enhancement | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 611 A | ||
Maximum Drain Source Voltage 40 V | ||
Series OptiMOS 6 | ||
Package Type PG-WHTFN-9 | ||
Mounting Type Surface Mount | ||
Pin Count 9 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- MY
The Infineon MOSFET comes with a low RDS(on) of 0.45 mOhm combined with outstanding thermal performance for easy power loss management. The Centre-Gate footprint is optimized for parallelization.
Reduced voltage overshoot
Increased maximum current capability
Fast switching
Increased maximum current capability
Fast switching
