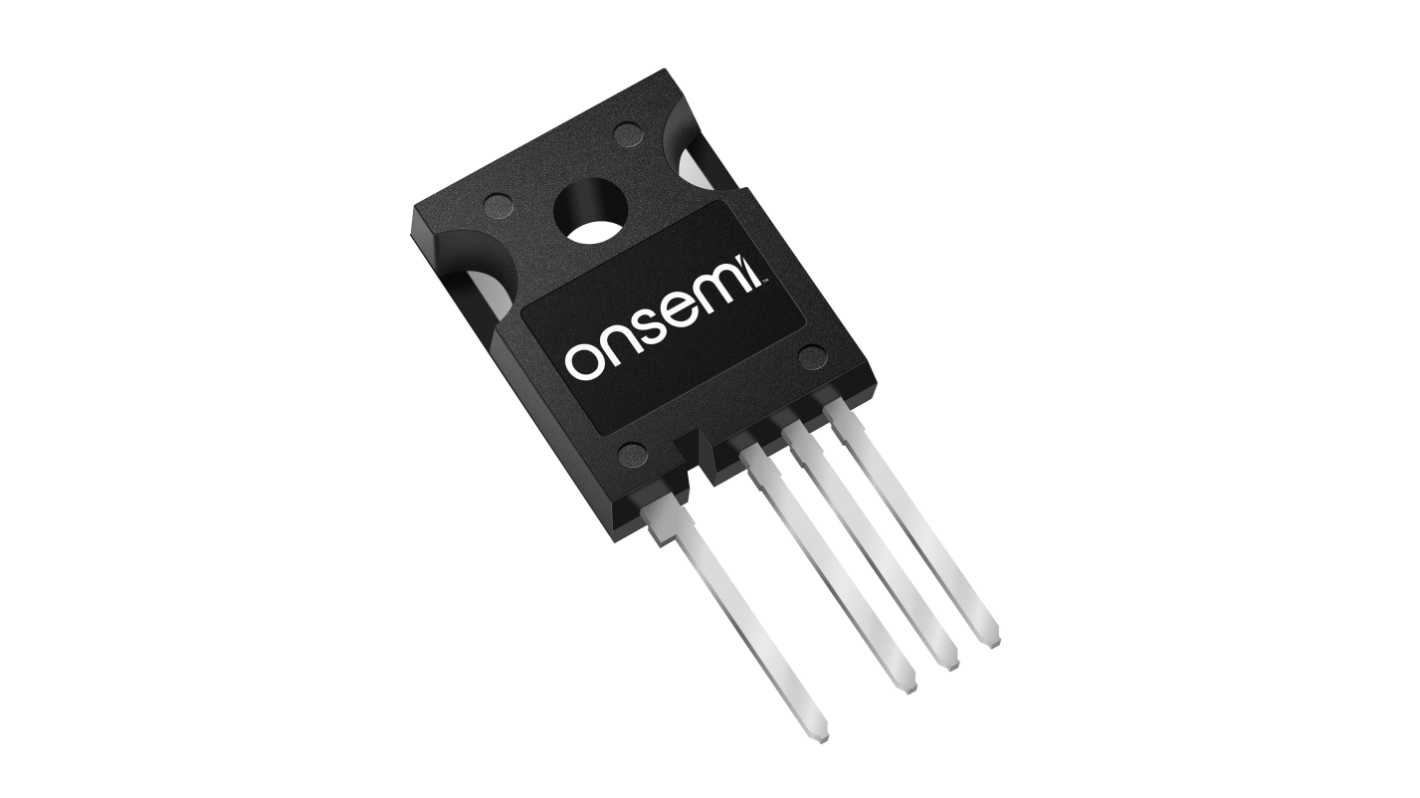

onsemi NTH SiC N-Channel MOSFET, 140 A, 750 V, 7-Pin TO-247-4L NTH4L018N075SC1
- RS Stock No.:
- 277-041
- Mfr. Part No.:
- NTH4L018N075SC1
- Brand:
- onsemi
Bulk discount available
Subtotal (1 unit)*
£17.90
(exc. VAT)
£21.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 October 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £17.90 |
10 - 99 | £16.11 |
100 + | £14.86 |
*price indicative
- RS Stock No.:
- 277-041
- Mfr. Part No.:
- NTH4L018N075SC1
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Channel Type | N | |
Maximum Continuous Drain Current | 140 A | |
Maximum Drain Source Voltage | 750 V | |
Series | NTH | |
Package Type | TO-247-4L | |
Mounting Type | Through Hole | |
Pin Count | 7 | |
Channel Mode | Enhancement | |
Number of Elements per Chip | 1 | |
Transistor Material | SiC | |
Select all | ||
---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 140 A | ||
Maximum Drain Source Voltage 750 V | ||
Series NTH | ||
Package Type TO-247-4L | ||
Mounting Type Through Hole | ||
Pin Count 7 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
Transistor Material SiC | ||
- COO (Country of Origin):
- CN
The ON Semiconductor SiC MOSFET uses a completely new technology that provide superior switching performance and higher reliability compared to Silicon. In addition, the low ON resistance and compact chip size ensure low capacitance and gate charge. Consequently, system benefits include highest efficiency, faster operation frequency, increased power density, reduced EMI, and reduced system size.
Ultra low gate charge
High speed switching with low capacitance
100% avalanche tested
Device is Halide Free and RoHS compliant
High speed switching with low capacitance
100% avalanche tested
Device is Halide Free and RoHS compliant
