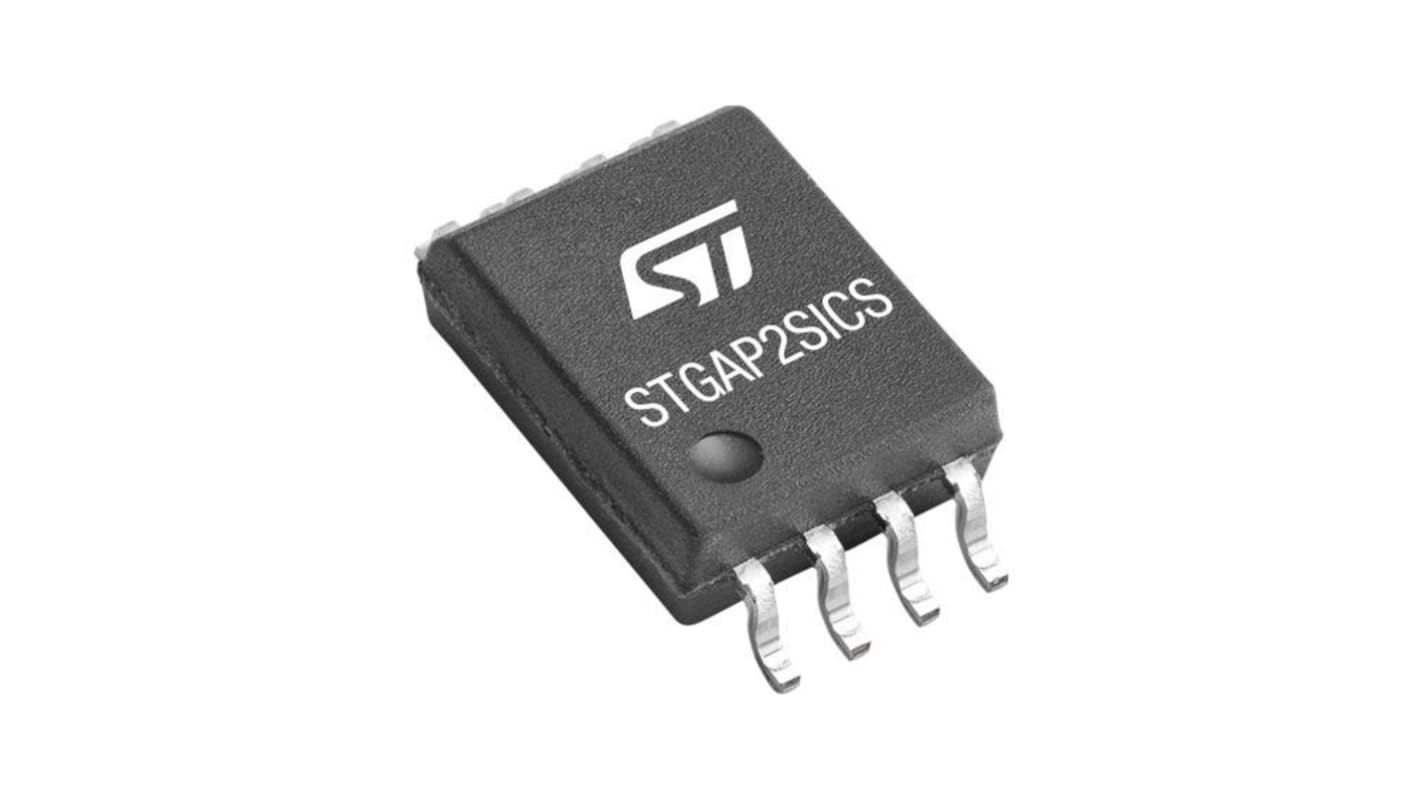

STMicroelectronics STGAP2 SiC MOSFET, 4 A, 1700 V, 8-Pin SO-8 STGAP2SICSNC
- RS Stock No.:
- 152-179
- Mfr. Part No.:
- STGAP2SICSNC
- Brand:
- STMicroelectronics
Subtotal (1 tube of 2000 units)*
£2,598.00
(exc. VAT)
£3,118.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 2000 + | £1.299 | £2,598.00 |
*price indicative
- RS Stock No.:
- 152-179
- Mfr. Part No.:
- STGAP2SICSNC
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Maximum Continuous Drain Current | 4 A | |
| Maximum Drain Source Voltage | 1700 V | |
| Package Type | SO-8 | |
| Series | STGAP2 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Transistor Material | SiC | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Drain Current 4 A | ||
Maximum Drain Source Voltage 1700 V | ||
Package Type SO-8 | ||
Series STGAP2 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Transistor Material SiC | ||
- COO (Country of Origin):
- TW
The STMicroelectronics single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry. The gate driver is characterized by 4 A capability and rail-to-rail outputs, making the device also suitable for mid and high power applications such as power conversion and motor driver inverters in industrial applications.
Separate sink and source option for easy gate driving configuration
4 A Miller CLAMP dedicated pin option
UVLO function
Gate driving voltage up to 26 V
4 A Miller CLAMP dedicated pin option
UVLO function
Gate driving voltage up to 26 V
