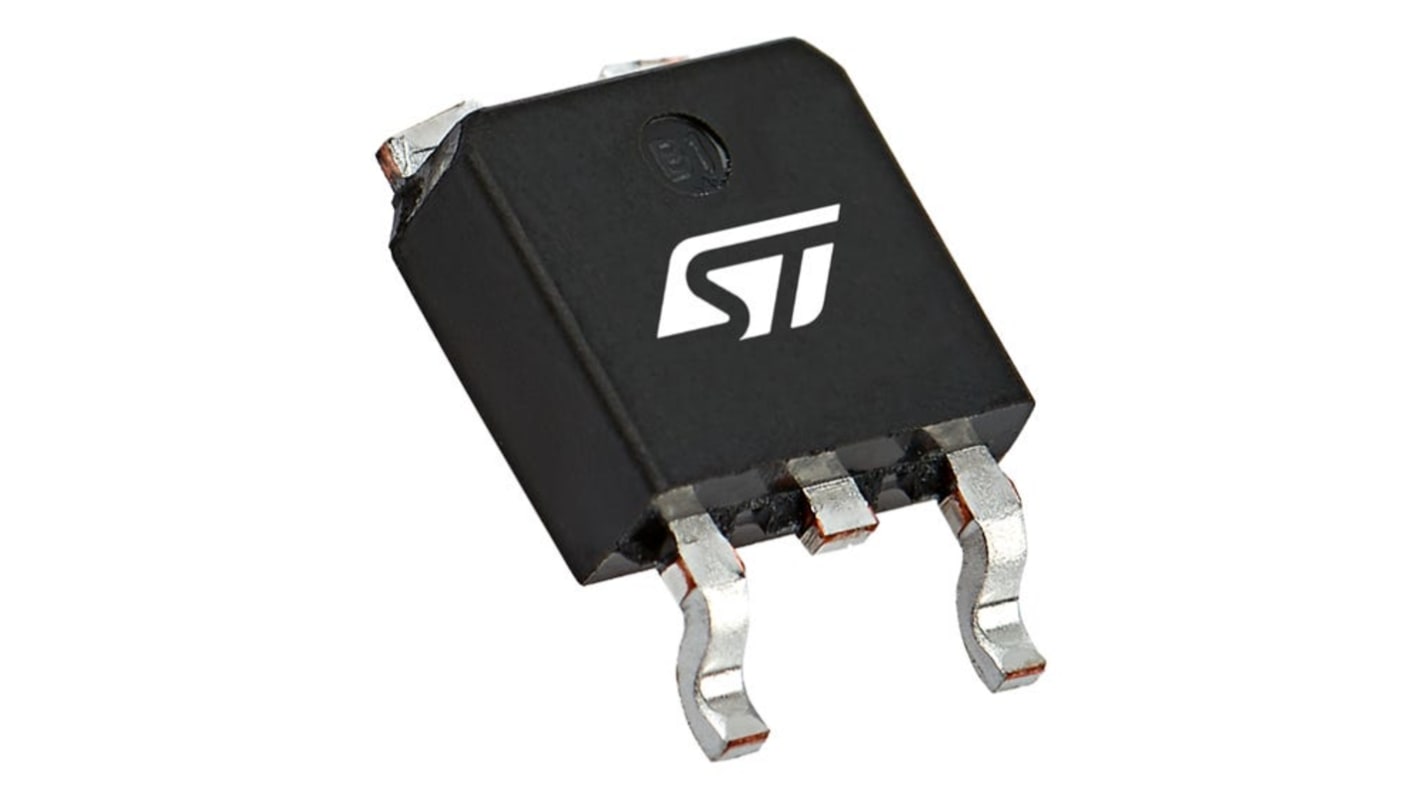

STMicroelectronics MDmesh K5 Type N-Channel MOSFET, 9 A, 950 V Enhancement, 3-Pin TO-252 STD6N95K5
- RS Stock No.:
- 151-926
- Mfr. Part No.:
- STD6N95K5
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£12.20
(exc. VAT)
£14.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,480 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £2.44 | £12.20 |
| 50 - 95 | £2.316 | £11.58 |
| 100 - 495 | £2.148 | £10.74 |
| 500 - 995 | £1.974 | £9.87 |
| 1000 + | £1.902 | £9.51 |
*price indicative
- RS Stock No.:
- 151-926
- Mfr. Part No.:
- STD6N95K5
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 9A | |
| Maximum Drain Source Voltage Vds | 950V | |
| Series | MDmesh K5 | |
| Package Type | TO-252 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.25Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 9.6nC | |
| Forward Voltage Vf | 1.6V | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.4mm | |
| Length | 10.1mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 9A | ||
Maximum Drain Source Voltage Vds 950V | ||
Series MDmesh K5 | ||
Package Type TO-252 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.25Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 9.6nC | ||
Forward Voltage Vf 1.6V | ||
Maximum Operating Temperature 150°C | ||
Height 2.4mm | ||
Length 10.1mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The STMicroelectronics Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on resistance and ultra low gate charge for applications requiring superior power density and high efficiency.
Industry’s lowest RDS(on) x area
Industry’s best FoM
Ultra low gate charge
100% avalanche tested
Zener protected
