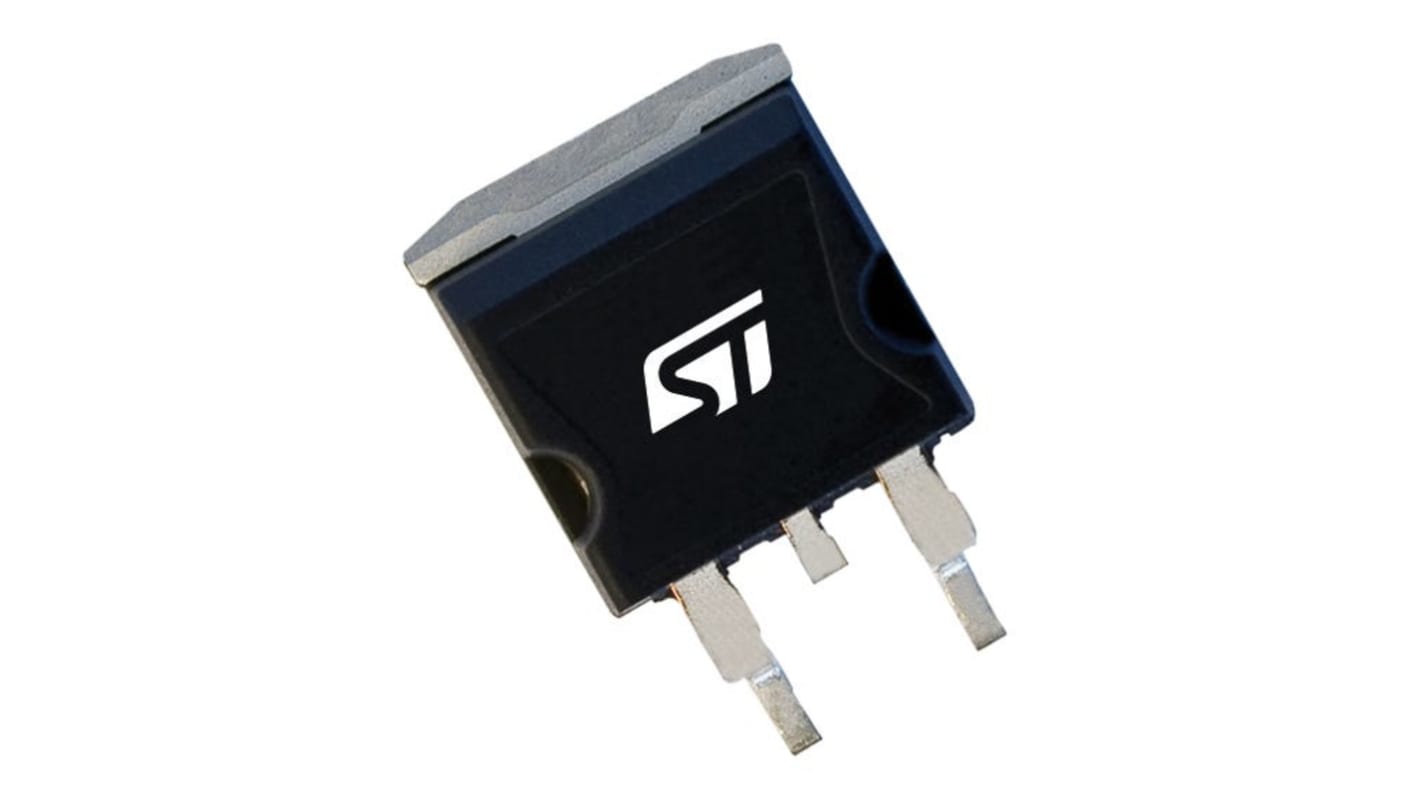

STMicroelectronics MDmesh K5 Type N-Channel MOSFET, 1.5 A, 1200 V Enhancement, 3-Pin H2PAK-2 STH2N120K5-2AG

View all MOSFETs
Bulk discount available

Subtotal (1 tape of 2 units)*

£7.68

(exc. VAT)

£9.22

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 802 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
2 - 18£3.84£7.68
20 - 198£3.455£6.91
200 +£3.18£6.36

*price indicative

Packaging Options:
RS Stock No.:
151-438
Mfr. Part No.:
STH2N120K5-2AG
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

1.5A

Maximum Drain Source Voltage Vds

1200V

Package Type

H2PAK-2

Series

MDmesh K5

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

10Ω

Channel Mode

Enhancement

Forward Voltage Vf

1.5V

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

±30 V

Typical Gate Charge Qg @ Vgs

5.3nC

Maximum Operating Temperature

150°C

Height

4.7mm

Standards/Approvals

RoHS

Width

10.4 mm

Length

15.8mm

Automotive Standard

No

COO (Country of Origin):
CN
The STMicroelectronics Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on resistance and ultra low gate charge for applications requiring superior power density and high efficiency.

AEC Q101 qualified

Industry’s lowest RDS(on) x area

Industry’s best FoM

Ultra low gate charge

100% avalanche tested
